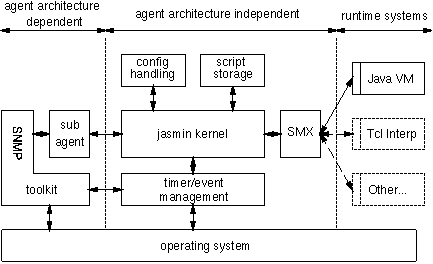

The architecture of the Jasmin Script MIB implementation is shown in the following figure.

Our first prototype implementation is not freely available since it is based on a commercial SNMP toolkit. Hence, the Jasmin implementation has been ported to the free NET-SNMP (formerly UCD-SNMP) code.
