#include <Thread.h>

Inherited by ibrcommon::DetachedThread [protected], and ibrcommon::JoinableThread [protected].

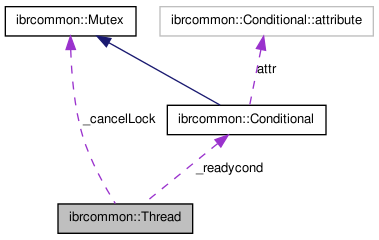

Collaboration diagram for ibrcommon::Thread:

Classes
class	CancelProtector
Public Member Functions
virtual void	run (void)=0
virtual void	finally (void)
virtual	~Thread ()
void	detach (void)
bool	operator== (const ibrcommon::Thread &other)
void	ready ()
void	waitready ()
Static Public Member Functions
static void	yield (void)
static void	sleep (size_t timeout)
static void	exit (void)
static void	concurrency (int level)
static int	enableCancel (int &state)
static int	disableCancel (int &state)
static int	restoreCancel (const int &state)
Public Attributes
const bool	__delete_on_exit
Protected Member Functions
	Thread (size_t stack=DEFAULT_STACKSIZE, bool delete_on_exit=false)
int	kill (int sig)
void	cancel () throw (ThreadException)
virtual bool	__cancellation ()
int	setCancel (bool val)
Static Protected Member Functions
static void	testcancel ()
static bool	equal (pthread_t thread1, pthread_t thread2)
static void *	exec_thread (void *obj)
Protected Attributes
pthread_t	tid
size_t	stack
int	priority
pthread_attr_t	attr
ibrcommon::Conditional	_readycond
bool	_ready

Detailed Description

An abstract class for defining classes that operate as a thread. A derived thread class has a run method that is invoked with the newly created thread context, and can use the derived object to store all member data that needs to be associated with that context. This means the derived object can safely hold thread-specific data that is managed with the life of the object, rather than having to use the clumsy thread-specific data management and access functions found in thread support libraries.

Author:: David Sugar <dyfet@gnutelephony.org>

Definition at line 41 of file Thread.h.

Constructor & Destructor Documentation

ibrcommon::Thread::Thread	(	size_t	stack = `DEFAULT_STACKSIZE`,
		bool	delete_on_exit = `false`
	)			`[protected]`

Create a thread object that will have a preset stack size. If 0 is used, then the stack size is os defined/default.

Parameters:

stack

size to use or 0 for default.

Definition at line 63 of file Thread.cpp.

References attr.

ibrcommon::Thread::~Thread ( ) [virtual]

Destroy thread object, thread-specific data, and execution context.

Definition at line 106 of file Thread.cpp.

References attr.

Member Function Documentation

virtual bool ibrcommon::Thread::__cancellation ( ) [inline, protected, virtual]

Reimplemented in ibrcommon::Timer, ibrcommon::SimpleTimer, dtn::daemon::IndependentComponent, dtn::core::SQLiteBundleStorage, dtn::net::GenericServer< T >, dtn::net::HTTPConvergenceLayer, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, and dtn::net::GenericServer< TCPConvergenceLayer::TCPConnection >.

Definition at line 144 of file Thread.h.

Referenced by cancel().

void ibrcommon::Thread::cancel ( ) throw (ThreadException) [protected]

Cancel the running thread context.

Definition at line 127 of file Thread.cpp.

References __cancellation(), kill(), and tid.

Referenced by ibrcommon::DetachedThread::stop(), and ibrcommon::JoinableThread::stop().

Here is the call graph for this function:

void ibrcommon::Thread::concurrency ( int level ) [static]

Set concurrency level of process. This is essentially a portable wrapper for pthread_setconcurrency.

Definition at line 85 of file Thread.cpp.

void ibrcommon::Thread::detach ( void )

Definition at line 111 of file Thread.cpp.

References tid.

int ibrcommon::Thread::disableCancel ( int & state ) [static]

Definition at line 149 of file Thread.cpp.

Referenced by ibrcommon::Thread::CancelProtector::CancelProtector().

int ibrcommon::Thread::enableCancel ( int & state ) [static]

Definition at line 144 of file Thread.cpp.

Referenced by ibrcommon::Thread::CancelProtector::CancelProtector().

bool ibrcommon::Thread::equal	(	pthread_t	thread1,
		pthread_t	thread2
	)			`[static, protected]`

Determine if two thread identifiers refer to the same thread.

Parameters:

	thread1	to test.
	thread2	to test.

Returns:: true if both are the same context.

Definition at line 173 of file Thread.cpp.

Referenced by ibrcommon::JoinableThread::join(), and operator==().

void * ibrcommon::Thread::exec_thread ( void * obj ) [static, protected]

static execute thread method

Definition at line 36 of file Thread.cpp.

References exit(), IBRCOMMON_LOGGER_DEBUG, ready(), and run().

Referenced by ibrcommon::DetachedThread::start(), and ibrcommon::JoinableThread::start().

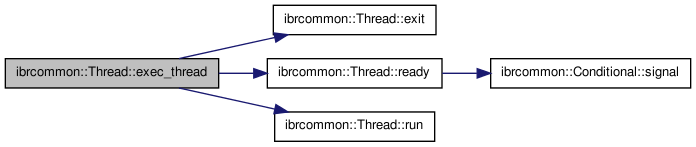

Here is the call graph for this function:

void ibrcommon::Thread::exit ( void ) [static]

Exit the thread context.

Reimplemented in ibrcommon::DetachedThread.

Definition at line 116 of file Thread.cpp.

Referenced by exec_thread(), and ibrcommon::JoinableThread::join().

virtual void ibrcommon::Thread::finally ( void ) [inline, virtual]

Reimplemented in dtn::daemon::ClientHandler, and dtn::net::TCPConvergenceLayer::TCPConnection.

Definition at line 84 of file Thread.h.

Referenced by ibrcommon::ThreadFinalizer::~ThreadFinalizer().

int ibrcommon::Thread::kill ( int sig ) [protected]

Definition at line 121 of file Thread.cpp.

References tid.

Referenced by cancel().

bool ibrcommon::Thread::operator== ( const ibrcommon::Thread & other ) [inline]

Determine if two thread identifiers refer to the same thread.

Parameters:

other

The thread to compare.

Returns:: True, if both threads are the same.

Definition at line 109 of file Thread.h.

References equal(), and tid.

Here is the call graph for this function:

void ibrcommon::Thread::ready ( )

Indicates that the run() method is up

Definition at line 178 of file Thread.cpp.

References _ready, _readycond, and ibrcommon::Conditional::signal().

Referenced by exec_thread().

Here is the call graph for this function:

int ibrcommon::Thread::restoreCancel ( const int & state ) [static]

Definition at line 154 of file Thread.cpp.

Referenced by ibrcommon::Thread::CancelProtector::~CancelProtector().

virtual void ibrcommon::Thread::run ( void ) [pure virtual]

Abstract interface for thread context run method.

Implemented in ibrcommon::Timer, ibrcommon::SimpleTimer, dtn::daemon::ClientHandler, dtn::daemon::IndependentComponent, dtn::core::SQLiteBundleStorage, dtn::net::TCPConvergenceLayer::TCPConnection, dtn::routing::FloodRoutingExtension, and dtn::routing::NeighborRoutingExtension.

Referenced by exec_thread().

int ibrcommon::Thread::setCancel ( bool val ) [protected]

Definition at line 159 of file Thread.cpp.

void ibrcommon::Thread::sleep ( size_t timeout ) [static]

Sleep current thread for a specified time period.

Parameters:

timeout

to sleep for in milliseconds.

Definition at line 92 of file Thread.cpp.

void ibrcommon::Thread::testcancel ( ) [static, protected]

Definition at line 80 of file Thread.cpp.

void ibrcommon::Thread::waitready ( )

Definition at line 185 of file Thread.cpp.

References _ready, _readycond, and ibrcommon::Conditional::wait().

Here is the call graph for this function:

void ibrcommon::Thread::yield ( void ) [static]

Yield execution context of the current thread. This is a static and may be used anywhere.

Definition at line 69 of file Thread.cpp.

Referenced by dtn::net::UDPConvergenceLayer::componentRun(), dtn::net::LOWPANConvergenceLayer::componentRun(), dtn::net::IPNDAgent::componentRun(), dtn::net::HTTPConvergenceLayer::componentRun(), dtn::net::GenericServer< TCPConvergenceLayer::TCPConnection >::componentRun(), dtn::core::SimpleBundleStorage::componentRun(), dtn::daemon::ApiServer::componentRun(), ibrcommon::SimpleTimer::run(), ibrcommon::Timer::run(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::EpidemicRoutingExtension::run(), dtn::net::TCPConvergenceLayer::TCPConnection::run(), and dtn::daemon::ClientHandler::run().

Member Data Documentation

const bool ibrcommon::Thread::__delete_on_exit

Definition at line 65 of file Thread.h.

Referenced by ibrcommon::ThreadFinalizer::~ThreadFinalizer().

bool ibrcommon::Thread::_ready [protected]

Definition at line 55 of file Thread.h.

Referenced by ready(), and waitready().

ibrcommon::Conditional ibrcommon::Thread::_readycond [protected]

Definition at line 54 of file Thread.h.

Referenced by ready(), and waitready().

pthread_attr_t ibrcommon::Thread::attr [protected]

Definition at line 52 of file Thread.h.

Referenced by Thread(), and ~Thread().

int ibrcommon::Thread::priority [protected]

Definition at line 51 of file Thread.h.

size_t ibrcommon::Thread::stack [protected]

Definition at line 50 of file Thread.h.

Referenced by ibrcommon::DetachedThread::DetachedThread().

pthread_t ibrcommon::Thread::tid [protected]

Definition at line 49 of file Thread.h.

Referenced by cancel(), detach(), ibrcommon::JoinableThread::join(), kill(), and operator==().

The documentation for this class was generated from the following files:

ibrcommon/ibrcommon/thread/Thread.h
ibrcommon/ibrcommon/thread/Thread.cpp
