dtn::core::BundleCore Class Reference

#include <BundleCore.h>

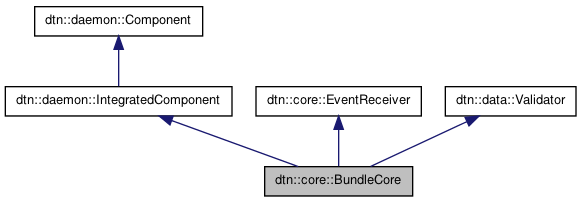

Inheritance diagram for dtn::core::BundleCore:
Inheritance graph
[legend]

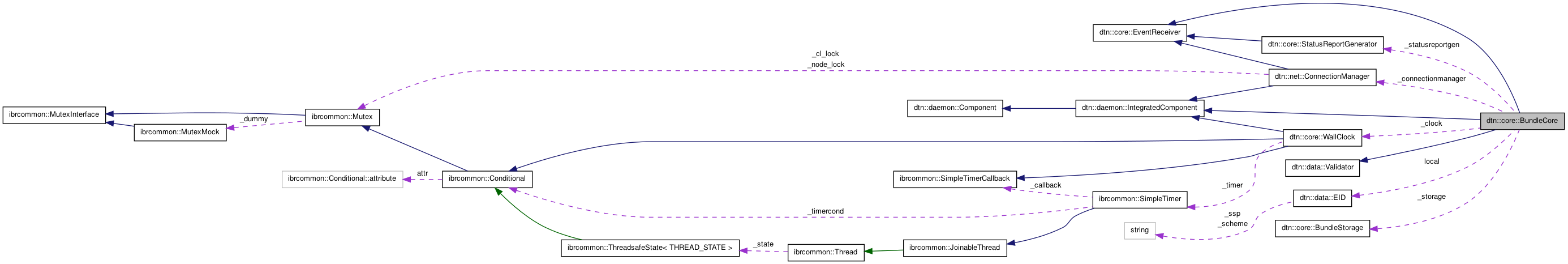

Collaboration diagram for dtn::core::BundleCore:
Collaboration graph
[legend]

List of all members.

Public Member Functions

WallClock & getClock ()
void setStorage (dtn::core::BundleStorage *storage)
dtn::core::BundleStorage & getStorage ()
void transferTo (const dtn::data::EID &destination, const dtn::data::BundleID &bundle)
void addConvergenceLayer (dtn::net::ConvergenceLayer *cl)
void addConnection (const dtn::core::Node &n)
const std::set< dtn::core::Node > getNeighbors ()
void raiseEvent (const dtn::core::Event *evt)
virtual void validate (const dtn::data::PrimaryBlock &obj) const throw (RejectedException)
virtual void validate (const dtn::data::Block &obj, const size_t length) const throw (RejectedException)
virtual void validate (const dtn::data::Bundle &obj) const throw (RejectedException)
virtual const std::string getName () const

Static Public Member Functions

static BundleCore & getInstance ()
static void processBlocks (dtn::data::Bundle &b)

Static Public Attributes

static dtn::data::EID local
static size_t blocksizelimit = 0
static bool forwarding = true

Protected Member Functions

virtual void componentUp ()
virtual void componentDown ()

Detailed Description

The BundleCore manage the Bundle Protocol basics

Definition at line 31 of file BundleCore.h.

Member Function Documentation

void dtn::core::BundleCore::addConnection ( const dtn::core::Node &  n)

Definition at line 124 of file BundleCore.cpp.

References dtn::net::ConnectionManager::addConnection().

Referenced by __daemon_run().

Here is the call graph for this function:

void dtn::core::BundleCore::addConvergenceLayer ( dtn::net::ConvergenceLayer *  cl)

Definition at line 119 of file BundleCore.cpp.

References dtn::net::ConnectionManager::addConvergenceLayer().

Referenced by createConvergenceLayers().

Here is the call graph for this function:

void dtn::core::BundleCore::componentDown ( ) [protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 79 of file BundleCore.cpp.

References dtn::daemon::IntegratedComponent::terminate().

Here is the call graph for this function:

void dtn::core::BundleCore::componentUp ( ) [protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 70 of file BundleCore.cpp.

References dtn::daemon::IntegratedComponent::initialize(), and dtn::daemon::IntegratedComponent::startup().

Here is the call graph for this function:

WallClock & dtn::core::BundleCore::getClock ( )

Definition at line 99 of file BundleCore.cpp.

BundleCore & dtn::core::BundleCore::getInstance ( ) [static]

Definition at line 41 of file BundleCore.cpp.

Referenced by __daemon_run(), dtn::routing::RetransmissionExtension::notify(), dtn::routing::EpidemicRoutingExtension::notify(), dtn::net::UDPConvergenceLayer::operator>>(), dtn::net::operator>>(), dtn::net::LOWPANConvergenceLayer::operator>>(), dtn::api::operator>>(), processBlocks(), dtn::net::UDPConvergenceLayer::queue(), dtn::net::LOWPANConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), and dtn::routing::BaseRouter::Extension::transferTo().

const std::string dtn::core::BundleCore::getName ( ) const [virtual]
See also:
Component::getName()

Implements dtn::daemon::Component.

Definition at line 276 of file BundleCore.cpp.

const std::set< dtn::core::Node > dtn::core::BundleCore::getNeighbors ( )

Definition at line 129 of file BundleCore.cpp.

References dtn::net::ConnectionManager::getNeighbors().

Here is the call graph for this function:

dtn::core::BundleStorage & dtn::core::BundleCore::getStorage ( )

Definition at line 90 of file BundleCore.cpp.

Referenced by __daemon_run(), and raiseEvent().

void dtn::core::BundleCore::processBlocks ( dtn::data::Bundle &  b) [static]

Definition at line 281 of file BundleCore.cpp.

References dtn::data::CompressedPayloadBlock::BLOCK_TYPE, dtn::security::PayloadConfidentialBlock::BLOCK_TYPE, dtn::data::CompressedPayloadBlock::extract(), dtn::data::Bundle::getBlocks(), getInstance(), dtn::data::Block::getType(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and ibrcommon::Exception::what().

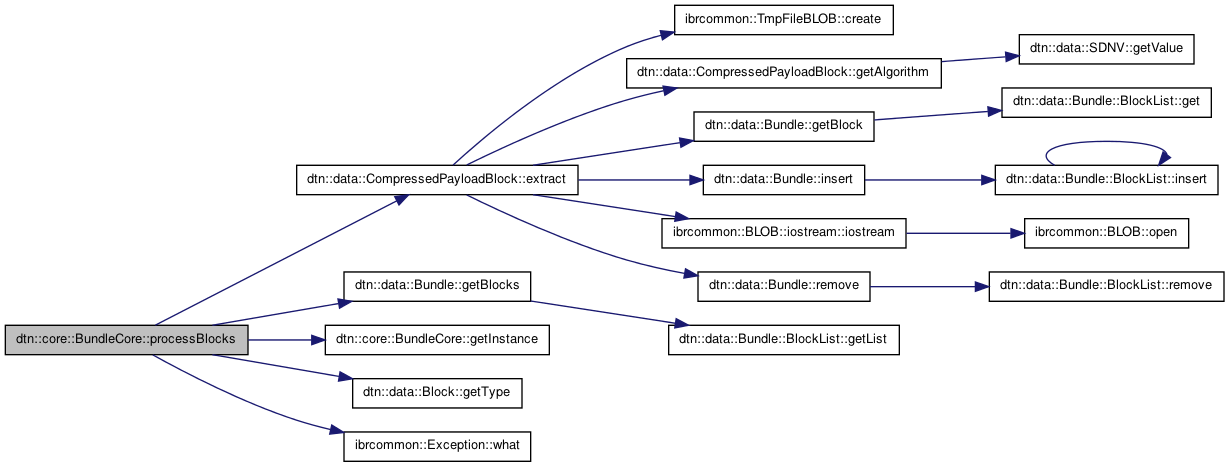

Here is the call graph for this function:

void dtn::core::BundleCore::raiseEvent ( const dtn::core::Event *  evt) [virtual]

Implements dtn::core::EventReceiver.

Definition at line 134 of file BundleCore.cpp.

References dtn::data::CustodySignalBlock::_bundle_sequence, dtn::data::CustodySignalBlock::_bundle_timestamp, dtn::data::CustodySignalBlock::_fragment_length, dtn::data::CustodySignalBlock::_fragment_offset, dtn::data::PrimaryBlock::_source, dtn::data::CustodySignalBlock::_source, dtn::routing::QueueBundleEvent::bundle, dtn::core::BUNDLE_DELETED, dtn::core::BUNDLE_DELIVERED, dtn::data::MetaBundle::destination, dtn::data::StatusReportBlock::DESTINATION_ENDPOINT_ID_UNINTELLIGIBLE, dtn::core::BundleStorage::get(), dtn::data::Bundle::getBlock(), getStorage(), dtn::data::SDNV::getValue(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, local, dtn::core::BundleEvent::raise(), dtn::core::BundleStorage::releaseCustody(), dtn::core::BundleStorage::remove(), and dtn::data::Bundle::toString().

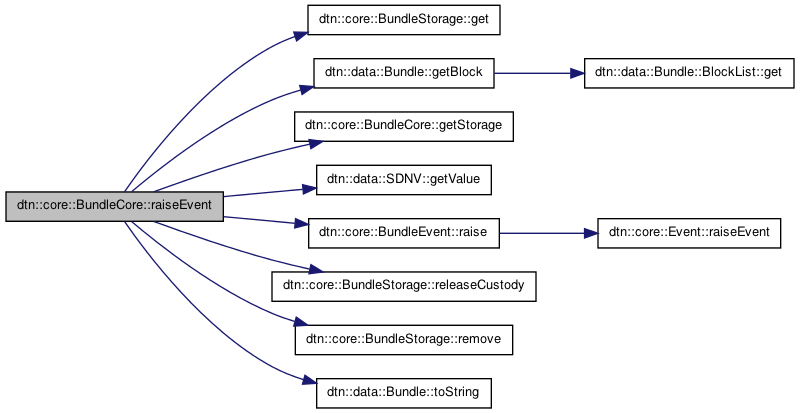

Here is the call graph for this function:

void dtn::core::BundleCore::setStorage ( dtn::core::BundleStorage *  storage)

Definition at line 85 of file BundleCore.cpp.

Referenced by createBundleStorage().

void dtn::core::BundleCore::transferTo ( const dtn::data::EID &  destination,
const dtn::data::BundleID &  bundle
)

Definition at line 104 of file BundleCore.cpp.

References dtn::net::ConnectionManager::queue(), and dtn::routing::RequeueBundleEvent::raise().

Here is the call graph for this function:

void dtn::core::BundleCore::validate ( const dtn::data::PrimaryBlock &  obj) const throw (RejectedException) [virtual]

Implements dtn::data::Validator.

Definition at line 180 of file BundleCore.cpp.

References forwarding, IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and local.

void dtn::core::BundleCore::validate ( const dtn::data::Bundle &  obj) const throw (RejectedException) [virtual]

Implements dtn::data::Validator.

Definition at line 224 of file BundleCore.cpp.

References dtn::data::StatusReportBlock::BLOCK_UNINTELLIGIBLE, dtn::core::BUNDLE_RECEIVED, dtn::data::Block::DELETE_BUNDLE_IF_NOT_PROCESSED, dtn::data::Block::get(), dtn::security::SecurityManager::getInstance(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, dtn::utils::Clock::isExpired(), dtn::core::BundleEvent::raise(), and dtn::data::Block::TRANSMIT_STATUSREPORT_IF_NOT_PROCESSED.

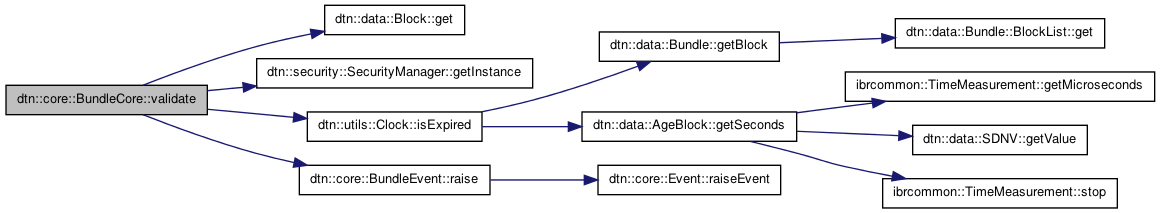

Here is the call graph for this function:

void dtn::core::BundleCore::validate ( const dtn::data::Block &  obj,
const size_t  length
) const throw (RejectedException) [virtual]

Implements dtn::data::Validator.

Definition at line 205 of file BundleCore.cpp.

References blocksizelimit, IBRCOMMON_LOGGER, and IBRCOMMON_LOGGER_ENDL.

Member Data Documentation

size_t dtn::core::BundleCore::blocksizelimit = 0 [static]

Define a global block size limit. This is used in the validator to reject bundles while receiving.

Definition at line 60 of file BundleCore.h.

Referenced by setGlobalVars(), and validate().

bool dtn::core::BundleCore::forwarding = true [static]

Define if forwarding is allowed. If set to false, this daemon only accepts bundles for local applications.

Definition at line 65 of file BundleCore.h.

Referenced by __daemon_run(), and validate().

dtn::data::EID dtn::core::BundleCore::local [static]

Definition at line 34 of file BundleCore.h.

Referenced by dtn::core::BundleStorage::acceptCustody(), dtn::security::SecurityManager::auth(), dtn::net::TCPConvergenceLayer::componentRun(), dtn::net::HTTPConvergenceLayer::componentRun(), dtn::security::SecurityManager::decrypt(), dtn::net::ConnectionManager::discovered(), dtn::security::SecurityManager::encrypt(), dtn::core::AbstractWorker::initialize(), dtn::net::TCPConvergenceLayer::open(), dtn::net::TCPConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), dtn::routing::BaseRouter::raiseEvent(), raiseEvent(), dtn::core::BundleStorage::rejectCustody(), dtn::routing::EpidemicRoutingExtension::run(), dtn::api::ClientHandler::run(), dtn::net::IPNDAgent::sendAnnoucement(), setGlobalVars(), dtn::security::SecurityManager::sign(), dtn::core::SQLiteBundleStorage::store(), validate(), and dtn::security::SecurityManager::verifyPIB().

The documentation for this class was generated from the following files:
