dtn::core::WallClock Class Reference

#include <WallClock.h>

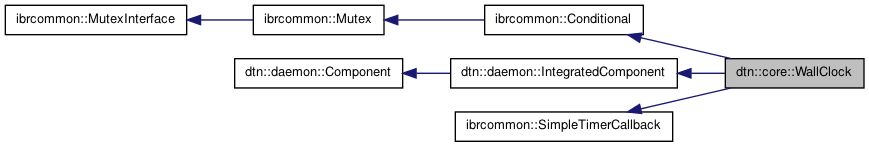

Inheritance diagram for dtn::core::WallClock:

Collaboration diagram for dtn::core::WallClock:

List of all members.

Public Member Functions
	WallClock (size_t frequency)
virtual	~WallClock ()
void	sync ()
virtual size_t	timeout (size_t identifier)
virtual const std::string	getName () const
Protected Member Functions
virtual void	componentUp ()
virtual void	componentDown ()

---

Detailed Description

Definition at line 20 of file WallClock.h.

---

Constructor & Destructor Documentation

dtn::core::WallClock::WallClock

(

size_t

frequency

)

Constructor for the global Clock

Parameters:

frequency

Specify the frequency for the clock tick in seconds.

Definition at line 17 of file WallClock.cpp.

References ibrcommon::SimpleTimer::set().

Here is the call graph for this function:

dtn::core::WallClock::~WallClock

(

)

[virtual]

Definition at line 22 of file WallClock.cpp.

---

Member Function Documentation

void dtn::core::WallClock::componentDown

(

)

[protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 41 of file WallClock.cpp.

References ibrcommon::SimpleTimer::remove().

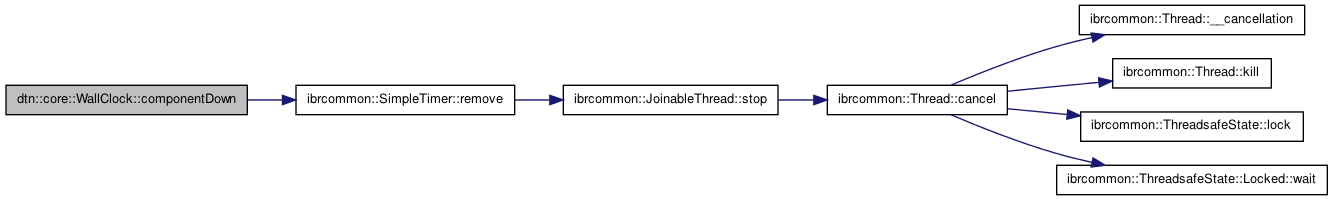

Here is the call graph for this function:

void dtn::core::WallClock::componentUp

(

)

[protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 36 of file WallClock.cpp.

References ibrcommon::JoinableThread::start().

Here is the call graph for this function:

const std::string dtn::core::WallClock::getName

(

)

const [virtual]

See also:

Component::getName()

Implements dtn::daemon::Component.

Definition at line 69 of file WallClock.cpp.

void dtn::core::WallClock::sync

(

)

Blocks until the next clock tick happens.

Definition at line 26 of file WallClock.cpp.

References ibrcommon::Conditional::wait().

Here is the call graph for this function:

size_t dtn::core::WallClock::timeout

(

size_t

identifier

)

[virtual]

timer callback method

See also:

SimpleTimerCallback::timeout()

Implements ibrcommon::SimpleTimerCallback.

Definition at line 46 of file WallClock.cpp.

References dtn::utils::Clock::getTime(), dtn::core::TimeEvent::raise(), ibrcommon::Conditional::signal(), and dtn::core::TIME_SECOND_TICK.

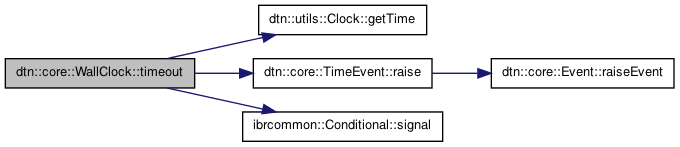

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• daemon/src/core/WallClock.h
• daemon/src/core/WallClock.cpp
