#include <Thread.h>

Inherited by ibrcommon::DetachedThread [protected], and ibrcommon::JoinableThread [protected].

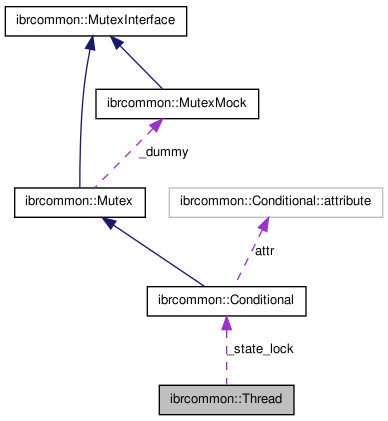

Collaboration diagram for ibrcommon::Thread:

Classes
class	CancelProtector
Public Member Functions
virtual	~Thread ()=0
virtual void	setup (void)
virtual void	run (void)=0
virtual void	finally (void)
void	detach (void)
bool	operator== (const ibrcommon::Thread &other)
void	interrupt ()
Static Public Member Functions
static void	yield (void)
static void	sleep (size_t timeout)
static void	exit (void)
static void	concurrency (int level)
Protected Types
enum	THREAD_STATE { THREAD_INITIALIZED, THREAD_PREPARE, THREAD_RUNNING, THREAD_CANCELLED, THREAD_FINALIZED, THREAD_JOINED, THREAD_ERROR }
Protected Member Functions
	Thread (size_t stack=DEFAULT_STACKSIZE, bool delete_on_exit=false)
int	kill (int sig)
void	cancellation_point ()
void	enable_interruption ()
void	disable_interruption ()
void	cancel () throw (ThreadException)
virtual bool	__cancellation ()
Static Protected Member Functions
static bool	equal (pthread_t thread1, pthread_t thread2)
static void *	exec_thread (void *obj)
static void	finalize_thread (void *obj)
Protected Attributes
enum ibrcommon::Thread::THREAD_STATE	_state
ibrcommon::Conditional	_state_lock
pthread_t	tid
size_t	stack
int	priority
pthread_attr_t	attr

Detailed Description

An abstract class for defining classes that operate as a thread. A derived thread class has a run method that is invoked with the newly created thread context, and can use the derived object to store all member data that needs to be associated with that context. This means the derived object can safely hold thread-specific data that is managed with the life of the object, rather than having to use the clumsy thread-specific data management and access functions found in thread support libraries.

Author:: David Sugar <dyfet@gnutelephony.org>

Definition at line 41 of file Thread.h.

Member Enumeration Documentation

enum ibrcommon::Thread::THREAD_STATE [protected]

Enumerator:

THREAD_INITIALIZED
THREAD_PREPARE
THREAD_RUNNING
THREAD_CANCELLED
THREAD_FINALIZED
THREAD_JOINED
THREAD_ERROR

Definition at line 44 of file Thread.h.

Constructor & Destructor Documentation

ibrcommon::Thread::Thread	(	size_t	stack = `DEFAULT_STACKSIZE`,
		bool	delete_on_exit = `false`
	)			`[protected]`

Create a thread object that will have a preset stack size. If 0 is used, then the stack size is os defined/default.

Parameters:

stack

size to use or 0 for default.

Definition at line 102 of file Thread.cpp.

References attr.

ibrcommon::Thread::~Thread ( ) [pure virtual]

Destroy thread object, thread-specific data, and execution context.

Definition at line 145 of file Thread.cpp.

References attr.

Member Function Documentation

virtual bool ibrcommon::Thread::__cancellation ( ) [inline, protected, virtual]

Reimplemented in ibrcommon::NetLinkManager, ibrcommon::Timer, ibrcommon::SimpleTimer, dtn::daemon::IndependentComponent, dtn::core::DataStorage, dtn::net::HTTPConvergenceLayer, dtn::routing::EpidemicRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, and dtn::routing::StaticRoutingExtension.

Definition at line 181 of file Thread.h.

Referenced by cancel().

void ibrcommon::Thread::cancel ( ) throw (ThreadException) [protected]

Cancel the running thread context.

Definition at line 183 of file Thread.cpp.

References __cancellation(), _state, _state_lock, kill(), ibrcommon::Conditional::signal(), THREAD_PREPARE, THREAD_RUNNING, and tid.

Referenced by ibrcommon::DetachedThread::stop(), and ibrcommon::JoinableThread::stop().

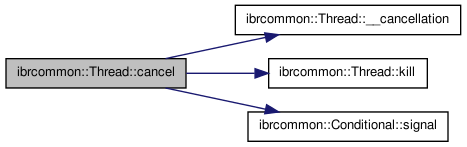

Here is the call graph for this function:

void ibrcommon::Thread::cancellation_point ( ) [protected]

this method enables the thread to terminate at this position if a cancellation request is pending

Definition at line 119 of file Thread.cpp.

void ibrcommon::Thread::concurrency ( int level ) [static]

Set concurrency level of process. This is essentially a portable wrapper for pthread_setconcurrency.

Definition at line 124 of file Thread.cpp.

void ibrcommon::Thread::detach ( void )

detach this thread

Definition at line 150 of file Thread.cpp.

References tid.

void ibrcommon::Thread::disable_interruption ( ) [protected]

disable interruption.

Definition at line 178 of file Thread.cpp.

void ibrcommon::Thread::enable_interruption ( ) [protected]

enable interruption for this thread. used with pselect it is possible to break the blocking state of pselect by calling interrupt()

Definition at line 171 of file Thread.cpp.

Referenced by dtn::net::TCPConvergenceLayer::componentRun(), and ibrcommon::NetLinkManager::run().

bool ibrcommon::Thread::equal	(	pthread_t	thread1,
		pthread_t	thread2
	)			`[static, protected]`

Determine if two thread identifiers refer to the same thread.

Parameters:

	thread1	to test.
	thread2	to test.

Returns:: true if both are the same context.

Definition at line 203 of file Thread.cpp.

Referenced by ibrcommon::JoinableThread::join(), and operator==().

void * ibrcommon::Thread::exec_thread ( void * obj ) [static, protected]

static execute thread method

Definition at line 53 of file Thread.cpp.

References _state, _state_lock, exit(), finalize_thread(), IBRCOMMON_LOGGER_DEBUG, setup(), ibrcommon::Conditional::signal(), and THREAD_CANCELLED.

Referenced by ibrcommon::DetachedThread::start(), and ibrcommon::JoinableThread::start().

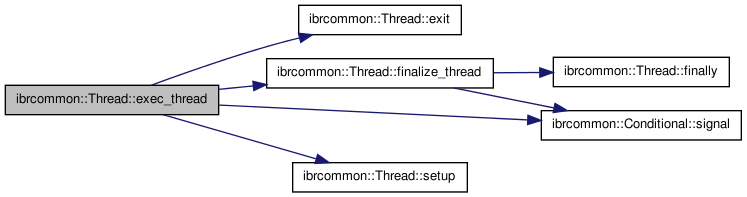

Here is the call graph for this function:

void ibrcommon::Thread::exit ( void ) [static]

Exit the thread context.

Definition at line 155 of file Thread.cpp.

Referenced by exec_thread(), and ibrcommon::JoinableThread::join().

void ibrcommon::Thread::finalize_thread ( void * obj ) [static, protected]

this method finalizes a thread. If the thread is self-deleting, the object will be invalid after exection.

Definition at line 25 of file Thread.cpp.

References _state, _state_lock, finally(), and ibrcommon::Conditional::signal().

Referenced by exec_thread().

Here is the call graph for this function:

virtual void ibrcommon::Thread::finally ( void ) [inline, virtual]

This method is called when the run() method finishes.

Reimplemented in dtn::daemon::ClientHandler, and dtn::net::TCPConnection.

Definition at line 107 of file Thread.h.

Referenced by finalize_thread().

void ibrcommon::Thread::interrupt ( )

Interrupt the thread execution. Actually, this method sends a SIGINT to the thread.

Definition at line 166 of file Thread.cpp.

References kill().

Referenced by ibrcommon::NetLinkManager::__cancellation(), dtn::net::TCPConvergenceLayer::__cancellation(), dtn::net::IPNDAgent::__cancellation(), and dtn::net::TCPConvergenceLayer::componentDown().

Here is the call graph for this function:

int ibrcommon::Thread::kill ( int sig ) [protected]

sends a signal to this thread

Parameters:

sig

Returns:

Definition at line 160 of file Thread.cpp.

References tid.

Referenced by cancel(), and interrupt().

bool ibrcommon::Thread::operator== ( const ibrcommon::Thread & other ) [inline]

Determine if two thread identifiers refer to the same thread.

Parameters:

other

The thread to compare.

Returns:: True, if both threads are the same.

Definition at line 130 of file Thread.h.

References equal(), and tid.

Here is the call graph for this function:

virtual void ibrcommon::Thread::run ( void ) [pure virtual]

Abstract interface for thread context run method.

Implemented in ibrcommon::NetLinkManager, ibrcommon::Timer, ibrcommon::SimpleTimer, dtn::daemon::ClientHandler, dtn::daemon::IndependentComponent, dtn::core::DataStorage, dtn::net::TCPConnection, dtn::routing::EpidemicRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, and dtn::routing::StaticRoutingExtension.

virtual void ibrcommon::Thread::setup ( void ) [inline, virtual]

This method is called before the run.

Reimplemented in dtn::net::TCPConnection.

Definition at line 97 of file Thread.h.

Referenced by exec_thread().

void ibrcommon::Thread::sleep ( size_t timeout ) [static]

Sleep current thread for a specified time period.

Parameters:

timeout

to sleep for in milliseconds.

Definition at line 131 of file Thread.cpp.

void ibrcommon::Thread::yield ( void ) [static]

Yield execution context of the current thread. This is a static and may be used anywhere.

Definition at line 108 of file Thread.cpp.

Referenced by dtn::net::UDPConvergenceLayer::componentRun(), dtn::net::TCPConvergenceLayer::componentRun(), dtn::net::LOWPANConvergenceLayer::componentRun(), dtn::net::IPNDAgent::componentRun(), dtn::net::HTTPConvergenceLayer::componentRun(), ibrcommon::SimpleTimer::run(), ibrcommon::Timer::run(), dtn::routing::StaticRoutingExtension::run(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::EpidemicRoutingExtension::run(), dtn::net::TCPConnection::run(), and dtn::daemon::ClientHandler::run().

Member Data Documentation

enum ibrcommon::Thread::THREAD_STATE ibrcommon::Thread::_state [protected]

Referenced by cancel(), exec_thread(), finalize_thread(), ibrcommon::JoinableThread::isRunning(), ibrcommon::JoinableThread::join(), and ibrcommon::JoinableThread::~JoinableThread().

ibrcommon::Conditional ibrcommon::Thread::_state_lock [protected]

Definition at line 55 of file Thread.h.

Referenced by cancel(), exec_thread(), finalize_thread(), ibrcommon::JoinableThread::join(), and ibrcommon::JoinableThread::~JoinableThread().

pthread_attr_t ibrcommon::Thread::attr [protected]

Definition at line 67 of file Thread.h.

Referenced by Thread(), and ~Thread().

int ibrcommon::Thread::priority [protected]

Definition at line 64 of file Thread.h.

size_t ibrcommon::Thread::stack [protected]

Definition at line 61 of file Thread.h.

pthread_t ibrcommon::Thread::tid [protected]

Definition at line 58 of file Thread.h.

Referenced by cancel(), detach(), ibrcommon::JoinableThread::join(), kill(), and operator==().

The documentation for this class was generated from the following files:

ibrcommon/ibrcommon/thread/Thread.h
ibrcommon/ibrcommon/thread/Thread.cpp
