dtn::routing::BaseRouter Class Reference

#include <BaseRouter.h>

Inherits dtn::core::EventReceiver, and dtn::daemon::IntegratedComponent.

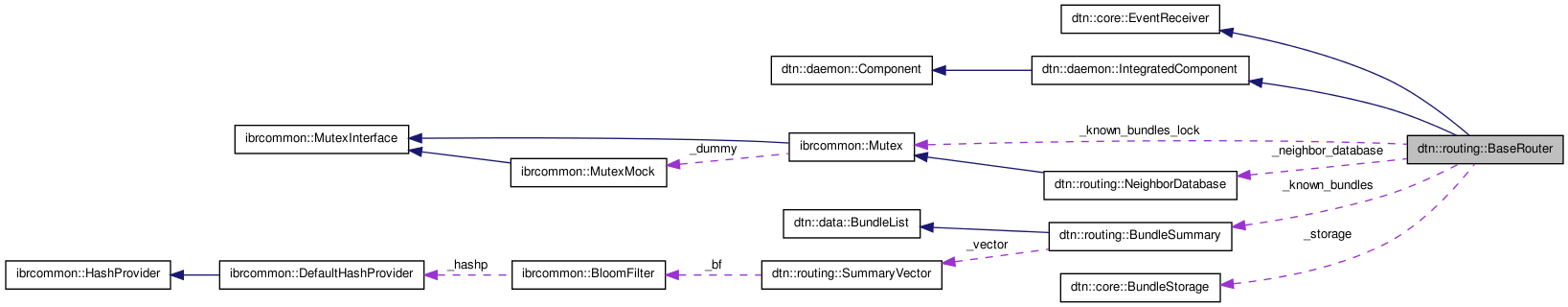

Collaboration diagram for dtn::routing::BaseRouter:

List of all members.

Classes
class	Endpoint
class	Extension
class	NoNeighbourFoundException
class	NoRouteFoundException
class	RoutingException
class	ThreadedExtension
class	VirtualEndpoint
Public Member Functions
	BaseRouter (dtn::core::BundleStorage &storage)
	~BaseRouter ()
void	addExtension (BaseRouter::Extension *extension)
void	raiseEvent (const dtn::core::Event *evt)
dtn::data::Bundle	getBundle (const dtn::data::BundleID &id)
dtn::core::BundleStorage &	getStorage ()
bool	isKnown (const dtn::data::BundleID &id)
void	setKnown (const dtn::data::MetaBundle &meta)
const SummaryVector	getSummaryVector ()
virtual const std::string	getName () const
NeighborDatabase &	getNeighborDB ()
Protected Member Functions
virtual void	componentUp ()
virtual void	componentDown ()

---

Detailed Description

Definition at line 29 of file BaseRouter.h.

---

Constructor & Destructor Documentation

dtn::routing::BaseRouter::BaseRouter

(

dtn::core::BundleStorage &

storage

)

implementation of the BaseRouter class

Definition at line 111 of file BaseRouter.cpp.

dtn::routing::BaseRouter::~BaseRouter

(

)

Definition at line 118 of file BaseRouter.cpp.

---

Member Function Documentation

void dtn::routing::BaseRouter::addExtension

(

BaseRouter::Extension *

extension

)

Add a routing extension to the routing core.

Parameters:

extension

Definition at line 126 of file BaseRouter.cpp.

Referenced by __daemon_run().

void dtn::routing::BaseRouter::componentDown

(

)

[protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 159 of file BaseRouter.cpp.

References dtn::core::BundleGeneratedEvent::className, dtn::core::TimeEvent::className, dtn::core::BundleExpiredEvent::className, dtn::core::NodeEvent::className, dtn::routing::RequeueBundleEvent::className, dtn::routing::QueueBundleEvent::className, dtn::net::BundleReceivedEvent::className, dtn::net::TransferCompletedEvent::className, dtn::net::TransferAbortedEvent::className, IBRCOMMON_LOGGER, ibrcommon::JoinableThread::stop(), dtn::core::EventReceiver::unbindEvent(), and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::routing::BaseRouter::componentUp

(

)

[protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 131 of file BaseRouter.cpp.

References dtn::core::EventReceiver::bindEvent(), dtn::core::BundleGeneratedEvent::className, dtn::core::TimeEvent::className, dtn::core::BundleExpiredEvent::className, dtn::core::NodeEvent::className, dtn::routing::RequeueBundleEvent::className, dtn::routing::QueueBundleEvent::className, dtn::net::BundleReceivedEvent::className, dtn::net::TransferCompletedEvent::className, dtn::net::TransferAbortedEvent::className, IBRCOMMON_LOGGER, ibrcommon::JoinableThread::start(), and ibrcommon::Exception::what().

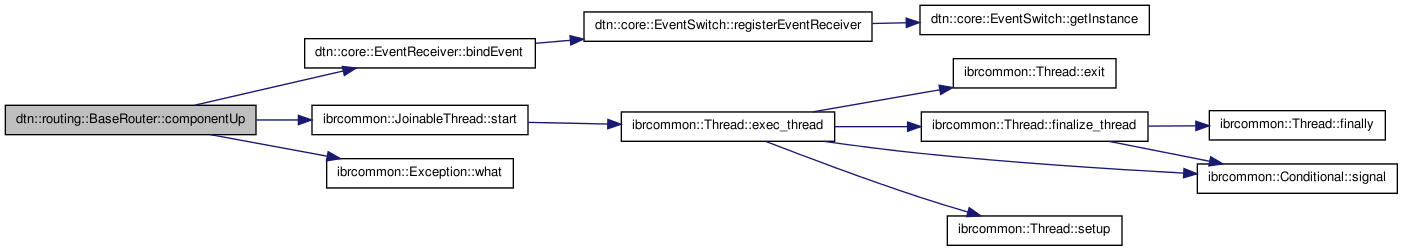

Here is the call graph for this function:

dtn::data::Bundle dtn::routing::BaseRouter::getBundle

(

const dtn::data::BundleID &

id

)

Get a bundle out of the storage.

Parameters:

id

The ID of the bundle.

Returns:

The requested bundle.

Definition at line 363 of file BaseRouter.cpp.

References dtn::core::BundleStorage::get().

Here is the call graph for this function:

const std::string dtn::routing::BaseRouter::getName

(

)

const [virtual]

See also:

Component::getName()

Implements dtn::daemon::Component.

Definition at line 392 of file BaseRouter.cpp.

NeighborDatabase & dtn::routing::BaseRouter::getNeighborDB

(

)

Definition at line 397 of file BaseRouter.cpp.

Referenced by dtn::routing::BaseRouter::Extension::transferTo().

dtn::core::BundleStorage & dtn::routing::BaseRouter::getStorage

(

)

Definition at line 368 of file BaseRouter.cpp.

const SummaryVector dtn::routing::BaseRouter::getSummaryVector

(

)

Definition at line 386 of file BaseRouter.cpp.

References dtn::routing::BundleSummary::getSummaryVector().

Here is the call graph for this function:

bool dtn::routing::BaseRouter::isKnown

(

const dtn::data::BundleID &

id

)

This method returns true, if the given BundleID is known.

Parameters:

id

Returns:

Definition at line 380 of file BaseRouter.cpp.

References dtn::routing::BundleSummary::contains().

Referenced by raiseEvent().

Here is the call graph for this function:

void dtn::routing::BaseRouter::raiseEvent

(

const dtn::core::Event *

evt

)

method to receive new events from the EventSwitch

Definition at line 193 of file BaseRouter.cpp.

References dtn::data::PrimaryBlock::_destination, dtn::routing::NeighborDatabase::addBundle(), dtn::core::BundleGeneratedEvent::bundle, dtn::net::BundleReceivedEvent::bundle, dtn::core::BUNDLE_RECEIVED, dtn::routing::NeighborDatabase::create(), dtn::routing::NeighborDatabase::expire(), dtn::data::BundleList::expire(), dtn::net::BundleReceivedEvent::fromlocal, dtn::core::BundleStorage::get(), dtn::routing::NeighborDatabase::get(), dtn::security::SecurityManager::getInstance(), dtn::core::TimeEvent::getTimestamp(), IBRCOMMON_LOGGER, isKnown(), dtn::core::BundleCore::local, dtn::net::BundleReceivedEvent::peer, dtn::core::BundleEvent::raise(), dtn::routing::QueueBundleEvent::raise(), dtn::net::TransferAbortedEvent::REASON_REFUSED, dtn::routing::NeighborDatabase::NeighborEntry::releaseTransfer(), dtn::routing::NeighborDatabase::reset(), setKnown(), dtn::core::BundleStorage::store(), and dtn::data::Bundle::toString().

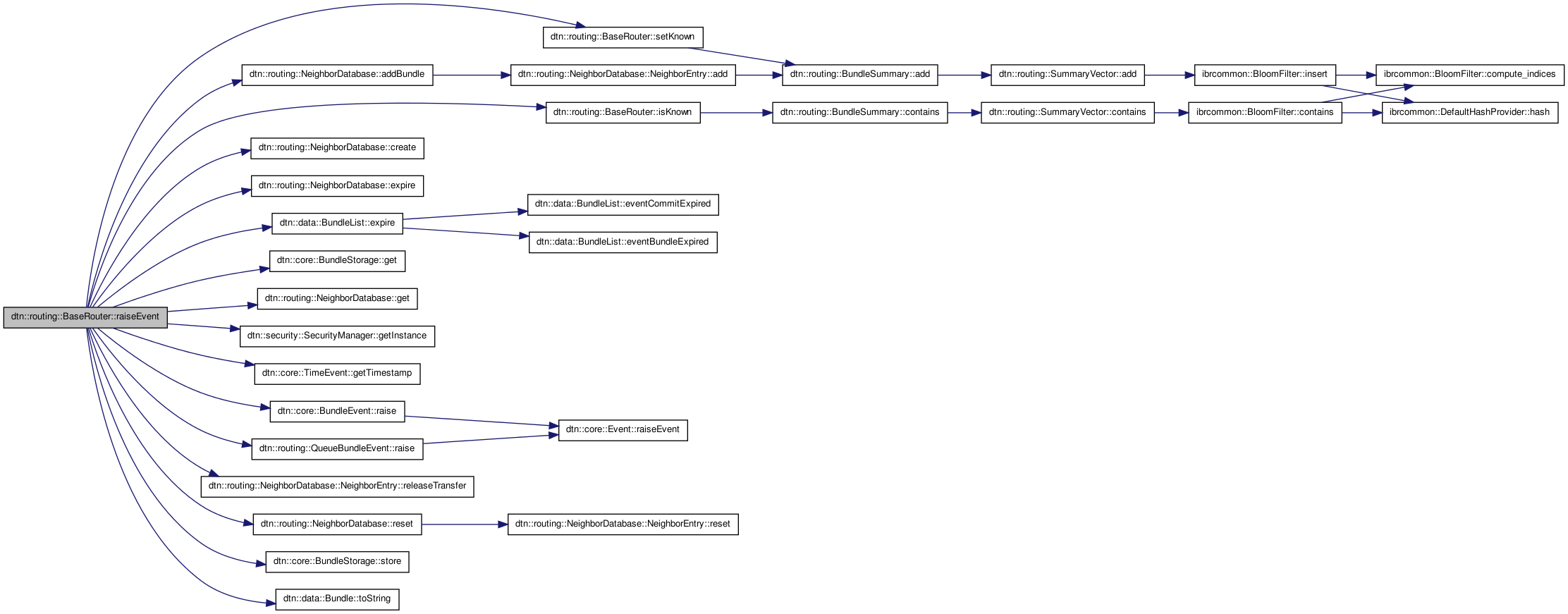

Here is the call graph for this function:

void dtn::routing::BaseRouter::setKnown

(

const dtn::data::MetaBundle &

meta

)

This method add a BundleID to the set of known bundles

Parameters:

id

Definition at line 373 of file BaseRouter.cpp.

References dtn::routing::BundleSummary::add().

Referenced by raiseEvent().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• daemon/src/routing/BaseRouter.h
• daemon/src/routing/BaseRouter.cpp
