dtn::core::BundleStorage Class Reference

#include <BundleStorage.h>

Inherited by dtn::core::MemoryBundleStorage, dtn::core::SimpleBundleStorage, and dtn::core::SQLiteBundleStorage.

List of all members.

Classes

class  BundleFilterCallback
class  BundleLoadException
class  NoBundleFoundException
class  StorageSizeExeededException

Public Member Functions

virtual ~BundleStorage ()=0
virtual void store (const dtn::data::Bundle &bundle)=0
virtual dtn::data::Bundle get (const dtn::data::BundleID &id)=0
virtual const std::list
< dtn::data::MetaBundle > 		get (BundleFilterCallback &cb)=0
virtual void remove (const dtn::data::BundleID &id)=0
void remove (const dtn::data::Bundle &b)
virtual dtn::data::MetaBundle remove (const ibrcommon::BloomFilter &filter)=0
virtual void clear ()
virtual bool empty ()
virtual unsigned int count ()
virtual void releaseCustody (const dtn::data::EID &custodian, const dtn::data::BundleID &id)=0
const dtn::data::EID acceptCustody (const dtn::data::MetaBundle &meta)
void rejectCustody (const dtn::data::MetaBundle &meta)

Protected Member Functions

 BundleStorage ()

Detailed Description

Definition at line 24 of file BundleStorage.h.

Constructor & Destructor Documentation

dtn::core::BundleStorage::~BundleStorage (  )  [pure virtual]

destructor

Definition at line 22 of file BundleStorage.cpp.

dtn::core::BundleStorage::BundleStorage (  )  [protected]

constructor

Definition at line 18 of file BundleStorage.cpp.

Member Function Documentation

const dtn::data::EID dtn::core::BundleStorage::acceptCustody ( const dtn::data::MetaBundle &  meta  )

Accept custody for a given bundle. The previous custodian gets notified with a custody accept message.

Parameters:
bundle
Returns:
The new custodian.

Definition at line 31 of file BundleStorage.cpp.

References dtn::data::PrimaryBlock::_destination, dtn::data::PrimaryBlock::_source, dtn::data::CustodySignalBlock::_status, dtn::data::MetaBundle::custodian, dtn::core::CUSTODY_ACCEPT, dtn::data::PrimaryBlock::CUSTODY_REQUESTED, dtn::data::PrimaryBlock::DESTINATION_IS_SINGLETON, dtn::data::MetaBundle::get(), dtn::core::BundleCore::local, dtn::data::PrimaryBlock::PRIORITY_BIT1, dtn::data::PrimaryBlock::PRIORITY_BIT2, dtn::data::Bundle::push_back(), dtn::core::CustodyEvent::raise(), dtn::core::BundleGeneratedEvent::raise(), dtn::data::PrimaryBlock::set(), and dtn::data::CustodySignalBlock::setMatch().

Referenced by dtn::core::SQLiteBundleStorage::store().

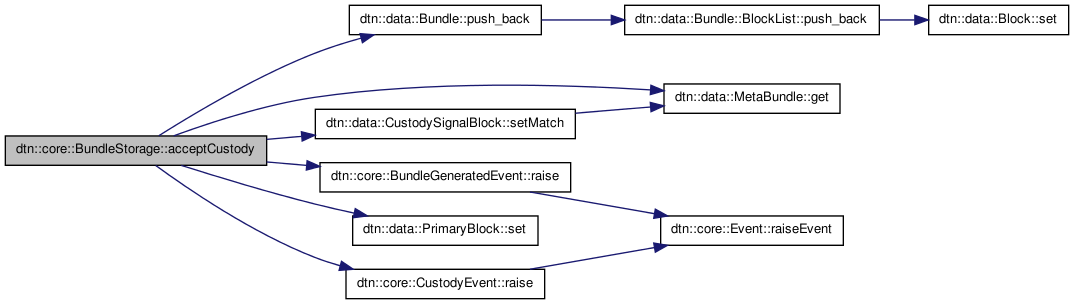

Here is the call graph for this function:

virtual void dtn::core::BundleStorage::clear (  )  [inline, virtual]

Clears all bundles and fragments in the storage.

Definition at line 121 of file BundleStorage.h.

virtual unsigned int dtn::core::BundleStorage::count (  )  [inline, virtual]
Returns:
the count of bundles in the storage

Definition at line 131 of file BundleStorage.h.

virtual bool dtn::core::BundleStorage::empty (  )  [inline, virtual]
Returns:
True, if no bundles in the storage.

Definition at line 126 of file BundleStorage.h.

virtual dtn::data::Bundle dtn::core::BundleStorage::get ( const dtn::data::BundleID &  id  )  [pure virtual]

This method returns a specific bundle which is identified by its id.

Parameters:
id The ID of the bundle to return.
Returns:
A bundle object.

Referenced by dtn::routing::BaseRouter::getBundle(), dtn::net::UDPConvergenceLayer::queue(), dtn::net::LOWPANConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), dtn::routing::BaseRouter::raiseEvent(), dtn::core::BundleCore::raiseEvent(), dtn::routing::StaticRoutingExtension::run(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

virtual const std::list<dtn::data::MetaBundle> dtn::core::BundleStorage::get ( BundleFilterCallback &  cb  )  [pure virtual]

Query the database for a number of bundles. The bundles are selected with the BundleFilterCallback class which is to implement by the user of this method.

Parameters:
cb The instance of the callback filter class.
Returns:
A list of bundles.
void dtn::core::BundleStorage::rejectCustody ( const dtn::data::MetaBundle &  meta  )

Reject custody for a given bundle. The custodian of this bundle gets notified with a custody reject message.

Parameters:
bundle

Definition at line 68 of file BundleStorage.cpp.

References dtn::data::PrimaryBlock::_destination, dtn::data::PrimaryBlock::_source, dtn::data::MetaBundle::custodian, dtn::core::CUSTODY_REJECT, dtn::data::PrimaryBlock::CUSTODY_REQUESTED, dtn::data::MetaBundle::get(), dtn::core::BundleCore::local, dtn::data::Bundle::push_back(), dtn::core::CustodyEvent::raise(), dtn::core::BundleGeneratedEvent::raise(), and dtn::data::CustodySignalBlock::setMatch().

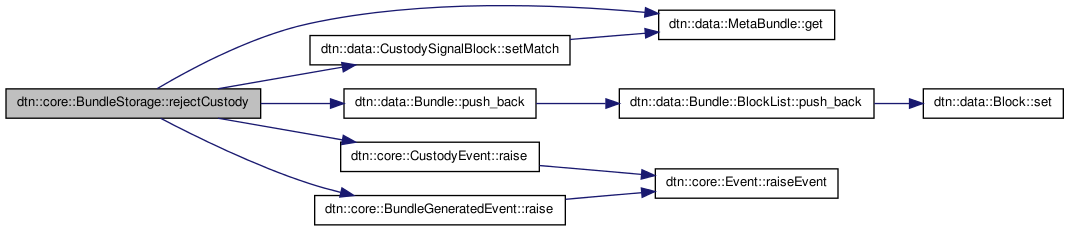

Here is the call graph for this function:

virtual void dtn::core::BundleStorage::releaseCustody ( const dtn::data::EID &  custodian,
const dtn::data::BundleID &  id
) [pure virtual]

This method is called if another node accepts custody for a bundle of us.

Parameters:
bundle

Referenced by dtn::core::BundleCore::raiseEvent().

void dtn::core::BundleStorage::remove ( const dtn::data::Bundle &  b  )

This method deletes a specific bundle in the storage. No reports will be generated here.

Parameters:
b The bundle to remove.

Definition at line 26 of file BundleStorage.cpp.

virtual dtn::data::MetaBundle dtn::core::BundleStorage::remove ( const ibrcommon::BloomFilter &  filter  )  [pure virtual]

Remove one bundles which match this filter

Parameters:
filter
Returns:
The bundle meta data of the removed bundle.
virtual void dtn::core::BundleStorage::remove ( const dtn::data::BundleID &  id  )  [pure virtual]

This method deletes a specific bundle in the storage. No reports will be generated here.

Parameters:
id The ID of the bundle to remove.

Referenced by dtn::routing::NeighborRoutingExtension::notify(), dtn::core::BundleCore::raiseEvent(), and dtn::routing::EpidemicRoutingExtension::run().

virtual void dtn::core::BundleStorage::store ( const dtn::data::Bundle &  bundle  )  [pure virtual]

Stores a bundle in the storage.

Parameters:
bundle The bundle to store.

Referenced by dtn::routing::BaseRouter::raiseEvent().

The documentation for this class was generated from the following files:
