dtn::routing::EpidemicRoutingExtension Class Reference

#include <EpidemicRoutingExtension.h>

Inherits dtn::routing::BaseRouter::ThreadedExtension, and dtn::net::DiscoveryServiceProvider.

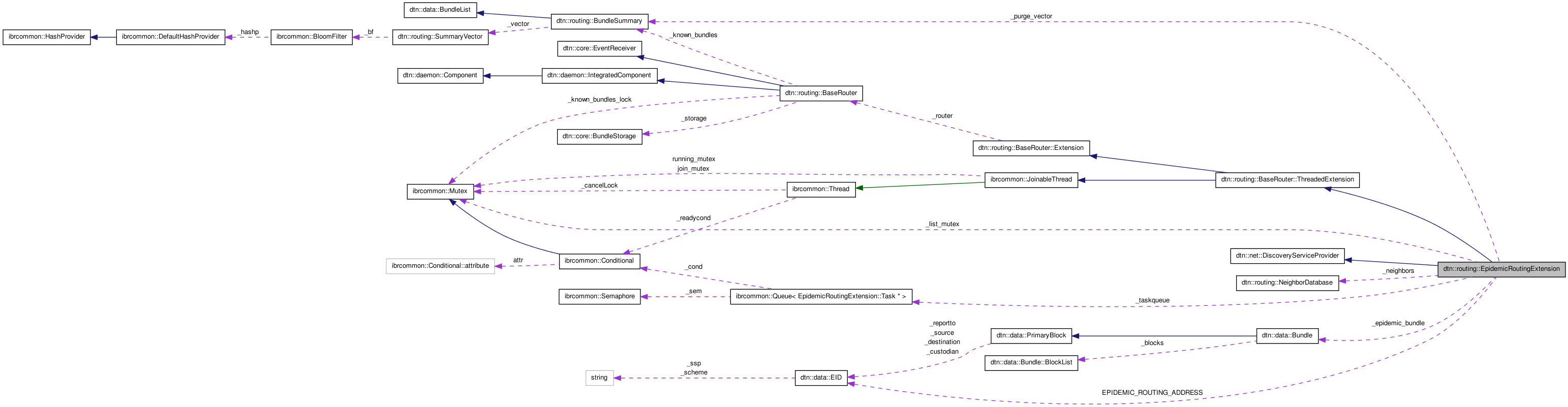

Collaboration diagram for dtn::routing::EpidemicRoutingExtension:

List of all members.

Classes
class	EpidemicExtensionBlock
class	ExpireTask
class	ProcessBundleTask
class	SearchNextBundleTask
class	Task
class	TransferSummaryVectorTask
Public Member Functions
	EpidemicRoutingExtension ()
	~EpidemicRoutingExtension ()
void	notify (const dtn::core::Event *evt)
void	update (std::string &name, std::string &data)
virtual void	stopExtension ()
Protected Member Functions
void	run ()
bool	__cancellation ()

---

Detailed Description

Definition at line 33 of file EpidemicRoutingExtension.h.

---

Constructor & Destructor Documentation

dtn::routing::EpidemicRoutingExtension::EpidemicRoutingExtension

(

)

Definition at line 49 of file EpidemicRoutingExtension.cpp.

References dtn::data::PrimaryBlock::_destination, dtn::data::PrimaryBlock::_lifetime, dtn::data::PrimaryBlock::_source, dtn::core::BundleStorage::addToFilter(), dtn::daemon::Configuration::getInstance(), dtn::daemon::Configuration::getNodename(), dtn::routing::BaseRouter::Extension::getRouter(), dtn::routing::BaseRouter::getStorage(), IBRCOMMON_LOGGER, dtn::core::BundleCore::local, and dtn::data::Bundle::push_back().

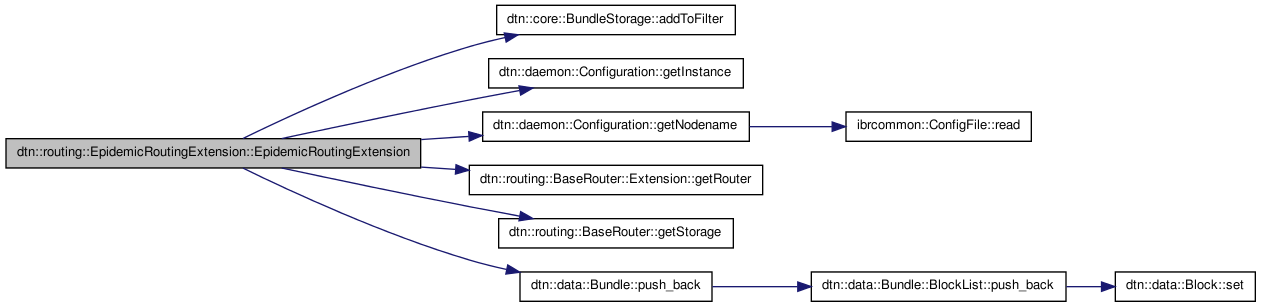

Here is the call graph for this function:

dtn::routing::EpidemicRoutingExtension::~EpidemicRoutingExtension

(

)

Definition at line 70 of file EpidemicRoutingExtension.cpp.

References ibrcommon::JoinableThread::join(), and ibrcommon::JoinableThread::stop().

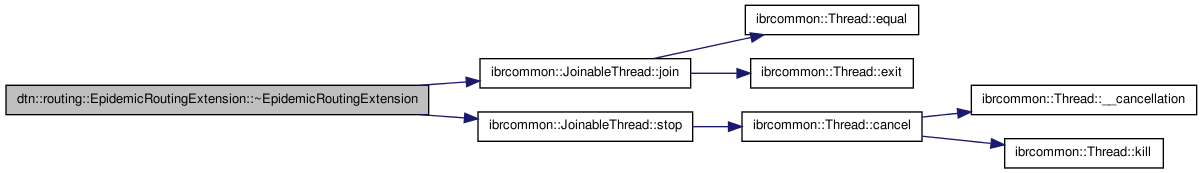

Here is the call graph for this function:

---

Member Function Documentation

bool dtn::routing::EpidemicRoutingExtension::__cancellation

(

)

[protected]

Definition at line 265 of file EpidemicRoutingExtension.cpp.

References ibrcommon::Queue< T >::abort().

Here is the call graph for this function:

void dtn::routing::EpidemicRoutingExtension::notify

(

const dtn::core::Event *

evt

)

Definition at line 87 of file EpidemicRoutingExtension.cpp.

References dtn::routing::NeighborDatabase::NeighborEntry::_filter, dtn::routing::BundleSummary::add(), dtn::routing::QueueBundleEvent::bundle, dtn::data::MetaBundle::destination, dtn::routing::NeighborDatabase::get(), dtn::core::NodeEvent::getAction(), dtn::core::TimeEvent::getAction(), ibrcommon::BloomFilter::getAllocation(), dtn::net::TransferCompletedEvent::getBundle(), dtn::net::TransferAbortedEvent::getBundleID(), dtn::core::NodeEvent::getNode(), dtn::data::EID::getNodeEID(), dtn::net::TransferCompletedEvent::getPeer(), dtn::net::TransferAbortedEvent::getPeer(), dtn::routing::BaseRouter::Extension::getRouter(), dtn::routing::BaseRouter::getStorage(), dtn::core::TimeEvent::getTimestamp(), dtn::core::Node::getURI(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_LEVEL, ibrcommon::BloomFilter::insert(), dtn::core::NODE_AVAILABLE, dtn::core::NODE_UNAVAILABLE, dtn::routing::QueueBundleEvent::origin, ibrcommon::Queue< T >::push(), dtn::net::TransferAbortedEvent::reason, dtn::net::TransferAbortedEvent::REASON_BUNDLE_DELETED, dtn::net::TransferAbortedEvent::REASON_CONNECTION_DOWN, dtn::net::TransferAbortedEvent::REASON_REFUSED, dtn::net::TransferAbortedEvent::REASON_RETRY_LIMIT_REACHED, dtn::net::TransferAbortedEvent::REASON_UNDEFINED, dtn::routing::NeighborDatabase::NeighborEntry::releaseTransfer(), dtn::core::BundleStorage::remove(), dtn::routing::NeighborDatabase::setAvailable(), dtn::routing::NeighborDatabase::setUnavailable(), and dtn::data::BundleID::toString().

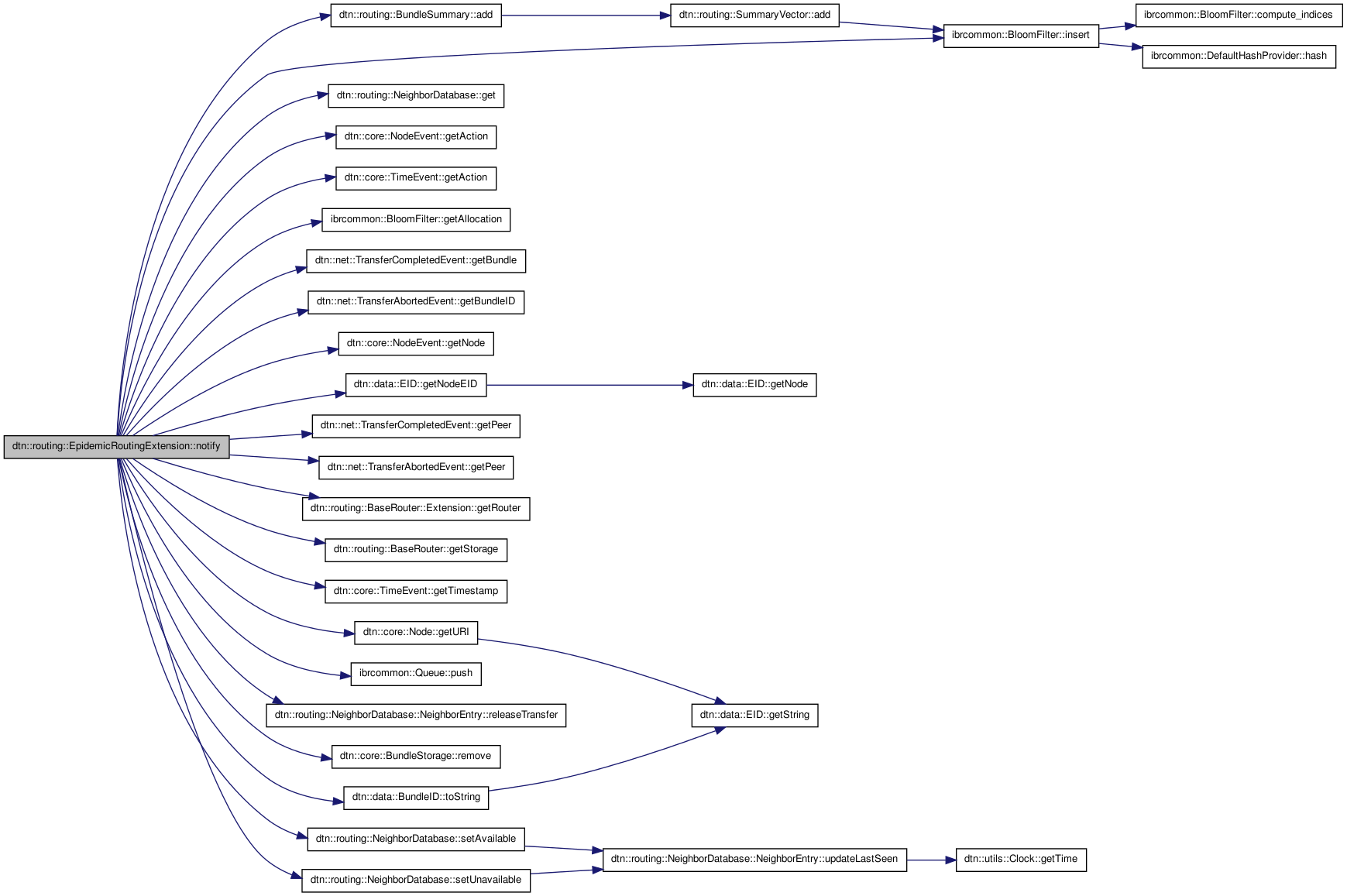

Here is the call graph for this function:

void dtn::routing::EpidemicRoutingExtension::run

(

void

)

[protected]

The ExpireTask take care of expired bundles in the purge vector and triggers a broadcast of the summary vector.

SearchNextBundleTask triggers a search for a bundle to transfer to another host. This Task is generated by TransferCompleted, TransferAborted and node events.

push an epidemic info bundle to one neighbor

process a received bundle

Update the neighbor database with the received filter. The filter was sent by the owner, so we assign the contained summary vector to the EID of the sender of this bundle.

Definition at line 271 of file EpidemicRoutingExtension.cpp.

References dtn::routing::NeighborDatabase::NeighborEntry::_filter, dtn::routing::NeighborDatabase::NeighborEntry::_lastupdate, dtn::data::PrimaryBlock::_source, dtn::routing::NeighborDatabase::NeighborEntry::acquireTransfer(), dtn::routing::BundleSummary::add(), dtn::data::BundleList::expire(), dtn::core::BundleStorage::get(), dtn::routing::NeighborDatabase::get(), dtn::routing::NeighborDatabase::getAvailable(), dtn::data::Bundle::getBlock(), dtn::routing::SummaryVector::getBloomFilter(), dtn::core::BundleStorage::getByDestination(), dtn::core::BundleStorage::getByFilter(), ibrcommon::Queue< T >::getnpop(), dtn::routing::EpidemicRoutingExtension::EpidemicExtensionBlock::getPurgeVector(), dtn::routing::BaseRouter::Extension::getRouter(), dtn::routing::BaseRouter::getStorage(), dtn::routing::EpidemicRoutingExtension::EpidemicExtensionBlock::getSummaryVector(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_DEBUG, ibrcommon::Queue< T >::push(), dtn::routing::NeighborDatabase::NeighborEntry::releaseTransfer(), dtn::core::BundleStorage::remove(), dtn::data::BundleID::toString(), dtn::routing::BaseRouter::transferTo(), dtn::routing::NeighborDatabase::updateBundles(), ibrcommon::Exception::what(), and ibrcommon::Thread::yield().

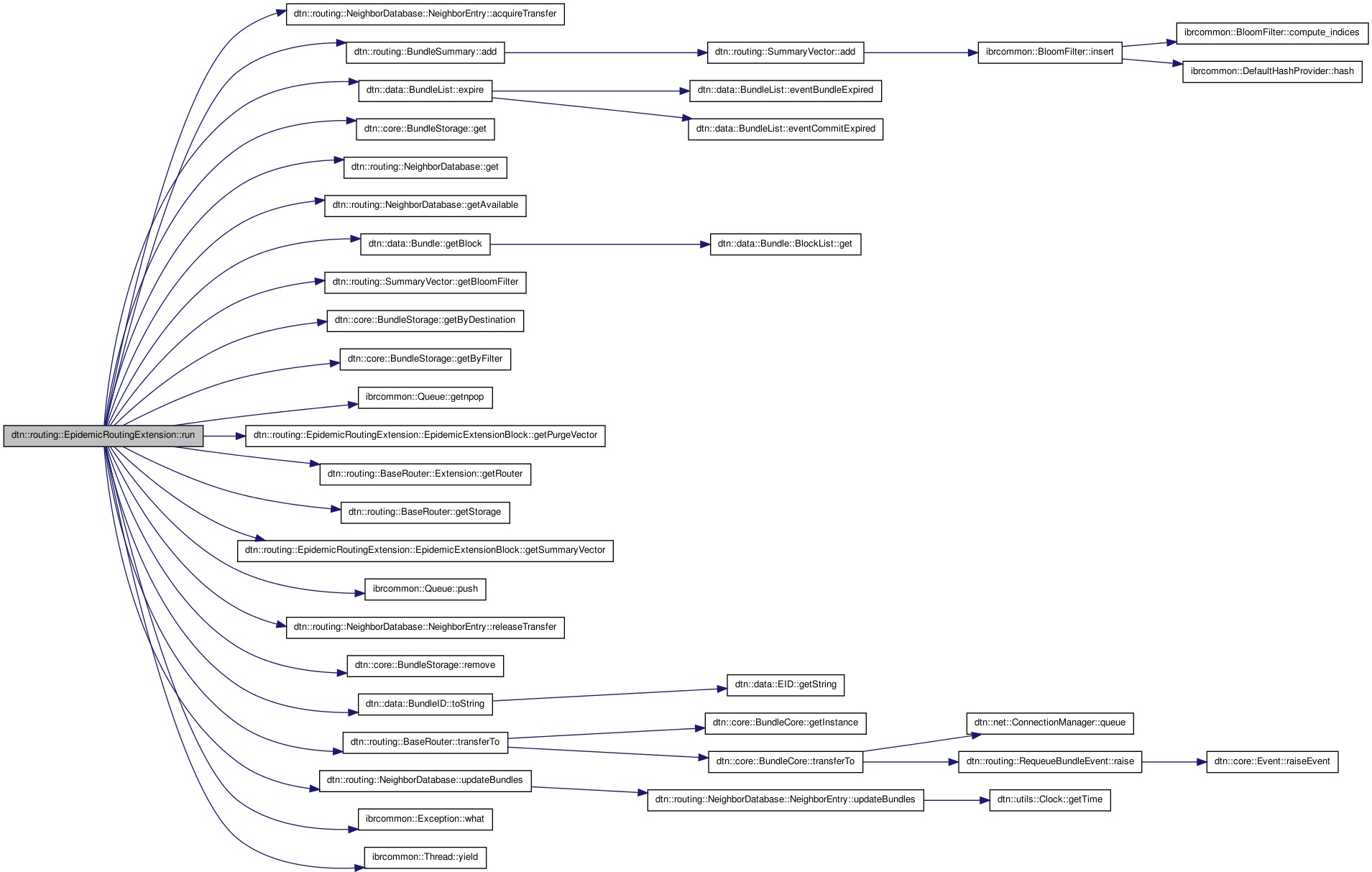

Here is the call graph for this function:

void dtn::routing::EpidemicRoutingExtension::stopExtension

(

)

[virtual]

Definition at line 76 of file EpidemicRoutingExtension.cpp.

References ibrcommon::Queue< T >::abort().

Here is the call graph for this function:

void dtn::routing::EpidemicRoutingExtension::update	(	std::string &	name,
		std::string &	data
	)			[virtual]

Updates an discovery service block with current values

Parameters:

	name
	data

Implements dtn::net::DiscoveryServiceProvider.

Definition at line 81 of file EpidemicRoutingExtension.cpp.

---

The documentation for this class was generated from the following files:

• daemon/src/routing/EpidemicRoutingExtension.h
• daemon/src/routing/EpidemicRoutingExtension.cpp
