#include <BundleStorage.h>

Inherited by dtn::core::SimpleBundleStorage, and dtn::core::SQLiteBundleStorage.

Classes
class	NoBundleFoundException
class	StorageSizeExeededException
Public Member Functions
virtual	~BundleStorage ()=0
void	addToFilter (const dtn::data::EID &eid)
virtual void	store (const dtn::data::Bundle &bundle)=0
virtual dtn::data::Bundle	get (const dtn::data::BundleID &id)=0
virtual const dtn::data::MetaBundle	getByDestination (const dtn::data::EID &eid, bool exact=false)=0
virtual const dtn::data::MetaBundle	getByFilter (const ibrcommon::BloomFilter &filter)=0
virtual void	remove (const dtn::data::BundleID &id)=0
void	remove (const dtn::data::Bundle &b)
virtual dtn::data::MetaBundle	remove (const ibrcommon::BloomFilter &filter)=0
virtual void	clear ()
virtual bool	empty ()
virtual unsigned int	count ()
virtual void	releaseCustody (dtn::data::BundleID &bundle)=0
void	acceptCustody (dtn::data::Bundle &bundle)
void	rejectCustody (const dtn::data::Bundle &bundle)
Protected Member Functions
	BundleStorage ()
Protected Attributes
std::set< dtn::data::EID >	_destination_filter

Detailed Description

Definition at line 24 of file BundleStorage.h.

Constructor & Destructor Documentation

dtn::core::BundleStorage::~BundleStorage ( ) [pure virtual]

destructor

Definition at line 23 of file BundleStorage.cpp.

dtn::core::BundleStorage::BundleStorage ( ) [protected]

constructor

Definition at line 18 of file BundleStorage.cpp.

References _destination_filter, and dtn::core::BundleCore::local.

Member Function Documentation

void dtn::core::BundleStorage::acceptCustody ( dtn::data::Bundle & bundle )

Accept custody for a given bundle. The bundle is modified by this method and contains us as future custodian. The previous custodian gets notified with a custody accept message.

Parameters:

bundle

Definition at line 37 of file BundleStorage.cpp.

References dtn::data::PrimaryBlock::_custodian, dtn::data::PrimaryBlock::_destination, dtn::data::PrimaryBlock::_procflags, dtn::data::PrimaryBlock::_source, dtn::data::CustodySignalBlock::_status, dtn::core::CUSTODY_ACCEPT, dtn::data::PrimaryBlock::CUSTODY_REQUESTED, dtn::core::BundleCore::local, dtn::data::Bundle::push_back(), dtn::core::CustodyEvent::raise(), dtn::core::BundleGeneratedEvent::raise(), and dtn::data::CustodySignalBlock::setMatch().

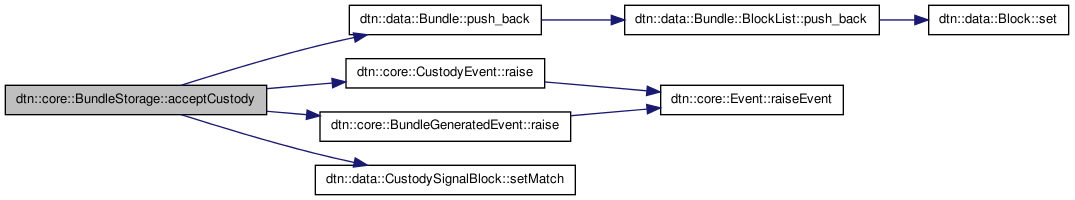

Here is the call graph for this function:

void dtn::core::BundleStorage::addToFilter ( const dtn::data::EID & eid )

Add a EID to the destination filter of the storage. This prevents search methods like getByFilter to return a bundle with an destination EID added to the filter.

Parameters:

eid

Definition at line 27 of file BundleStorage.cpp.

References _destination_filter.

Referenced by dtn::routing::EpidemicRoutingExtension::EpidemicRoutingExtension().

virtual void dtn::core::BundleStorage::clear ( ) [inline, virtual]

Clears all bundles and fragments in the storage.

Definition at line 108 of file BundleStorage.h.

virtual unsigned int dtn::core::BundleStorage::count ( ) [inline, virtual]

Returns:: the count of bundles in the storage

Definition at line 118 of file BundleStorage.h.

virtual bool dtn::core::BundleStorage::empty ( ) [inline, virtual]

Returns:: True, if no bundles in the storage.

Definition at line 113 of file BundleStorage.h.

virtual dtn::data::Bundle dtn::core::BundleStorage::get ( const dtn::data::BundleID & id ) [pure virtual]

This method returns a specific bundle which is identified by its id.

Parameters:

id

The ID of the bundle to return.

Returns:: A bundle object.

Referenced by dtn::routing::BaseRouter::getBundle(), dtn::net::UDPConvergenceLayer::queue(), dtn::net::LOWPANConvergenceLayer::queue(), dtn::net::HTTPConvergenceLayer::queue(), dtn::core::BundleCore::raiseEvent(), and dtn::routing::EpidemicRoutingExtension::run().

virtual const dtn::data::MetaBundle dtn::core::BundleStorage::getByDestination	(	const dtn::data::EID &	eid,
		bool	exact = `false`
	)			`[pure virtual]`

Query for a bundle with a specific destination. Set exact to true, if the application part should be compared too.

Parameters:

	eid
	exact

Returns:

Referenced by dtn::routing::EpidemicRoutingExtension::run().

virtual const dtn::data::MetaBundle dtn::core::BundleStorage::getByFilter ( const ibrcommon::BloomFilter & filter ) [pure virtual]

Returns a bundle ID which is not in the bloomfilter, but in the storage

Parameters:

filter

Returns:

Referenced by dtn::routing::FloodRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

void dtn::core::BundleStorage::rejectCustody ( const dtn::data::Bundle & bundle )

Reject custody for a given bundle. The custodian of this bundle gets notified with a custody reject message.

Parameters:

bundle

Definition at line 69 of file BundleStorage.cpp.

References dtn::data::PrimaryBlock::_custodian, dtn::data::PrimaryBlock::_destination, dtn::data::PrimaryBlock::_procflags, dtn::data::PrimaryBlock::_source, dtn::core::CUSTODY_REJECT, dtn::data::PrimaryBlock::CUSTODY_REQUESTED, dtn::core::BundleCore::local, dtn::data::Bundle::push_back(), dtn::core::CustodyEvent::raise(), dtn::core::BundleGeneratedEvent::raise(), and dtn::data::CustodySignalBlock::setMatch().

Here is the call graph for this function:

virtual void dtn::core::BundleStorage::releaseCustody ( dtn::data::BundleID & bundle ) [pure virtual]

This method is called if another node accepts custody for a bundle of us.

Parameters:

bundle

Referenced by dtn::core::BundleCore::raiseEvent().

virtual dtn::data::MetaBundle dtn::core::BundleStorage::remove ( const ibrcommon::BloomFilter & filter ) [pure virtual]

Remove one bundles which match this filter

Parameters:

filter

Returns:: The bundle meta data of the removed bundle.

void dtn::core::BundleStorage::remove ( const dtn::data::Bundle & b )

This method deletes a specific bundle in the storage. No reports will be generated here.

Parameters:

b

The bundle to remove.

Definition at line 32 of file BundleStorage.cpp.

virtual void dtn::core::BundleStorage::remove ( const dtn::data::BundleID & id ) [pure virtual]

This method deletes a specific bundle in the storage. No reports will be generated here.

Parameters:

id

The ID of the bundle to remove.

Referenced by dtn::routing::StaticRoutingExtension::notify(), dtn::routing::FloodRoutingExtension::notify(), dtn::routing::EpidemicRoutingExtension::notify(), dtn::core::BundleCore::raiseEvent(), and dtn::routing::EpidemicRoutingExtension::run().

virtual void dtn::core::BundleStorage::store ( const dtn::data::Bundle & bundle ) [pure virtual]

Stores a bundle in the storage.

Parameters:

bundle

The bundle to store.

Referenced by dtn::routing::BaseRouter::raiseEvent().

Member Data Documentation

std::set<dtn::data::EID> dtn::core::BundleStorage::_destination_filter [protected]

the destination query filter stores EID which are not returned by search methods like getByFilter()

Definition at line 152 of file BundleStorage.h.

Referenced by addToFilter(), BundleStorage(), and dtn::core::SimpleBundleStorage::getByFilter().

The documentation for this class was generated from the following files:

daemon/src/core/BundleStorage.h
daemon/src/core/BundleStorage.cpp
