dtn::routing::BaseRouter Class Reference

#include <BaseRouter.h>

Inherits dtn::core::EventReceiver, and dtn::daemon::IntegratedComponent.

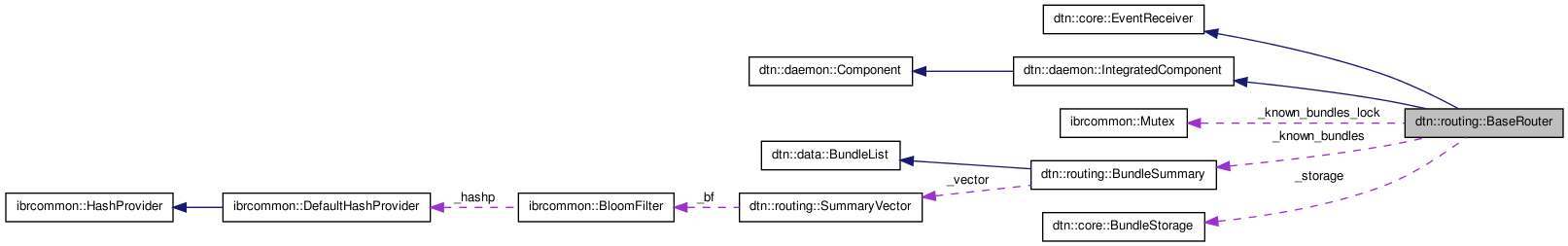

Collaboration diagram for dtn::routing::BaseRouter:

List of all members.

Classes
class	Endpoint
class	Extension
class	NoNeighbourFoundException
class	NoRouteFoundException
class	RoutingException
class	ThreadedExtension
class	VirtualEndpoint
Public Member Functions
	BaseRouter (dtn::core::BundleStorage &storage)
	~BaseRouter ()
void	addExtension (BaseRouter::Extension *extension)
void	transferTo (const dtn::data::EID &destination, const dtn::data::BundleID &id)
void	raiseEvent (const dtn::core::Event *evt)
dtn::data::Bundle	getBundle (const dtn::data::BundleID &id)
dtn::core::BundleStorage &	getStorage ()
bool	isKnown (const dtn::data::BundleID &id)
void	setKnown (const dtn::data::MetaBundle &meta)
const SummaryVector	getSummaryVector ()
virtual const std::string	getName () const
Protected Member Functions
virtual void	componentUp ()
virtual void	componentDown ()

---

Detailed Description

Definition at line 25 of file BaseRouter.h.

---

Constructor & Destructor Documentation

dtn::routing::BaseRouter::BaseRouter

(

dtn::core::BundleStorage &

storage

)

implementation of the BaseRouter class

Definition at line 79 of file BaseRouter.cpp.

dtn::routing::BaseRouter::~BaseRouter

(

)

Definition at line 86 of file BaseRouter.cpp.

---

Member Function Documentation

void dtn::routing::BaseRouter::addExtension

(

BaseRouter::Extension *

extension

)

Add a routing extension to the routing core.

Parameters:

extension

Definition at line 94 of file BaseRouter.cpp.

Referenced by main().

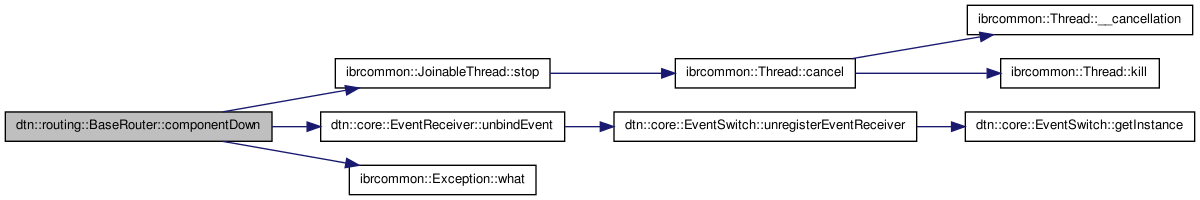

void dtn::routing::BaseRouter::componentDown

(

)

[protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 127 of file BaseRouter.cpp.

References dtn::core::BundleGeneratedEvent::className, dtn::core::TimeEvent::className, dtn::core::BundleExpiredEvent::className, dtn::core::NodeEvent::className, dtn::routing::RequeueBundleEvent::className, dtn::routing::QueueBundleEvent::className, dtn::net::BundleReceivedEvent::className, dtn::net::TransferCompletedEvent::className, dtn::net::TransferAbortedEvent::className, IBRCOMMON_LOGGER, ibrcommon::JoinableThread::stop(), dtn::core::EventReceiver::unbindEvent(), and ibrcommon::Exception::what().

Here is the call graph for this function:

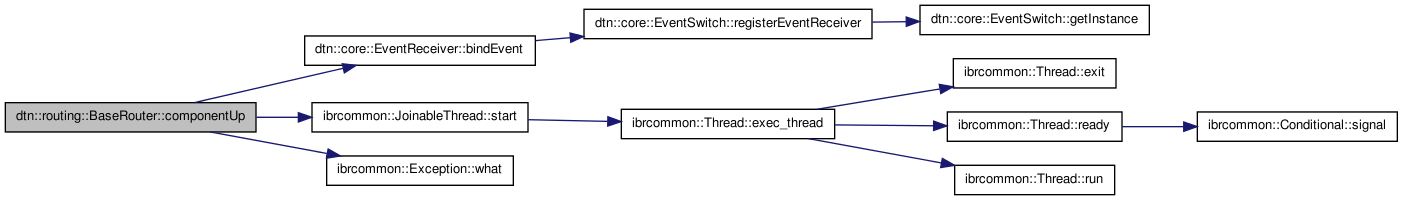

void dtn::routing::BaseRouter::componentUp

(

)

[protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 99 of file BaseRouter.cpp.

References dtn::core::EventReceiver::bindEvent(), dtn::core::BundleGeneratedEvent::className, dtn::core::TimeEvent::className, dtn::core::BundleExpiredEvent::className, dtn::core::NodeEvent::className, dtn::routing::RequeueBundleEvent::className, dtn::routing::QueueBundleEvent::className, dtn::net::BundleReceivedEvent::className, dtn::net::TransferCompletedEvent::className, dtn::net::TransferAbortedEvent::className, IBRCOMMON_LOGGER, ibrcommon::JoinableThread::start(), and ibrcommon::Exception::what().

Here is the call graph for this function:

dtn::data::Bundle dtn::routing::BaseRouter::getBundle

(

const dtn::data::BundleID &

id

)

Get a bundle out of the storage.

Parameters:

id

The ID of the bundle.

Returns:

The requested bundle.

Definition at line 279 of file BaseRouter.cpp.

References dtn::core::BundleStorage::get().

Here is the call graph for this function:

const std::string dtn::routing::BaseRouter::getName

(

)

const [virtual]

See also:

Component::getName()

Implements dtn::daemon::Component.

Definition at line 308 of file BaseRouter.cpp.

dtn::core::BundleStorage & dtn::routing::BaseRouter::getStorage

(

)

Definition at line 284 of file BaseRouter.cpp.

Referenced by dtn::routing::EpidemicRoutingExtension::EpidemicRoutingExtension(), dtn::routing::NeighborRoutingExtension::NeighborRoutingExtension(), dtn::routing::StaticRoutingExtension::notify(), dtn::routing::FloodRoutingExtension::notify(), dtn::routing::EpidemicRoutingExtension::notify(), dtn::routing::FloodRoutingExtension::run(), dtn::routing::EpidemicRoutingExtension::run(), and dtn::routing::StaticRoutingExtension::StaticRoutingExtension().

const SummaryVector dtn::routing::BaseRouter::getSummaryVector

(

)

Definition at line 302 of file BaseRouter.cpp.

References dtn::routing::BundleSummary::getSummaryVector().

Here is the call graph for this function:

bool dtn::routing::BaseRouter::isKnown

(

const dtn::data::BundleID &

id

)

This method returns true, if the given BundleID is known.

Parameters:

id

Returns:

Definition at line 296 of file BaseRouter.cpp.

References dtn::routing::BundleSummary::contains().

Referenced by raiseEvent().

Here is the call graph for this function:

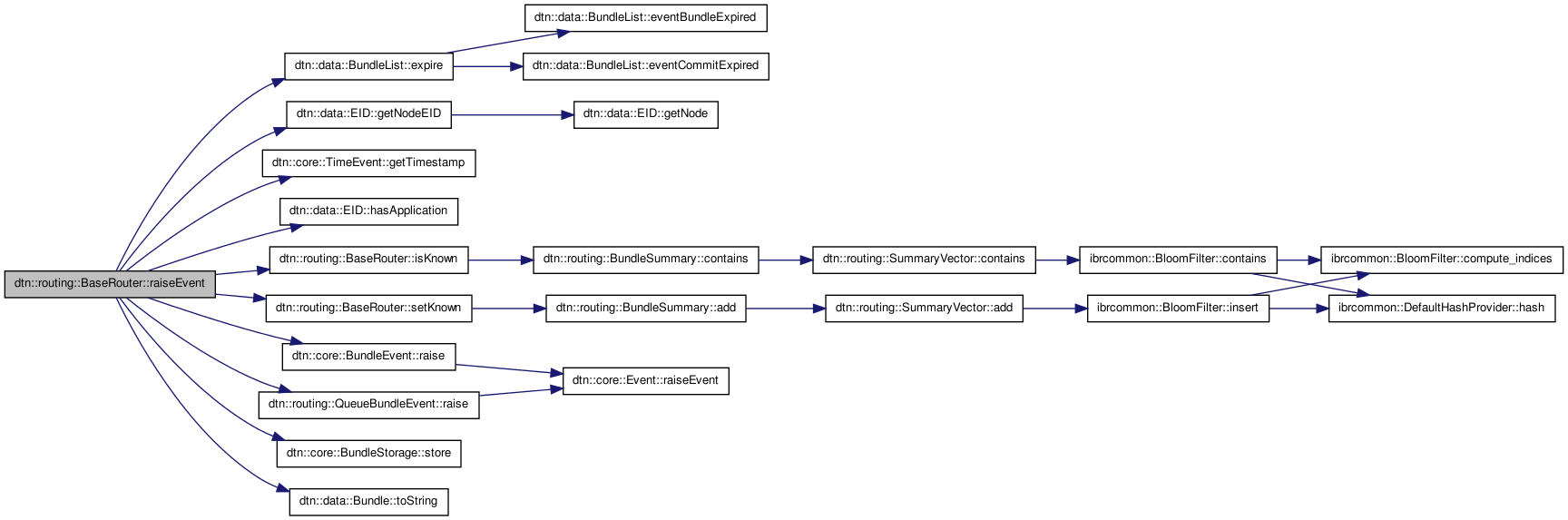

void dtn::routing::BaseRouter::raiseEvent

(

const dtn::core::Event *

evt

)

method to receive new events from the EventSwitch

Definition at line 172 of file BaseRouter.cpp.

References dtn::routing::QueueBundleEvent::bundle, dtn::core::BundleGeneratedEvent::bundle, dtn::net::BundleReceivedEvent::bundle, dtn::core::BUNDLE_RECEIVED, dtn::data::MetaBundle::destination, dtn::data::BundleList::expire(), dtn::net::BundleReceivedEvent::fromlocal, dtn::data::EID::getNodeEID(), dtn::core::TimeEvent::getTimestamp(), dtn::data::EID::hasApplication(), IBRCOMMON_LOGGER, isKnown(), dtn::core::BundleCore::local, dtn::net::BundleReceivedEvent::peer, dtn::core::BundleEvent::raise(), dtn::routing::QueueBundleEvent::raise(), setKnown(), dtn::core::BundleStorage::store(), and dtn::data::Bundle::toString().

Here is the call graph for this function:

void dtn::routing::BaseRouter::setKnown

(

const dtn::data::MetaBundle &

meta

)

This method add a BundleID to the set of known bundles

Parameters:

id

Definition at line 289 of file BaseRouter.cpp.

References dtn::routing::BundleSummary::add().

Referenced by raiseEvent().

Here is the call graph for this function:

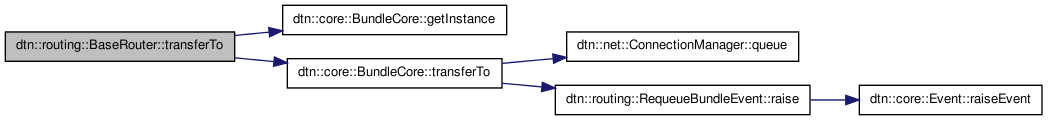

void dtn::routing::BaseRouter::transferTo	(	const dtn::data::EID &	destination,
		const dtn::data::BundleID &	id
	)

Transfer one bundle to another node.

Exceptions:

BundleNotFoundException

if the bundle do not exist.

Parameters:

	destination	The EID of the other node.
	id	The ID of the bundle to transfer. This bundle must be stored in the storage.

Definition at line 164 of file BaseRouter.cpp.

References dtn::core::BundleCore::getInstance(), and dtn::core::BundleCore::transferTo().

Referenced by dtn::routing::RetransmissionExtension::notify(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• daemon/src/routing/BaseRouter.h
• daemon/src/routing/BaseRouter.cpp
