#include <Client.h>

Inherits dtn::streams::StreamConnection, and dtn::streams::StreamConnection::Callback.

Inherited by CAPIGateway, EchoClient, Tracer, and TUN2BundleGateway.

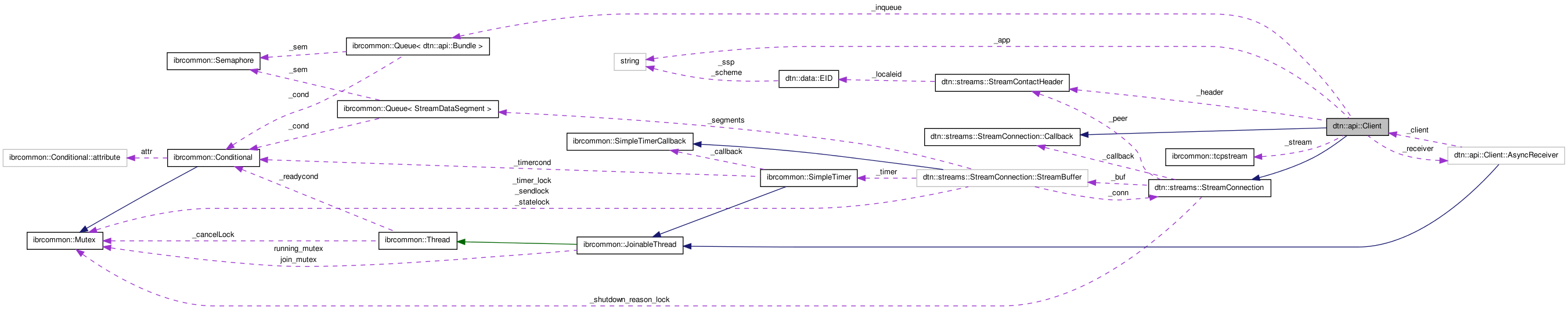

Collaboration diagram for dtn::api::Client:

Classes
class	AsyncReceiver
Public Types
enum	COMMUNICATION_MODE { MODE_BIDIRECTIONAL = 0, MODE_SENDONLY = 1 }
Public Member Functions
	Client (COMMUNICATION_MODE mode, string app, ibrcommon::tcpstream &stream)
	Client (string app, ibrcommon::tcpstream &stream)
virtual	~Client ()
void	connect ()
bool	isConnected ()
void	close ()
virtual void	eventShutdown (StreamConnection::ConnectionShutdownCases csc)
virtual void	eventTimeout ()
virtual void	eventError ()
virtual void	eventConnectionUp (const StreamContactHeader &header)
virtual void	eventConnectionDown ()
virtual void	eventBundleRefused ()
virtual void	eventBundleForwarded ()
virtual void	eventBundleAck (size_t ack)
dtn::api::Bundle	getBundle (size_t timeout=0)
Public Attributes
size_t	lastack
Protected Member Functions
virtual void	received (const dtn::streams::StreamContactHeader &h)
virtual void	received (const dtn::api::Bundle &b)

Detailed Description

This is an abstract class is the base for any API connection to a IBR-DTN daemon. It uses a existing stream to communicate bidirectional with the daemon.

For asynchronous reception of bundle this class implements a thread.

Definition at line 59 of file Client.h.

Member Enumeration Documentation

enum dtn::api::Client::COMMUNICATION_MODE

Enumerator:

MODE_BIDIRECTIONAL
MODE_SENDONLY

Definition at line 83 of file Client.h.

Constructor & Destructor Documentation

dtn::api::Client::Client	(	COMMUNICATION_MODE	mode,
		string	app,
		ibrcommon::tcpstream &	stream
	)

Constructor for the API Connection. At least a application suffix and a existing stream are required. The suffix is appended to the node id of the daemon. E.g. dtn://node1/example (in this case is "example" the application id. The stream connects the daemon and this application together and will be used with the bundle protocol for TCP (draft-irtf-dtnrg-tcp-clayer-02) provided by the StreamConnection class.

Definition at line 73 of file Client.cpp.

dtn::api::Client::Client	(	string	app,
		ibrcommon::tcpstream &	stream
	)

Definition at line 78 of file Client.cpp.

dtn::api::Client::~Client ( ) [virtual]

Virtual destructor for this class.

Definition at line 83 of file Client.cpp.

References IBRCOMMON_LOGGER_DEBUG, and ibrcommon::Exception::what().

Here is the call graph for this function:

Member Function Documentation

void dtn::api::Client::close ( )

Definition at line 124 of file Client.cpp.

References dtn::streams::StreamConnection::shutdown().

Referenced by main(), and term().

Here is the call graph for this function:

void dtn::api::Client::connect ( )

This method starts the thread and execute the handshake with the server.

Definition at line 94 of file Client.cpp.

References dtn::streams::StreamConnection::handshake(), IBRCOMMON_LOGGER, MODE_SENDONLY, and ibrcommon::Exception::what().

Referenced by main().

Here is the call graph for this function:

void dtn::api::Client::eventBundleAck ( size_t ack ) [virtual]

This method is called if a ACK is received.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 172 of file Client.cpp.

References lastack.

void dtn::api::Client::eventBundleForwarded ( ) [virtual]

This method is called if a bundle is refused by the peer.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 167 of file Client.cpp.

void dtn::api::Client::eventBundleRefused ( ) [virtual]

This method is called if a bundle is refused by the peer.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 162 of file Client.cpp.

void dtn::api::Client::eventConnectionDown ( ) [virtual]

This method is called if a connection went down.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 150 of file Client.cpp.

References ibrcommon::Queue< T >::abort(), IBRCOMMON_LOGGER_DEBUG, and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::api::Client::eventConnectionUp ( const StreamContactHeader & header ) [virtual]

This method is called if a handshake was successful.

Parameters:

header

Implements dtn::streams::StreamConnection::Callback.

Definition at line 142 of file Client.cpp.

void dtn::api::Client::eventError ( ) [virtual]

This method is called if a error occured in the stream.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 146 of file Client.cpp.

void dtn::api::Client::eventShutdown ( StreamConnection::ConnectionShutdownCases csc ) [virtual]

this method gets called if the connection goes down

Implements dtn::streams::StreamConnection::Callback.

Definition at line 138 of file Client.cpp.

void dtn::api::Client::eventTimeout ( ) [virtual]

This method is called if the stream is closed by a TIMEOUT.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 134 of file Client.cpp.

dtn::api::Bundle dtn::api::Client::getBundle ( size_t timeout = 0 )

Definition at line 185 of file Client.cpp.

References ibrcommon::Queue< T >::getnpop(), ibrcommon::QueueUnblockedException::QUEUE_ABORT, ibrcommon::QueueUnblockedException::QUEUE_TIMEOUT, ibrcommon::QueueUnblockedException::reason, and ibrcommon::Exception::what().

Referenced by main().

Here is the call graph for this function:

bool dtn::api::Client::isConnected ( )

Returns:: True, if the Client is connected to the daemon.

Definition at line 119 of file Client.cpp.

void dtn::api::Client::received ( const dtn::streams::StreamContactHeader & h ) [protected, virtual]

This method is called on the receipt of the handshake of the daemon. If you like to validate your connection you could overload this method, but must call the super method.

Definition at line 129 of file Client.cpp.

void dtn::api::Client::received ( const dtn::api::Bundle & b ) [protected, virtual]

Definition at line 177 of file Client.cpp.

References MODE_SENDONLY, and ibrcommon::Queue< T >::push().

Here is the call graph for this function:
