Public Types | Public Member Functions | Protected Member Functions | Protected Attributes | Friends

dtn::api::Bundle Class Reference

#include <Bundle.h>

Inherited by dtn::api::BLOBBundle, dtn::api::FileBundle, and dtn::api::StringBundle.

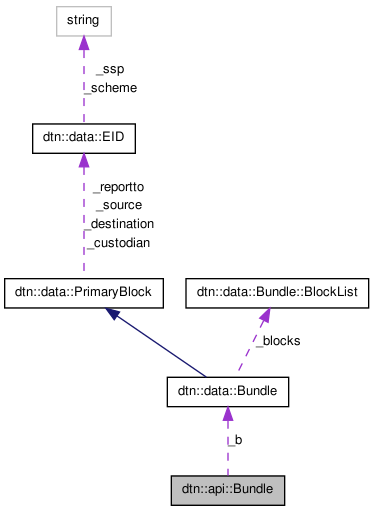

Collaboration diagram for dtn::api::Bundle:
Collaboration graph
[legend]

List of all members.

Public Types

enum  BUNDLE_SECURITY { SEC_OFF = 0, SEC_SIGNED = 1, SEC_ENCRYPTED = 2, SEC_ENC_SIGNED = 3 }
enum  BUNDLE_PRIORITY { PRIO_LOW = 0, PRIO_MEDIUM = 1, PRIO_HIGH = 2 }

Public Member Functions

 Bundle ()
 Bundle (dtn::data::EID destination)
virtual ~Bundle ()
void setSecurity (BUNDLE_SECURITY s)
BUNDLE_SECURITY getSecurity ()
void setLifetime (unsigned int lifetime)
unsigned int getLifetime ()
void requestDeliveredReport ()
void requestForwardedReport ()
void requestDeletedReport ()
void requestReceptionReport ()
void setPriority (BUNDLE_PRIORITY p)
BUNDLE_PRIORITY getPriority ()
ibrcommon::BLOB::Reference getData ()
dtn::data::EID getDestination ()
dtn::data::EID getSource ()
void setReportTo (const dtn::data::EID &eid)
bool operator< (const Bundle &other) const
bool operator> (const Bundle &other) const

Protected Member Functions

 Bundle (dtn::data::Bundle &b)

Protected Attributes

dtn::data::Bundle _b
BUNDLE_SECURITY _security
BUNDLE_PRIORITY _priority
unsigned int _lifetime

Friends

class Client
std::ostream & operator<< (std::ostream &stream, const dtn::api::Bundle &b)
std::istream & operator>> (std::istream &stream, dtn::api::Bundle &b)

Detailed Description

This bundle object should be used by the applications to create, send and receive bundles.

Definition at line 30 of file Bundle.h.

Member Enumeration Documentation

enum dtn::api::Bundle::BUNDLE_PRIORITY

Define the Bundle Priorities PRIO_LOW low priority for this bundle PRIO_MEDIUM medium priority for this bundle PRIO_HIGH high priority for this bundle

Enumerator:
PRIO_LOW
PRIO_MEDIUM
PRIO_HIGH

Definition at line 56 of file Bundle.h.

enum dtn::api::Bundle::BUNDLE_SECURITY

Define the Bundle Security Mode SEC_OFF no security actions will be taken SEC_SIGNED the bundle will be signed before leaving SEC_ENCRYPTED the bundle will be encrypted before leaving SEC_ENC_SIGNED the bundle will be singed and encrypted before leaving

Enumerator:
SEC_OFF
SEC_SIGNED
SEC_ENCRYPTED
SEC_ENC_SIGNED

Definition at line 42 of file Bundle.h.

Constructor & Destructor Documentation

dtn::api::Bundle::Bundle (  )

Constructor for a bundle object without a destination

Definition at line 17 of file Bundle.cpp.

References _b, _security, dtn::data::PrimaryBlock::_source, dtn::api::SecurityManager::getDefault(), PRIO_MEDIUM, and setPriority().

Here is the call graph for this function:

dtn::api::Bundle::Bundle ( dtn::data::EID  destination  )

Constructor for a bundle object

Parameters:
destination defines the destination of this bundle.

Definition at line 41 of file Bundle.cpp.

References _b, dtn::data::PrimaryBlock::_destination, _security, dtn::api::SecurityManager::getDefault(), PRIO_MEDIUM, and setPriority().

Here is the call graph for this function:

dtn::api::Bundle::~Bundle (  )  [virtual]

Destructor

Definition at line 49 of file Bundle.cpp.

dtn::api::Bundle::Bundle ( dtn::data::Bundle &  b  )  [protected]

Constructor for a bundle object.

Parameters:
b include a bundle of the data library in this bundle.

Definition at line 26 of file Bundle.cpp.

References _b, _priority, dtn::data::PrimaryBlock::_procflags, dtn::data::PrimaryBlock::PRIORITY_BIT1, and dtn::data::PrimaryBlock::PRIORITY_BIT2.

Member Function Documentation

ibrcommon::BLOB::Reference dtn::api::Bundle::getData (  )

Returns a reference to the data block of this bundle.

Definition at line 131 of file Bundle.cpp.

References _b, dtn::data::PayloadBlock::getBLOB(), and dtn::data::Bundle::getBlock().

Referenced by main().

Here is the call graph for this function:

dtn::data::EID dtn::api::Bundle::getDestination (  )

Definition at line 116 of file Bundle.cpp.

References _b, and dtn::data::PrimaryBlock::_destination.

unsigned int dtn::api::Bundle::getLifetime (  )

Returns the lifetime of a bundle

Definition at line 61 of file Bundle.cpp.

References _lifetime.

Referenced by main().

Bundle::BUNDLE_PRIORITY dtn::api::Bundle::getPriority (  )

Returns the priority for this bundle.

Definition at line 86 of file Bundle.cpp.

References _priority.

BUNDLE_SECURITY dtn::api::Bundle::getSecurity (  )

Returns the security parameters for this bundle.

dtn::data::EID dtn::api::Bundle::getSource (  )

Definition at line 126 of file Bundle.cpp.

References _b, and dtn::data::PrimaryBlock::_source.

Referenced by main().

bool dtn::api::Bundle::operator< ( const Bundle &  other  )  const

Definition at line 141 of file Bundle.cpp.

References _b.

bool dtn::api::Bundle::operator> ( const Bundle &  other  )  const

Definition at line 146 of file Bundle.cpp.

References _b.

void dtn::api::Bundle::requestDeletedReport (  )

Definition at line 76 of file Bundle.cpp.

References _b, dtn::data::PrimaryBlock::REQUEST_REPORT_OF_BUNDLE_DELETION, and dtn::data::PrimaryBlock::set().

Here is the call graph for this function:

void dtn::api::Bundle::requestDeliveredReport (  )

Definition at line 66 of file Bundle.cpp.

References _b, dtn::data::PrimaryBlock::REQUEST_REPORT_OF_BUNDLE_DELIVERY, and dtn::data::PrimaryBlock::set().

Here is the call graph for this function:

void dtn::api::Bundle::requestForwardedReport (  )

Definition at line 71 of file Bundle.cpp.

References _b, dtn::data::PrimaryBlock::REQUEST_REPORT_OF_BUNDLE_FORWARDING, and dtn::data::PrimaryBlock::set().

Here is the call graph for this function:

void dtn::api::Bundle::requestReceptionReport (  )

Definition at line 81 of file Bundle.cpp.

References _b, dtn::data::PrimaryBlock::REQUEST_REPORT_OF_BUNDLE_RECEPTION, and dtn::data::PrimaryBlock::set().

Here is the call graph for this function:

void dtn::api::Bundle::setLifetime ( unsigned int  lifetime  )

Set the lifetime of a bundle

Definition at line 53 of file Bundle.cpp.

References _b, dtn::data::PrimaryBlock::_lifetime, and _lifetime.

Referenced by main().

void dtn::api::Bundle::setPriority ( Bundle::BUNDLE_PRIORITY  p  )

Set the priority for this bundle.

Definition at line 91 of file Bundle.cpp.

References _b, _priority, dtn::data::PrimaryBlock::_procflags, PRIO_HIGH, PRIO_LOW, and PRIO_MEDIUM.

Referenced by Bundle(), and main().

void dtn::api::Bundle::setReportTo ( const dtn::data::EID &  eid  )

Definition at line 121 of file Bundle.cpp.

References _b, and dtn::data::PrimaryBlock::_reportto.

void dtn::api::Bundle::setSecurity ( BUNDLE_SECURITY  s  )

Set the security parameters for this bundle.

Friends And Related Function Documentation

friend class Client [friend]

Definition at line 32 of file Bundle.h.

std::ostream& operator<< ( std::ostream &  stream,
const dtn::api::Bundle &  b
) [friend]

Serialize a Bundle into a stream.

Definition at line 117 of file Bundle.h.

std::istream& operator>> ( std::istream &  stream,
dtn::api::Bundle &  b
) [friend]

Definition at line 127 of file Bundle.h.

Member Data Documentation

dtn::data::Bundle dtn::api::Bundle::_b [protected]

Definition at line 167 of file Bundle.h.

Referenced by dtn::api::BLOBBundle::BLOBBundle(), Bundle(), dtn::api::FileBundle::FileBundle(), getData(), getDestination(), getSource(), operator<(), operator>(), requestDeletedReport(), requestDeliveredReport(), requestForwardedReport(), requestReceptionReport(), setLifetime(), setPriority(), and setReportTo().

unsigned int dtn::api::Bundle::_lifetime [protected]

Definition at line 170 of file Bundle.h.

Referenced by getLifetime(), and setLifetime().

BUNDLE_PRIORITY dtn::api::Bundle::_priority [protected]

Definition at line 169 of file Bundle.h.

Referenced by Bundle(), getPriority(), and setPriority().

BUNDLE_SECURITY dtn::api::Bundle::_security [protected]

Definition at line 168 of file Bundle.h.

Referenced by Bundle().

The documentation for this class was generated from the following files:
