IBR-DTNSuite  0.12
Public Member Functions | Protected Member Functions | List of all members
dtn::net::IPNDAgent Class Reference

#include <IPNDAgent.h>

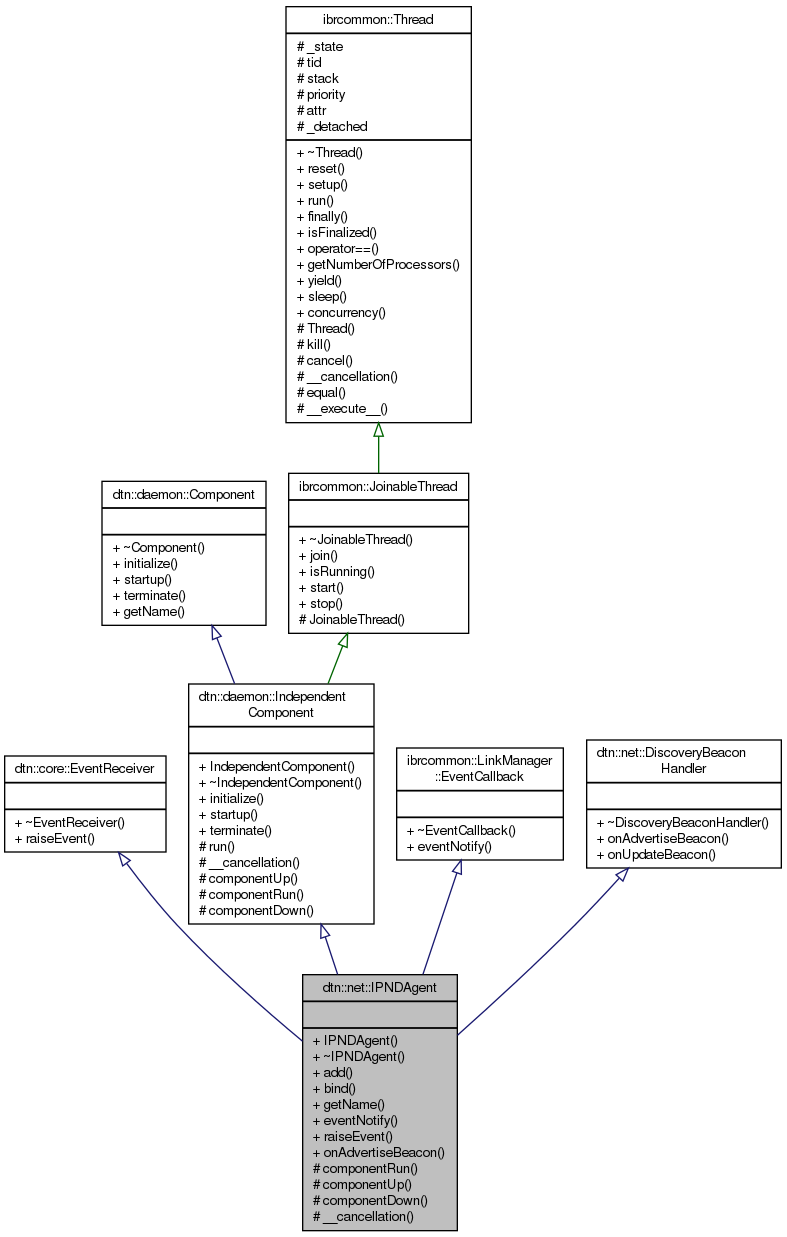

Inheritance diagram for dtn::net::IPNDAgent:
Inheritance graph

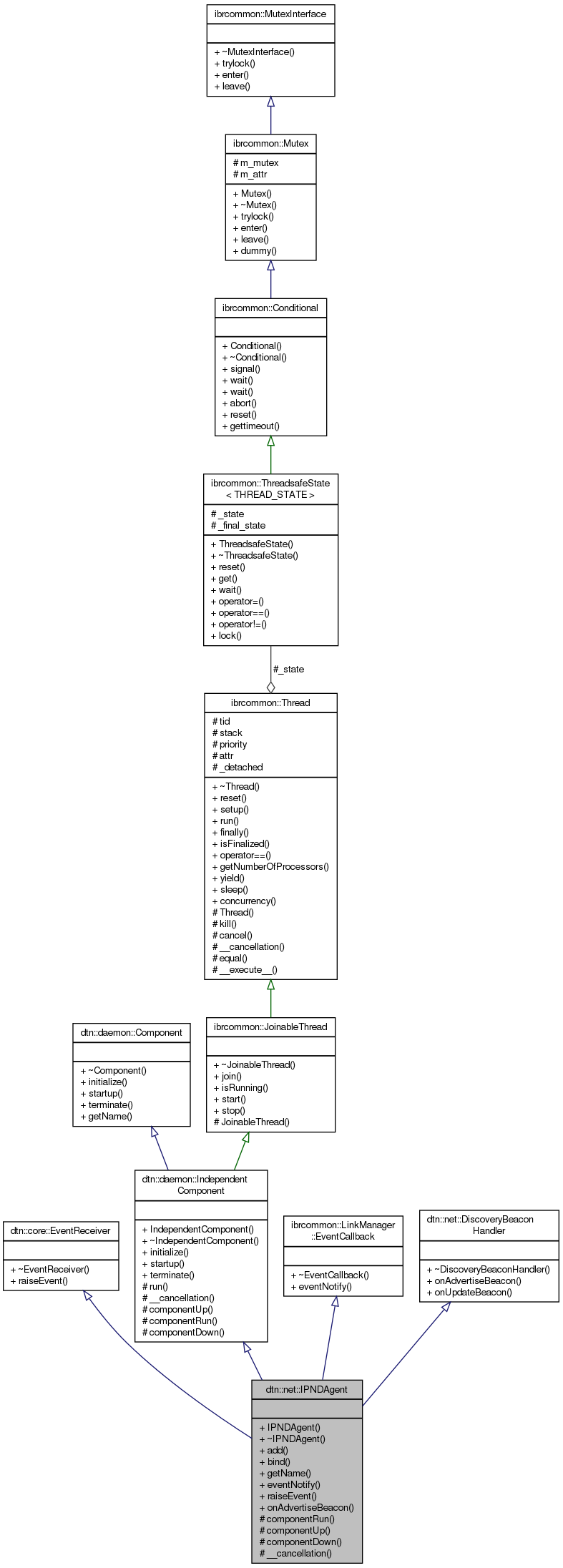

Collaboration diagram for dtn::net::IPNDAgent:
Collaboration graph

Public Member Functions

 IPNDAgent (int port)

virtual ~IPNDAgent ()

void add (const ibrcommon::vaddress &address)

void bind (const ibrcommon::vinterface &net)

virtual const std::string getName () const

void eventNotify (const ibrcommon::LinkEvent &evt)

void raiseEvent (const dtn::core::Event *evt) throw ()

void onAdvertiseBeacon (const ibrcommon::vinterface &iface, const DiscoveryBeacon &beacon) throw ()

- Public Member Functions inherited from dtn::core::EventReceiver
virtual ~EventReceiver ()=0

- Public Member Functions inherited from dtn::daemon::IndependentComponent
 IndependentComponent ()

virtual ~IndependentComponent ()

virtual void initialize () throw ()

virtual void startup () throw ()

virtual void terminate () throw ()

- Public Member Functions inherited from dtn::daemon::Component
virtual ~Component ()=0

- Public Member Functions inherited from ibrcommon::LinkManager::EventCallback
virtual ~EventCallback ()

- Public Member Functions inherited from dtn::net::DiscoveryBeaconHandler
virtual ~DiscoveryBeaconHandler ()=0

virtual void onUpdateBeacon (const ibrcommon::vinterface &iface, DiscoveryBeacon &beacon) throw (NoServiceHereException)


Protected Member Functions

virtual void componentRun () throw ()

virtual void componentUp () throw ()

virtual void componentDown () throw ()

void __cancellation () throw ()

- Protected Member Functions inherited from dtn::daemon::IndependentComponent
void run () throw ()

- Protected Member Functions inherited from ibrcommon::JoinableThread
virtual ~JoinableThread ()=0

void join (void) throw (ThreadException)

bool isRunning (void)

void start (int priority=0) throw (ThreadException)

void stop () throw ()

 JoinableThread (size_t size=DEFAULT_STACKSIZE)


Additional Inherited Members

Detailed Description

Definition at line 44 of file IPNDAgent.h.

Constructor & Destructor Documentation

dtn::net::IPNDAgent::IPNDAgent ( int  port)

Definition at line 54 of file IPNDAgent.cpp.

dtn::net::IPNDAgent::~IPNDAgent ( )
virtual

Definition at line 63 of file IPNDAgent.cpp.

References ibrcommon::vsocket::destroy().

Here is the call graph for this function:

Member Function Documentation

void dtn::net::IPNDAgent::__cancellation ( )
throw (
)
protectedvirtual

This method is called after componentDown() and should should guarantee that blocking calls in componentRun() will unblock.

Implements dtn::daemon::IndependentComponent.

Definition at line 520 of file IPNDAgent.cpp.

References ibrcommon::vsocket::down().

Here is the call graph for this function:

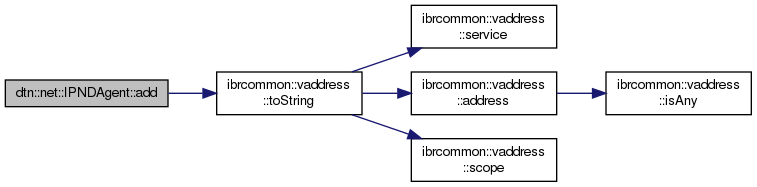

void dtn::net::IPNDAgent::add ( const ibrcommon::vaddress &  address)

Definition at line 68 of file IPNDAgent.cpp.

References IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::LogLevel::info, and ibrcommon::vaddress::toString().

Here is the call graph for this function:

void dtn::net::IPNDAgent::bind ( const ibrcommon::vinterface &  net)

Definition at line 73 of file IPNDAgent.cpp.

References IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::LogLevel::info, and ibrcommon::vinterface::toString().

Here is the call graph for this function:

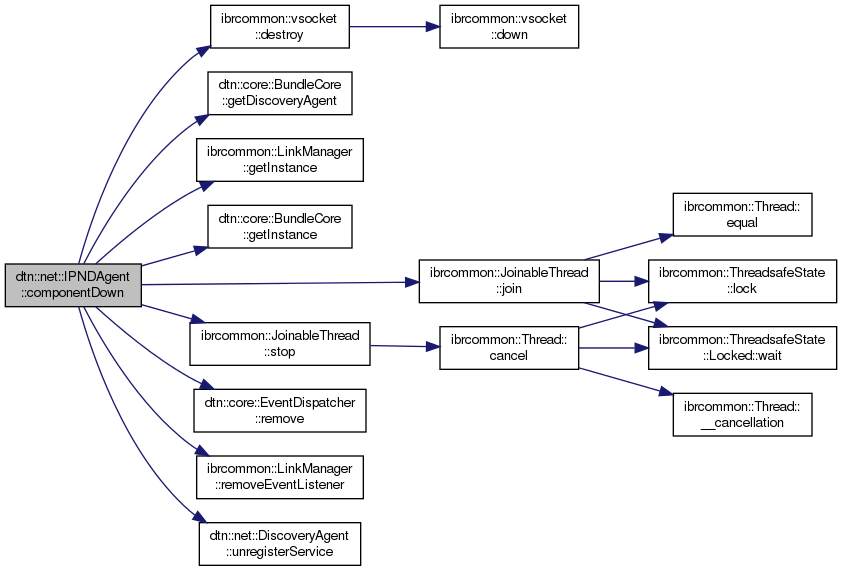

void dtn::net::IPNDAgent::componentDown ( )
throw (
)
protectedvirtual

This method is called if the component should stop. Clean-up code should be inserted here.

Implements dtn::daemon::IndependentComponent.

Definition at line 410 of file IPNDAgent.cpp.

References ibrcommon::vsocket::destroy(), dtn::core::BundleCore::getDiscoveryAgent(), ibrcommon::LinkManager::getInstance(), dtn::core::BundleCore::getInstance(), ibrcommon::JoinableThread::join(), dtn::core::EventDispatcher< E >::remove(), ibrcommon::LinkManager::removeEventListener(), ibrcommon::JoinableThread::stop(), and dtn::net::DiscoveryAgent::unregisterService().

Here is the call graph for this function:

void dtn::net::IPNDAgent::componentRun ( )
throw (
)
protectedvirtual

This is the run method. The component should loop in there until componentDown() or __cancellation() is called.

Implements dtn::daemon::IndependentComponent.

Definition at line 431 of file IPNDAgent.cpp.

References ibrcommon::vaddress::address(), dtn::core::Node::CONN_TCPIP, ibrcommon::LogLevel::error, dtn::core::BundleCore::getDiscoveryAgent(), dtn::core::BundleCore::getInstance(), dtn::net::DiscoveryService::getParameters(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, dtn::net::DiscoveryAgent::obtainBeacon(), dtn::net::DiscoveryAgent::onBeaconReceived(), ibrcommon::datagramsocket::recvfrom(), ibrcommon::vsocket::select(), dtn::net::DiscoveryBeacon::setEID(), dtn::net::DiscoveryService::update(), ibrcommon::Exception::what(), and ibrcommon::Thread::yield().

Here is the call graph for this function:

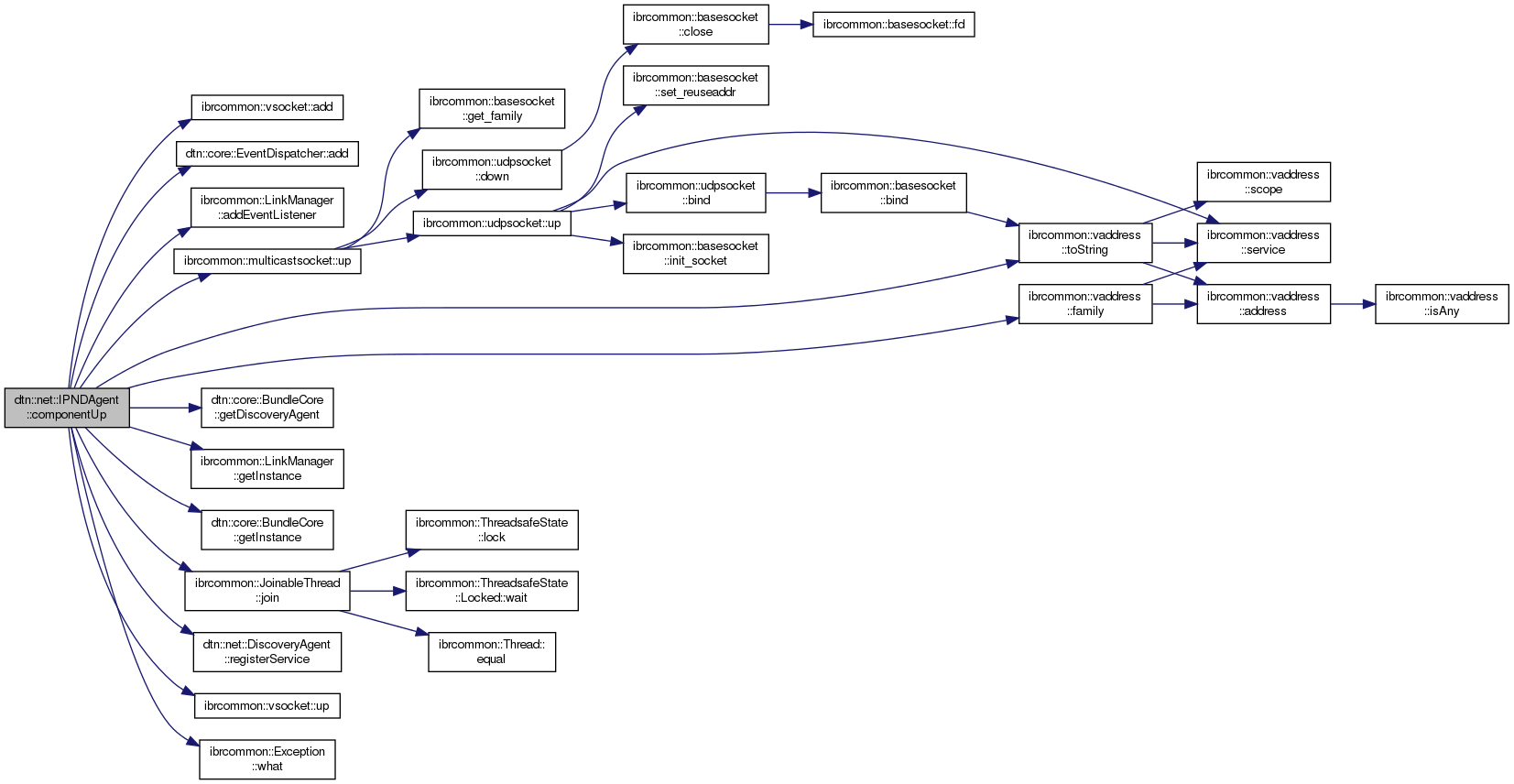

void dtn::net::IPNDAgent::componentUp ( )
throw (
)
protectedvirtual

Is called in preparation of the component. Before componentRun() is called.

Implements dtn::daemon::IndependentComponent.

Definition at line 338 of file IPNDAgent.cpp.

References ibrcommon::vsocket::add(), dtn::core::EventDispatcher< E >::add(), ibrcommon::LinkManager::addEventListener(), ibrcommon::LogLevel::error, ibrcommon::vaddress::family(), dtn::core::BundleCore::getDiscoveryAgent(), ibrcommon::LinkManager::getInstance(), dtn::core::BundleCore::getInstance(), IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::JoinableThread::join(), dtn::net::DiscoveryAgent::registerService(), ibrcommon::vaddress::toString(), ibrcommon::vsocket::up(), ibrcommon::multicastsocket::up(), and ibrcommon::Exception::what().

Here is the call graph for this function:

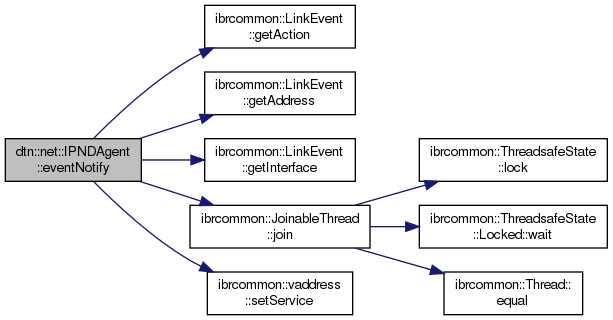

void dtn::net::IPNDAgent::eventNotify ( const ibrcommon::LinkEvent &  evt)
virtual

Implements ibrcommon::LinkManager::EventCallback.

Definition at line 300 of file IPNDAgent.cpp.

References ibrcommon::LinkEvent::ACTION_ADDRESS_ADDED, ibrcommon::LinkEvent::ACTION_ADDRESS_REMOVED, ibrcommon::LinkEvent::ACTION_LINK_DOWN, ibrcommon::LinkEvent::getAction(), ibrcommon::LinkEvent::getAddress(), ibrcommon::LinkEvent::getInterface(), ibrcommon::JoinableThread::join(), and ibrcommon::vaddress::setService().

Here is the call graph for this function:

const std::string dtn::net::IPNDAgent::getName ( ) const
virtual
See Also
Component::getName()

Implements dtn::daemon::Component.

Definition at line 526 of file IPNDAgent.cpp.

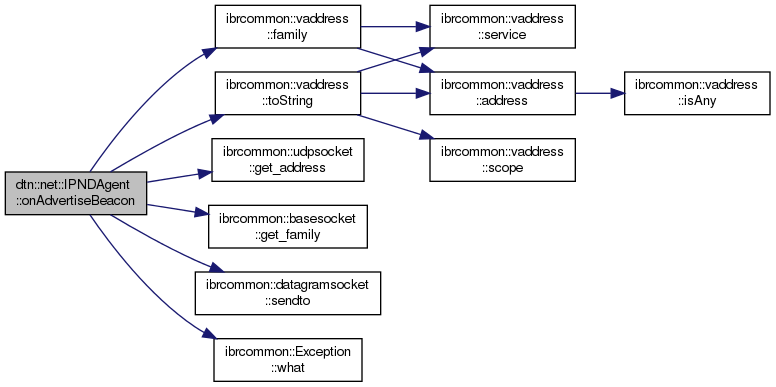

void dtn::net::IPNDAgent::onAdvertiseBeacon ( const ibrcommon::vinterface &  iface,
const DiscoveryBeacon &  beacon
)
throw (
)
virtual

This method is called by the DiscoveryAgent every time a beacon is ready for advertisement

Reimplemented from dtn::net::DiscoveryBeaconHandler.

Definition at line 202 of file IPNDAgent.cpp.

References ibrcommon::LogLevel::error, ibrcommon::vaddress::family(), ibrcommon::udpsocket::get_address(), ibrcommon::basesocket::get_family(), IBRCOMMON_LOGGER_DEBUG_TAG, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, ibrcommon::datagramsocket::sendto(), ibrcommon::vaddress::toString(), ibrcommon::LogLevel::warning, and ibrcommon::Exception::what().

Here is the call graph for this function:

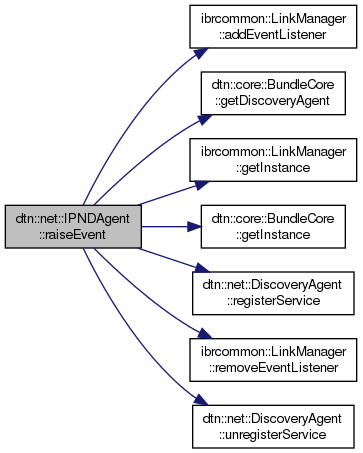

void dtn::net::IPNDAgent::raiseEvent ( const dtn::core::Event *  evt)
throw (
)
virtual
See Also
EventReceiver::raiseEvent()

Implements dtn::core::EventReceiver.

Definition at line 240 of file IPNDAgent.cpp.

References ibrcommon::LinkManager::addEventListener(), dtn::core::BundleCore::getDiscoveryAgent(), ibrcommon::LinkManager::getInstance(), dtn::core::BundleCore::getInstance(), dtn::net::P2PDialupEvent::iface, dtn::net::P2PDialupEvent::INTERFACE_DOWN, dtn::net::P2PDialupEvent::INTERFACE_UP, dtn::net::DiscoveryAgent::registerService(), ibrcommon::LinkManager::removeEventListener(), dtn::net::P2PDialupEvent::type, and dtn::net::DiscoveryAgent::unregisterService().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
