IBR-DTNSuite  0.12
Public Member Functions | Protected Member Functions | List of all members
dtn::daemon::IndependentComponent Class Referenceabstract

#include <Component.h>

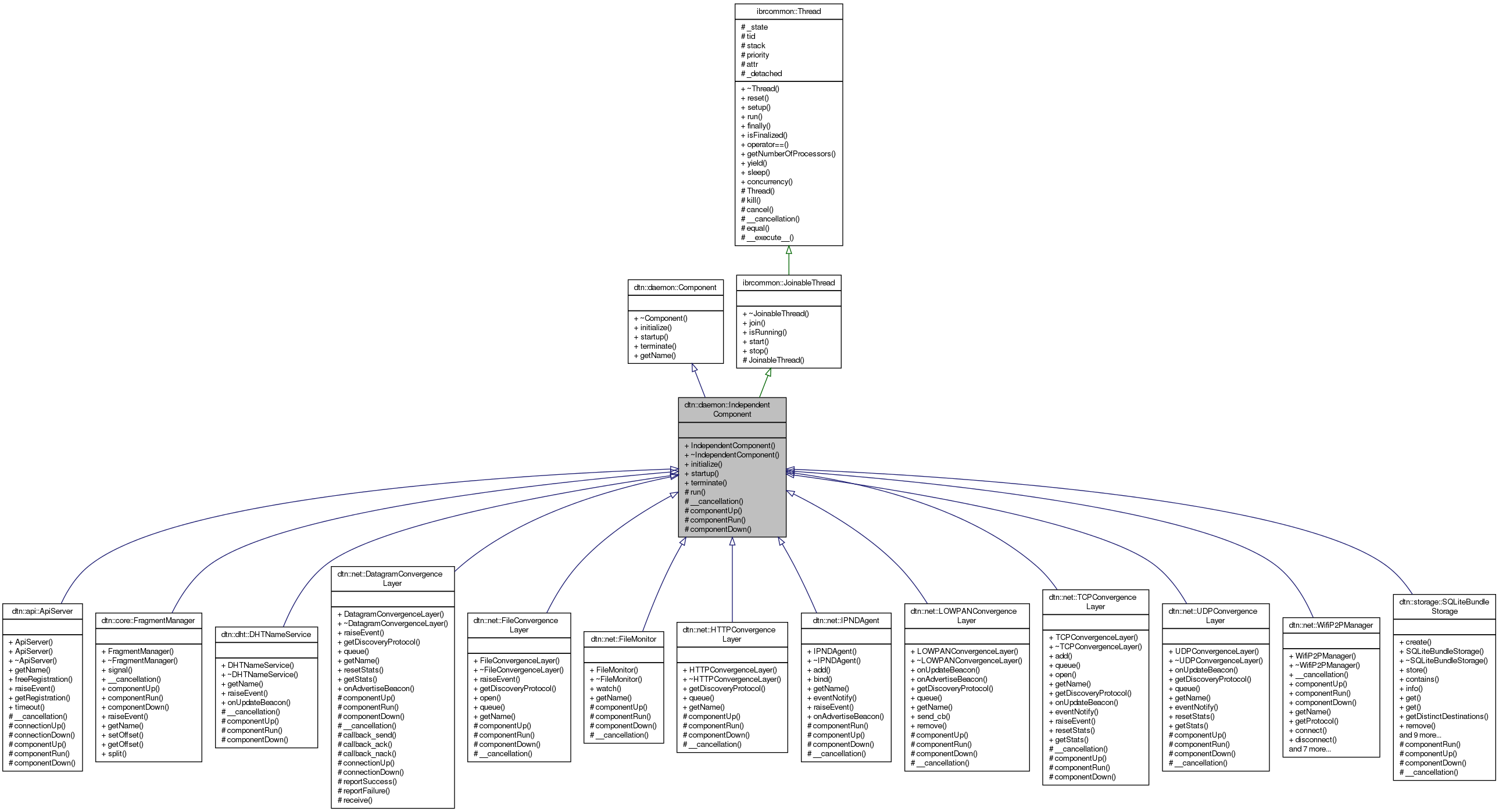

Inheritance diagram for dtn::daemon::IndependentComponent:
Inheritance graph

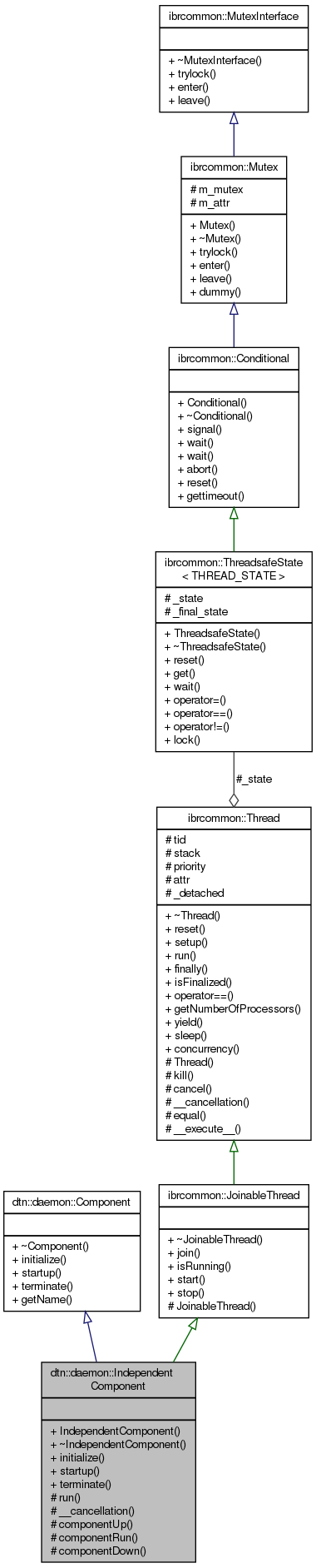

Collaboration diagram for dtn::daemon::IndependentComponent:
Collaboration graph

Public Member Functions

 IndependentComponent ()

virtual ~IndependentComponent ()

virtual void initialize () throw ()

virtual void startup () throw ()

virtual void terminate () throw ()

- Public Member Functions inherited from dtn::daemon::Component
virtual ~Component ()=0

virtual const std::string getName () const =0


Protected Member Functions

void run () throw ()

virtual void __cancellation ()=0 throw ()

virtual void componentUp ()=0 throw ()

virtual void componentRun ()=0 throw ()

virtual void componentDown ()=0 throw ()

- Protected Member Functions inherited from ibrcommon::JoinableThread
virtual ~JoinableThread ()=0

void join (void) throw (ThreadException)

bool isRunning (void)

void start (int priority=0) throw (ThreadException)

void stop () throw ()

 JoinableThread (size_t size=DEFAULT_STACKSIZE)


Additional Inherited Members

Detailed Description

Independent components are working in an own thread.

Definition at line 70 of file Component.h.

Constructor & Destructor Documentation

dtn::daemon::IndependentComponent::IndependentComponent ( )

Definition at line 34 of file Component.cpp.

dtn::daemon::IndependentComponent::~IndependentComponent ( )
virtual

Definition at line 38 of file Component.cpp.

References ibrcommon::JoinableThread::join().

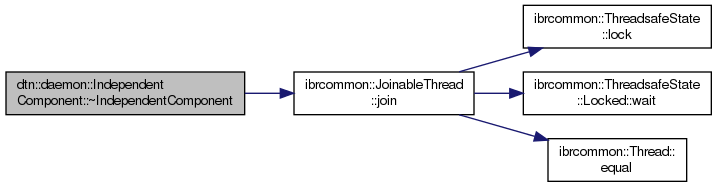

Here is the call graph for this function:

Member Function Documentation

virtual void dtn::daemon::IndependentComponent::__cancellation ( )
throw (
)
protectedpure virtual

This method is called after componentDown() and should should guarantee that blocking calls in componentRun() will unblock.

Implements ibrcommon::Thread.

Implemented in dtn::storage::SQLiteBundleStorage, dtn::dht::DHTNameService, dtn::net::TCPConvergenceLayer, dtn::net::DatagramConvergenceLayer, dtn::net::LOWPANConvergenceLayer, dtn::net::HTTPConvergenceLayer, dtn::net::UDPConvergenceLayer, dtn::api::ApiServer, dtn::net::IPNDAgent, dtn::core::FragmentManager, dtn::net::FileMonitor, dtn::net::FileConvergenceLayer, and dtn::net::WifiP2PManager.

virtual void dtn::daemon::IndependentComponent::componentDown ( )
throw (
)
protectedpure virtual

This method is called if the component should stop. Clean-up code should be inserted here.

Implemented in dtn::dht::DHTNameService, dtn::storage::SQLiteBundleStorage, dtn::net::TCPConvergenceLayer, dtn::net::DatagramConvergenceLayer, dtn::net::LOWPANConvergenceLayer, dtn::net::HTTPConvergenceLayer, dtn::api::ApiServer, dtn::net::UDPConvergenceLayer, dtn::core::FragmentManager, dtn::net::IPNDAgent, dtn::net::FileMonitor, dtn::net::WifiP2PManager, and dtn::net::FileConvergenceLayer.

Referenced by terminate().

virtual void dtn::daemon::IndependentComponent::componentRun ( )
throw (
)
protectedpure virtual

This is the run method. The component should loop in there until componentDown() or __cancellation() is called.

Implemented in dtn::dht::DHTNameService, dtn::storage::SQLiteBundleStorage, dtn::net::TCPConvergenceLayer, dtn::net::DatagramConvergenceLayer, dtn::net::LOWPANConvergenceLayer, dtn::net::HTTPConvergenceLayer, dtn::api::ApiServer, dtn::net::UDPConvergenceLayer, dtn::core::FragmentManager, dtn::net::IPNDAgent, dtn::net::FileMonitor, dtn::net::WifiP2PManager, and dtn::net::FileConvergenceLayer.

Referenced by run().

virtual void dtn::daemon::IndependentComponent::componentUp ( )
throw (
)
protectedpure virtual

Is called in preparation of the component. Before componentRun() is called.

Implemented in dtn::storage::SQLiteBundleStorage, dtn::dht::DHTNameService, dtn::net::TCPConvergenceLayer, dtn::net::DatagramConvergenceLayer, dtn::net::LOWPANConvergenceLayer, dtn::net::HTTPConvergenceLayer, dtn::api::ApiServer, dtn::net::UDPConvergenceLayer, dtn::core::FragmentManager, dtn::net::IPNDAgent, dtn::net::FileMonitor, dtn::net::WifiP2PManager, and dtn::net::FileConvergenceLayer.

Referenced by initialize().

void dtn::daemon::IndependentComponent::initialize ( )
throw (
)
virtual

Set up the component. At this stage no other components should be used.

Implements dtn::daemon::Component.

Definition at line 43 of file Component.cpp.

References componentUp().

Here is the call graph for this function:

void dtn::daemon::IndependentComponent::run ( )
throw (
)
protectedvirtual

Abstract interface for thread context run method.

Implements ibrcommon::Thread.

Definition at line 66 of file Component.cpp.

References componentRun().

Here is the call graph for this function:

void dtn::daemon::IndependentComponent::startup ( )
throw (
)
virtual

Start up the component. At this stage all other components are ready.

Implements dtn::daemon::Component.

Definition at line 51 of file Component.cpp.

References ibrcommon::LogLevel::error, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_TAG, and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::daemon::IndependentComponent::terminate ( )
throw (
)
virtual

Terminate the component and do some cleanup stuff. All other components still exists, but may not serve signals.

Implements dtn::daemon::Component.

Definition at line 60 of file Component.cpp.

References componentDown().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
