dtn::data::PrimaryBlock Class Reference

#include <PrimaryBlock.h>

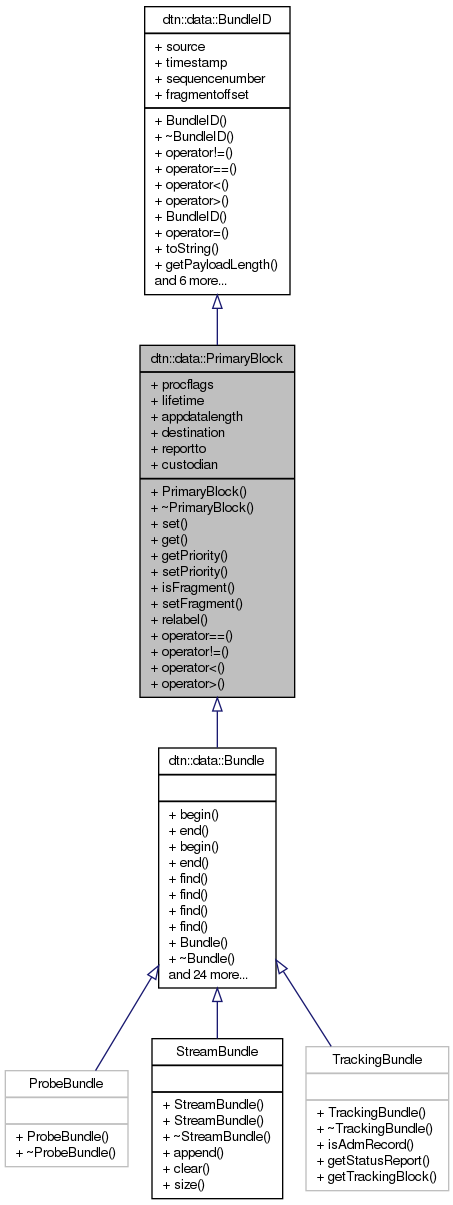

Inheritance diagram for dtn::data::PrimaryBlock:
Inheritance graph

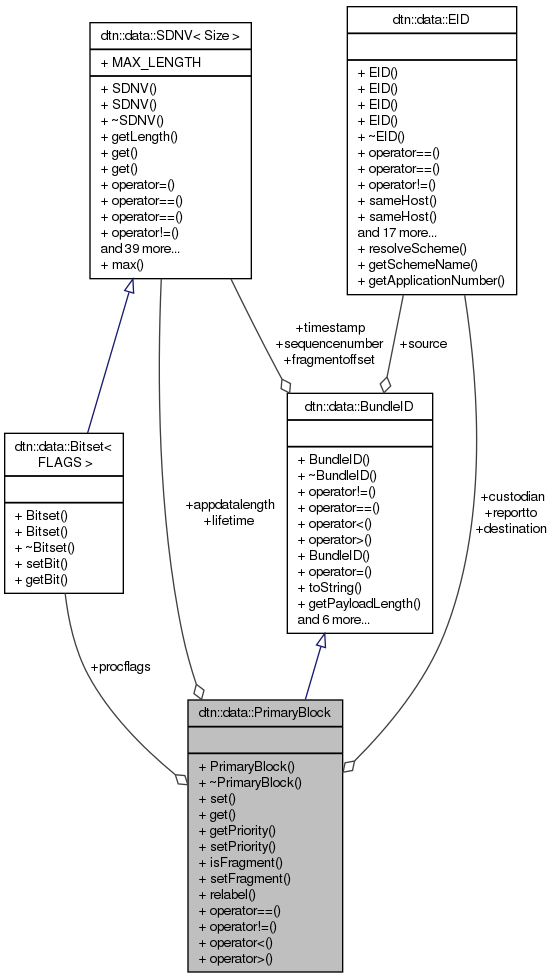

Collaboration diagram for dtn::data::PrimaryBlock:
Collaboration graph

Public Types

enum  PRIORITY { PRIO_LOW = 0, PRIO_MEDIUM = 1, PRIO_HIGH = 2 }

enum  FLAGS {
  FRAGMENT = 1 << 0x00, APPDATA_IS_ADMRECORD = 1 << 0x01, DONT_FRAGMENT = 1 << 0x02, CUSTODY_REQUESTED = 1 << 0x03,
  DESTINATION_IS_SINGLETON = 1 << 0x04, ACKOFAPP_REQUESTED = 1 << 0x05, RESERVED_6 = 1 << 0x06, PRIORITY_BIT1 = 1 << 0x07,
  PRIORITY_BIT2 = 1 << 0x08, CLASSOFSERVICE_9 = 1 << 0x09, CLASSOFSERVICE_10 = 1 << 0x0A, CLASSOFSERVICE_11 = 1 << 0x0B,
  CLASSOFSERVICE_12 = 1 << 0x0C, CLASSOFSERVICE_13 = 1 << 0x0D, REQUEST_REPORT_OF_BUNDLE_RECEPTION = 1 << 0x0E, REQUEST_REPORT_OF_CUSTODY_ACCEPTANCE = 1 << 0x0F,
  REQUEST_REPORT_OF_BUNDLE_FORWARDING = 1 << 0x10, REQUEST_REPORT_OF_BUNDLE_DELIVERY = 1 << 0x11, REQUEST_REPORT_OF_BUNDLE_DELETION = 1 << 0x12, STATUS_REPORT_REQUEST_19 = 1 << 0x13,
  STATUS_REPORT_REQUEST_20 = 1 << 0x14, DTNSEC_REQUEST_SIGN = 1 << 0x1A, DTNSEC_REQUEST_ENCRYPT = 1 << 0x1B, DTNSEC_STATUS_VERIFIED = 1 << 0x1C,
  DTNSEC_STATUS_CONFIDENTIAL = 1 << 0x1D, DTNSEC_STATUS_AUTHENTICATED = 1 << 0x1E, IBRDTN_REQUEST_COMPRESSION = 1 << 0x1F
}


Public Member Functions

 PrimaryBlock (bool zero_timestamp=false)

virtual ~PrimaryBlock ()

void set (FLAGS flag, bool value)

bool get (FLAGS flag) const

PRIORITY getPriority () const

void setPriority (PRIORITY p)

bool isFragment () const

void setFragment (bool val)

void relabel (bool zero_timestamp=false)

bool operator== (const PrimaryBlock &other) const

bool operator!= (const PrimaryBlock &other) const

bool operator< (const PrimaryBlock &other) const

bool operator> (const PrimaryBlock &other) const

- Public Member Functions inherited from dtn::data::BundleID
 BundleID ()

virtual ~BundleID ()

bool operator!= (const BundleID &other) const

bool operator== (const BundleID &other) const

bool operator< (const BundleID &other) const

bool operator> (const BundleID &other) const

 BundleID (const BundleID &id)

BundleID & operator= (const BundleID &id)

std::string toString () const

virtual dtn::data::Length getPayloadLength () const

virtual void setPayloadLength (const dtn::data::Length &value)

void addTo (ibrcommon::BloomFilter &bf) const

bool isIn (const ibrcommon::BloomFilter &bf) const

size_t raw (unsigned char *data, size_t len) const


Public Attributes

Bitset< FLAGS > procflags

Number lifetime

Number appdatalength

EID destination

EID reportto

EID custodian

- Public Attributes inherited from dtn::data::BundleID
dtn::data::EID source

dtn::data::Timestamp timestamp

dtn::data::Number sequencenumber

dtn::data::Number fragmentoffset


Detailed Description

Definition at line 47 of file PrimaryBlock.h.

Member Enumeration Documentation

enum dtn::data::PrimaryBlock::FLAGS
Enumerator
FRAGMENT
APPDATA_IS_ADMRECORD
DONT_FRAGMENT
CUSTODY_REQUESTED
DESTINATION_IS_SINGLETON
ACKOFAPP_REQUESTED
RESERVED_6
PRIORITY_BIT1
PRIORITY_BIT2
CLASSOFSERVICE_9
CLASSOFSERVICE_10
CLASSOFSERVICE_11
CLASSOFSERVICE_12
CLASSOFSERVICE_13
REQUEST_REPORT_OF_BUNDLE_RECEPTION
REQUEST_REPORT_OF_CUSTODY_ACCEPTANCE
REQUEST_REPORT_OF_BUNDLE_FORWARDING
REQUEST_REPORT_OF_BUNDLE_DELIVERY
REQUEST_REPORT_OF_BUNDLE_DELETION
STATUS_REPORT_REQUEST_19
STATUS_REPORT_REQUEST_20
DTNSEC_REQUEST_SIGN
DTNSEC_REQUEST_ENCRYPT
DTNSEC_STATUS_VERIFIED
DTNSEC_STATUS_CONFIDENTIAL
DTNSEC_STATUS_AUTHENTICATED
IBRDTN_REQUEST_COMPRESSION

Definition at line 63 of file PrimaryBlock.h.

enum dtn::data::PrimaryBlock::PRIORITY

Define the Bundle Priorities PRIO_LOW low priority for this bundle PRIO_MEDIUM medium priority for this bundle PRIO_HIGH high priority for this bundle

Enumerator
PRIO_LOW
PRIO_MEDIUM
PRIO_HIGH

Definition at line 56 of file PrimaryBlock.h.

Constructor & Destructor Documentation

dtn::data::PrimaryBlock::PrimaryBlock ( bool  zero_timestamp = false)

Definition at line 36 of file PrimaryBlock.cpp.

References DESTINATION_IS_SINGLETON, relabel(), and set().

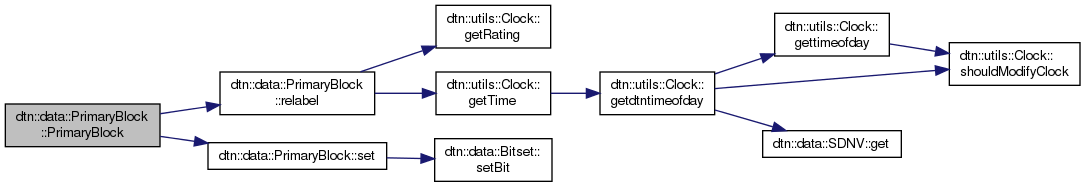

Here is the call graph for this function:

dtn::data::PrimaryBlock::~PrimaryBlock ( )
virtual

Definition at line 45 of file PrimaryBlock.cpp.

Member Function Documentation

bool dtn::data::PrimaryBlock::get ( FLAGS  flag) const

Definition at line 54 of file PrimaryBlock.cpp.

References dtn::data::Bitset< E >::getBit(), and procflags.

Referenced by dtn::core::FragmentManager::componentRun(), dtn::utils::Utils::encapsule(), dtn::security::PayloadConfidentialBlock::encrypt(), dtn::data::DefaultSerializer::getLength(), main(), dtn::data::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::DefaultDeserializer::operator>>(), dtn::api::Registration::processIncomingBundle(), dtn::net::UDPConvergenceLayer::queue(), dtn::api::EventConnection::raiseEvent(), dtn::core::BundleCore::raiseEvent(), BundleStream::received(), and dtn::security::PayloadIntegrityBlock::sign().

Here is the call graph for this function:

PrimaryBlock::PRIORITY dtn::data::PrimaryBlock::getPriority ( ) const

Definition at line 59 of file PrimaryBlock.cpp.

References PRIO_HIGH, PRIO_LOW, PRIO_MEDIUM, PRIORITY_BIT1, and PRIORITY_BIT2.

bool dtn::data::PrimaryBlock::isFragment ( ) const
virtual

Reimplemented from dtn::data::BundleID.

Definition at line 96 of file PrimaryBlock.cpp.

References FRAGMENT.

bool dtn::data::PrimaryBlock::operator!= ( const PrimaryBlock &  other) const

Definition at line 106 of file PrimaryBlock.cpp.

bool dtn::data::PrimaryBlock::operator< ( const PrimaryBlock &  other) const

Definition at line 116 of file PrimaryBlock.cpp.

bool dtn::data::PrimaryBlock::operator== ( const PrimaryBlock &  other) const

Definition at line 111 of file PrimaryBlock.cpp.

bool dtn::data::PrimaryBlock::operator> ( const PrimaryBlock &  other) const

Definition at line 121 of file PrimaryBlock.cpp.

void dtn::data::PrimaryBlock::relabel ( bool  zero_timestamp = false)

relabel the primary block with a new sequence number and a timestamp

Definition at line 126 of file PrimaryBlock.cpp.

References dtn::utils::Clock::getRating(), dtn::utils::Clock::getTime(), dtn::data::BundleID::sequencenumber, and dtn::data::BundleID::timestamp.

Referenced by dtn::daemon::DTNTPWorker::callbackBundleReceived(), PrimaryBlock(), and dtn::api::Registration::processIncomingBundle().

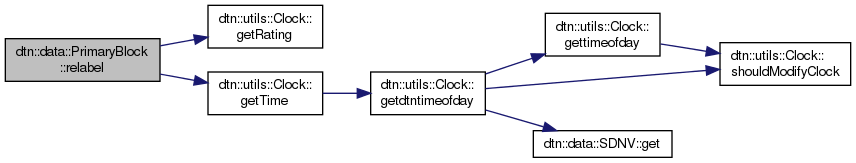

Here is the call graph for this function:

void dtn::data::PrimaryBlock::set ( FLAGS  flag,
bool  value
)

Definition at line 49 of file PrimaryBlock.cpp.

References procflags, and dtn::data::Bitset< E >::setBit().

Referenced by BundleStreamBuf::__flush(), dtn::storage::BundleStorage::acceptCustody(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::utils::Utils::encapsule(), main(), dtn::data::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::data::DefaultDeserializer::operator>>(), PrimaryBlock(), dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::api::Registration::processIncomingBundle(), dtn::api::OrderedStreamHandler::put(), dtn::storage::BundleStorage::rejectCustody(), setFragment(), setPriority(), and dtn::core::FragmentManager::split().

Here is the call graph for this function:

void dtn::data::PrimaryBlock::setFragment ( bool  val)
virtual

Reimplemented from dtn::data::BundleID.

Definition at line 101 of file PrimaryBlock.cpp.

References FRAGMENT, and set().

Here is the call graph for this function:

void dtn::data::PrimaryBlock::setPriority ( PrimaryBlock::PRIORITY  p)

Definition at line 74 of file PrimaryBlock.cpp.

References PRIO_HIGH, PRIO_LOW, PRIO_MEDIUM, PRIORITY_BIT1, PRIORITY_BIT2, and set().

Referenced by main().

Here is the call graph for this function:

Member Data Documentation

Number dtn::data::PrimaryBlock::appdatalength

Definition at line 120 of file PrimaryBlock.h.

Referenced by dtn::daemon::Debugger::callbackBundleReceived(), dtn::data::DefaultSerializer::getLength(), dtn::api::PlainSerializer::operator<<(), dtn::data::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::api::EventConnection::raiseEvent(), and dtn::core::FragmentManager::split().

EID dtn::data::PrimaryBlock::custodian

Definition at line 124 of file PrimaryBlock.h.

Referenced by dtn::data::Dictionary::add(), dtn::data::Bundle::allEIDsInCBHE(), dtn::daemon::Debugger::callbackBundleReceived(), dtn::data::DefaultSerializer::getLength(), dtn::data::DefaultSerializer::isCompressable(), main(), dtn::api::PlainSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::api::Registration::processIncomingBundle(), and dtn::storage::SimpleBundleStorage::store().

EID dtn::data::PrimaryBlock::destination

Definition at line 122 of file PrimaryBlock.h.

Referenced by dtn::storage::BundleStorage::acceptCustody(), dtn::data::Dictionary::add(), dtn::data::Bundle::allEIDsInCBHE(), dtn::daemon::Debugger::callbackBundleReceived(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::net::FileConvergenceLayer::componentRun(), dtn::security::PayloadConfidentialBlock::encrypt(), dtn::storage::MemoryBundleStorage::getDistinctDestinations(), dtn::security::MutableSerializer::getLength(), dtn::data::DefaultSerializer::getLength(), dtn::security::SecurityBlock::getSecurityDestination(), dtn::data::DefaultSerializer::isCompressable(), main(), dtn::api::PlainSerializer::operator<<(), dtn::security::MutableSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::api::Registration::processIncomingBundle(), dtn::api::OrderedStreamHandler::put(), dtn::api::EventConnection::raiseEvent(), dtn::storage::BundleStorage::rejectCustody(), and dtn::security::PayloadIntegrityBlock::sign().

Number dtn::data::PrimaryBlock::lifetime

Definition at line 119 of file PrimaryBlock.h.

Referenced by dtn::daemon::EchoWorker::callbackBundleReceived(), dtn::daemon::Debugger::callbackBundleReceived(), dtn::daemon::DTNTPWorker::callbackBundleReceived(), dtn::utils::Utils::encapsule(), dtn::utils::Clock::getExpireTime(), dtn::data::DefaultSerializer::getLength(), dtn::utils::Clock::isExpired(), main(), dtn::api::PlainSerializer::operator<<(), dtn::security::MutableSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::routing::NodeHandshakeExtension::processHandshake(), dtn::api::OrderedStreamHandler::put(), and dtn::api::EventConnection::raiseEvent().

Bitset<FLAGS> dtn::data::PrimaryBlock::procflags

Definition at line 118 of file PrimaryBlock.h.

Referenced by dtn::daemon::Debugger::callbackBundleReceived(), get(), dtn::data::DefaultSerializer::getLength(), main(), dtn::api::PlainSerializer::operator<<(), dtn::security::MutableSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), dtn::api::EventConnection::raiseEvent(), and set().

EID dtn::data::PrimaryBlock::reportto

Definition at line 123 of file PrimaryBlock.h.

Referenced by BundleStreamBuf::__flush(), dtn::data::Dictionary::add(), dtn::data::Bundle::allEIDsInCBHE(), dtn::daemon::Debugger::callbackBundleReceived(), dtn::security::MutableSerializer::getLength(), dtn::data::DefaultSerializer::getLength(), dtn::data::DefaultSerializer::isCompressable(), dtn::api::PlainSerializer::operator<<(), dtn::security::MutableSerializer::operator<<(), dtn::data::DefaultSerializer::operator<<(), dtn::api::PlainDeserializer::operator>>(), dtn::data::DefaultDeserializer::operator>>(), and dtn::api::Registration::processIncomingBundle().

The documentation for this class was generated from the following files:
