dtn::core::Node::URI Class Reference

#include <Node.h>

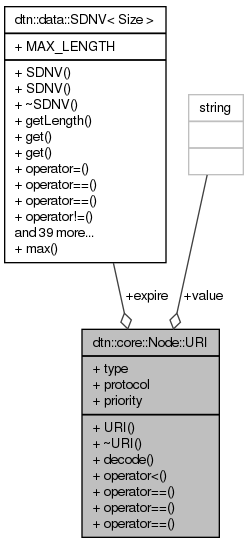

Collaboration diagram for dtn::core::Node::URI:

Public Member Functions
	URI (const Type t, const Protocol proto, const std::string &uri, const dtn::data::Number &timeout=0, const int priority=0)
	~URI ()
void	decode (std::string &address, unsigned int &port) const
bool	operator< (const URI &other) const
bool	operator== (const URI &other) const
bool	operator== (const Node::Protocol &p) const
bool	operator== (const Node::Type &t) const

Public Attributes
Type	type
Protocol	protocol
std::string	value
dtn::data::Timestamp	expire
int	priority

Friends
std::ostream &	operator<< (std::ostream &, const Node::URI &)

Detailed Description

Definition at line 81 of file Node.h.

Constructor & Destructor Documentation

dtn::core::Node::URI::URI	(	const Type	t,
		const Protocol	proto,
		const std::string &	uri,
		const dtn::data::Number &	timeout = 0,
		const int	priority = 0
	)

Definition at line 38 of file Node.cpp.

dtn::core::Node::URI::~URI

(

)

Definition at line 43 of file Node.cpp.

Member Function Documentation

void dtn::core::Node::URI::decode	(	std::string &	address,
		unsigned int &	port
	)		const

Definition at line 47 of file Node.cpp.

References dtn::utils::Utils::tokenize().

Referenced by dtn::net::TCPConnection::connect(), dtn::net::UDPConvergenceLayer::queue(), and dtn::net::LOWPANConvergenceLayer::queue().

Here is the call graph for this function:

bool dtn::core::Node::URI::operator<

(

const URI &

other)

const

Definition at line 73 of file Node.cpp.

References protocol, type, and value.

bool dtn::core::Node::URI::operator==

(

const URI &

other)

const

Definition at line 84 of file Node.cpp.

References protocol, type, and value.

bool dtn::core::Node::URI::operator==

(

const Node::Protocol &

p)

const

Definition at line 89 of file Node.cpp.

bool dtn::core::Node::URI::operator==

(

const Node::Type &

t)

const

Definition at line 94 of file Node.cpp.

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  stream, const Node::URI &  u  )

friend

Definition at line 99 of file Node.cpp.

Member Data Documentation

dtn::data::Timestamp dtn::core::Node::URI::expire

Definition at line 90 of file Node.h.

Referenced by dtn::core::Node::expire(), and dtn::core::operator<<().

int dtn::core::Node::URI::priority

Definition at line 91 of file Node.h.

Referenced by dtn::core::compare_uri_priority(), and dtn::core::operator<<().

Protocol dtn::core::Node::URI::protocol

Definition at line 88 of file Node.h.

Referenced by operator<(), dtn::core::operator<<(), and operator==().

Type dtn::core::Node::URI::type

Definition at line 87 of file Node.h.

Referenced by dtn::daemon::NativeDaemon::getInfo(), dtn::core::Node::hasDialup(), dtn::core::Node::isAvailable(), operator<(), dtn::core::operator<<(), and operator==().

std::string dtn::core::Node::URI::value

Definition at line 89 of file Node.h.

Referenced by dtn::api::ApiP2PExtensionHandler::connect(), dtn::net::NativeP2pManager::connect(), dtn::net::WifiP2PManager::connect(), dtn::net::TCPConnection::connect(), dtn::api::ApiP2PExtensionHandler::disconnect(), dtn::net::NativeP2pManager::disconnect(), dtn::net::WifiP2PManager::disconnect(), operator<(), dtn::core::operator<<(), operator==(), and dtn::net::DatagramConvergenceLayer::queue().

---

The documentation for this class was generated from the following files:

• daemon/src/core/Node.h
• daemon/src/core/Node.cpp
