RTCPPacket Class Reference

#include <RTCPPacket.h>

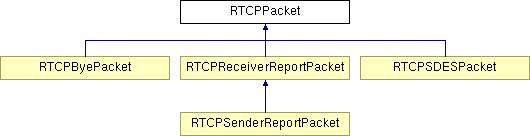

Inheritance diagram for RTCPPacket:

List of all members.

Public Types
enum	RTCP_PACKET_TYPE {   RTCP_PT_UNDEF = 0, RTCP_PT_SR = 200, RTCP_PT_RR = 201, RTCP_PT_SDES = 202,   RTCP_PT_BYE = 203 }
Public Member Functions
	RTCPPacket (const char *name=NULL)
	RTCPPacket (const RTCPPacket &rtcpPacket)
virtual	~RTCPPacket ()
RTCPPacket &	operator= (const RTCPPacket &rtcpPacket)
virtual const char *	className () const
virtual cObject *	dup () const
virtual void	info (char *buf) const
virtual void	writeContents (ostream &os) const
virtual int	version ()
virtual int	padding ()
virtual int	count ()
virtual RTCP_PACKET_TYPE	packetType ()
virtual int	rtcpLength () const
Protected Attributes
int	_version
int	_padding
int	_count
RTCP_PACKET_TYPE	_packetType

---

Detailed Description

This is a base class for all types (except RTCPCompoundPacket) of rtcp packets. It isn't intended to be used directly.

---

Member Enumeration Documentation

enum RTCPPacket::RTCP_PACKET_TYPE

The values for the packet type field in the rtcp header as defined in the rfc. Enumeration values: RTCP_PT_UNDEF  default value undefined RTCP_PT_SR  sender report RTCP_PT_RR  receiver report RTCP_PT_SDES  source description RTCP_PT_BYE  bye

---

Constructor & Destructor Documentation

RTCPPacket::RTCPPacket (  const char *  name = NULL  )

Default constructor.

RTCPPacket::RTCPPacket (  const RTCPPacket &  rtcpPacket  )

Copy constructor.

RTCPPacket::~RTCPPacket (   )  [virtual]

Destructor.

---

Member Function Documentation

const char * RTCPPacket::className (   )  const [virtual]

Return the class name "RTCPPacket". Reimplemented in RTCPReceiverReportPacket, RTCPSenderReportPacket, RTCPSDESPacket, and RTCPByePacket.

int RTCPPacket::count (   )  [virtual]

Returns the value of the count field in the rtcp header. Depending on the type of rtcp packet it stands for number of receiver reports or number of sdes chunks contained in this packet.

cObject * RTCPPacket::dup (   )  const [virtual]

Duplicates the RTCPPacket by calling the copy constructor. Reimplemented in RTCPReceiverReportPacket, RTCPSenderReportPacket, RTCPSDESPacket, and RTCPByePacket.

void RTCPPacket::info (  char *  buf  )  const [virtual]

Writes a short info about this RTCPPacket into the given buffer. Reimplemented in RTCPReceiverReportPacket, RTCPSenderReportPacket, and RTCPSDESPacket.

RTCPPacket & RTCPPacket::operator= (  const RTCPPacket &  rtcpPacket  )

Assignment operator.

RTCPPacket::RTCP_PACKET_TYPE RTCPPacket::packetType (   )  [virtual]

Returns the packet type of this rtcp packet.

int RTCPPacket::padding (   )  [virtual]

1 if padding exists, 0 otherwise. In this implementation only 0 is used.

int RTCPPacket::rtcpLength (   )  const [virtual]

Returns the value of the field length in the rtcp header. The value isn't stored because it can be calculated with the length() method inherited from cPacket.

int RTCPPacket::version (   )  [virtual]

Returns the rtp version of the rtcp packet. It's always 2.

void RTCPPacket::writeContents (  ostream &  os  )  const [virtual]

Writes a detailed report about this RTCPPacket into the given stream. Reimplemented in RTCPReceiverReportPacket, RTCPSenderReportPacket, and RTCPSDESPacket.

---

Member Data Documentation

int RTCPPacket::_count [protected]

Depending on the packet type, here is stored how many receiver reports or sdes chunks are contained in the packet. Values from 0 to 31 are allowed.

RTCP_PACKET_TYPE RTCPPacket::_packetType [protected]

The packet type of the rtcp packet.

int RTCPPacket::_padding [protected]

Set to 1 if padding (bytes at the end of the packet to assure that the packet length in bytes is a multiple of a certain number; possibly needed for encryption) is used. In the simulation padding isn't needed, so it is always 0.

int RTCPPacket::_version [protected]

The rtp version used. Always 2.

---

The documentation for this class was generated from the following files:

• RTCPPacket.h
• RTCPPacket.cc

---
