ibrcommon::lowpansocket Class Reference

#include <lowpansocket.h>

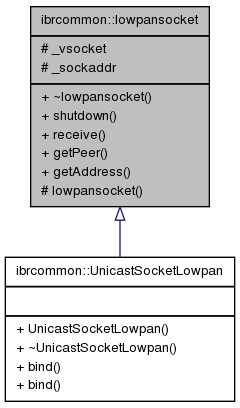

Inheritance diagram for ibrcommon::lowpansocket:

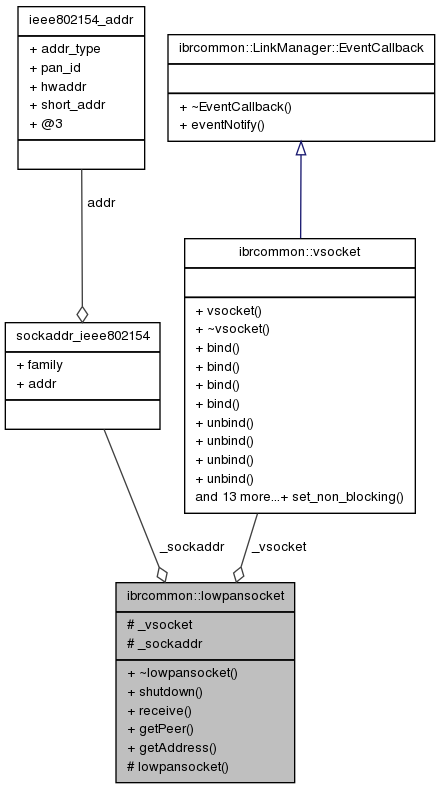

Collaboration diagram for ibrcommon::lowpansocket:

List of all members.

Classes
class	peer
class	SocketException
Public Member Functions
virtual	~lowpansocket ()
virtual void	shutdown ()
int	receive (char *data, size_t maxbuffer)
lowpansocket::peer	getPeer (unsigned int address, const unsigned int panid)
Static Public Member Functions
static void	getAddress (struct ieee802154_addr *ret, const vinterface &iface)
Protected Member Functions
	lowpansocket (u_char proto=0) throw (SocketException)
Protected Attributes
ibrcommon::vsocket	_vsocket
struct sockaddr_ieee802154	_sockaddr

---

Detailed Description

Definition at line 20 of file lowpansocket.h.

---

Constructor & Destructor Documentation

ibrcommon::lowpansocket::~lowpansocket

(

)

[virtual]

Definition at line 51 of file lowpansocket.cpp.

References shutdown().

Here is the call graph for this function:

ibrcommon::lowpansocket::lowpansocket

(

u_char

proto = 0

)

throw (SocketException) [protected]

Definition at line 33 of file lowpansocket.cpp.

References AF_IEEE802154, bzero, IEEE802154_ADDR_SHORT, and PF_IEEE802154.

---

Member Function Documentation

void ibrcommon::lowpansocket::getAddress	(	struct ieee802154_addr *	ret,
		const vinterface &	iface
	)		[static]

Definition at line 116 of file lowpansocket.cpp.

References ieee802154_addr::addr_type, IEEE802154_ADDR_SHORT, IEEE802154_ATTR_DEV_NAME, IEEE802154_ATTR_MAX, IEEE802154_ATTR_PAN_ID, IEEE802154_ATTR_SHORT_ADDR, IEEE802154_LIST_IFACE, ieee802154_policy, ieee802154_addr::pan_id, ieee802154_addr::short_addr, and ibrcommon::vinterface::toString().

Referenced by ibrcommon::UnicastSocketLowpan::bind(), dtn::net::LOWPANDatagramService::getServiceDescription(), dtn::net::LOWPANConvergenceLayer::send_cb(), and dtn::net::LOWPANConvergenceLayer::update().

Here is the call graph for this function:

lowpansocket::peer ibrcommon::lowpansocket::getPeer	(	unsigned int	address,
		const unsigned int	panid
	)

Definition at line 108 of file lowpansocket.cpp.

References sockaddr_ieee802154::addr, and ieee802154_addr::short_addr.

Referenced by dtn::net::LOWPANConvergenceLayer::send_cb().

int ibrcommon::lowpansocket::receive	(	char *	data,
		size_t	maxbuffer
	)

Definition at line 61 of file lowpansocket.cpp.

References _vsocket, ibrcommon::recvfrom(), and ibrcommon::vsocket::select().

Referenced by dtn::net::LOWPANConvergenceLayer::componentRun().

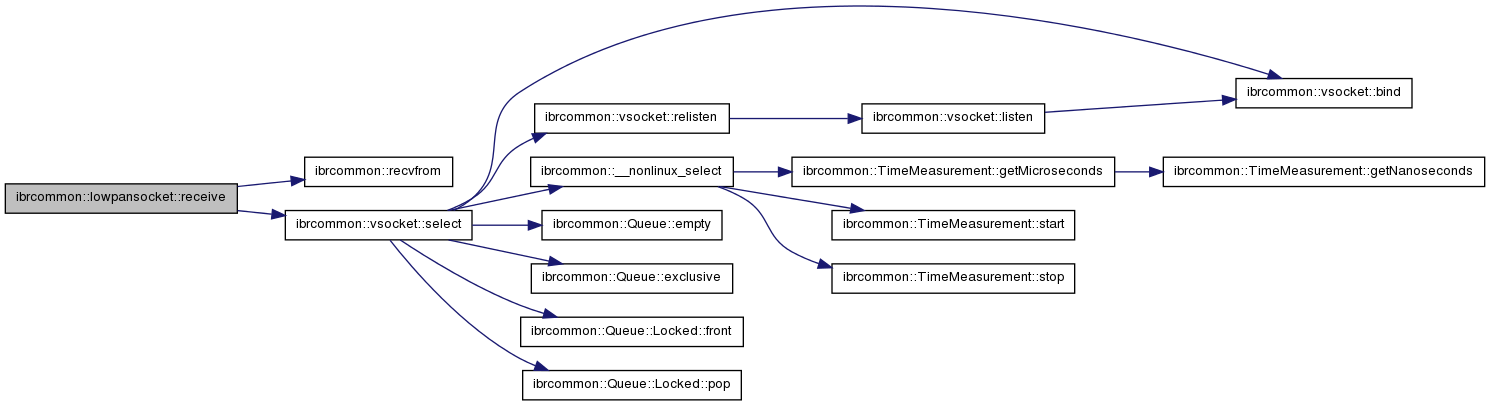

Here is the call graph for this function:

void ibrcommon::lowpansocket::shutdown

(

)

[virtual]

Definition at line 56 of file lowpansocket.cpp.

References _vsocket, and ibrcommon::vsocket::close().

Referenced by dtn::net::LOWPANConvergenceLayer::__cancellation(), dtn::net::LOWPANDatagramService::shutdown(), and ~lowpansocket().

Here is the call graph for this function:

---

Member Data Documentation

struct sockaddr_ieee802154 ibrcommon::lowpansocket::_sockaddr [protected]

Definition at line 56 of file lowpansocket.h.

Referenced by ibrcommon::UnicastSocketLowpan::bind().

ibrcommon::vsocket ibrcommon::lowpansocket::_vsocket [protected]

Definition at line 55 of file lowpansocket.h.

Referenced by ibrcommon::UnicastSocketLowpan::bind(), receive(), and shutdown().

---

The documentation for this class was generated from the following files:

• ibrcommon/ibrcommon/net/lowpansocket.h
• ibrcommon/ibrcommon/net/lowpansocket.cpp
