#include <ConnectionManager.h>

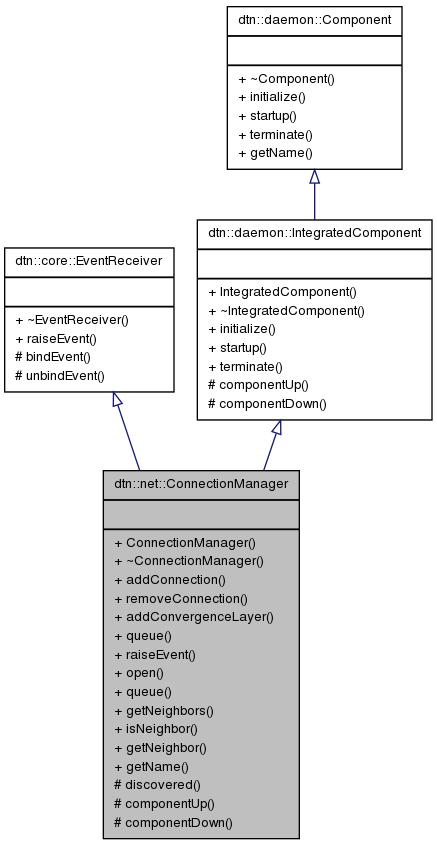

Inheritance diagram for dtn::net::ConnectionManager:

Collaboration diagram for dtn::net::ConnectionManager:

Classes
class	ShutdownException
Public Member Functions
	ConnectionManager ()
virtual	~ConnectionManager ()
void	addConnection (const dtn::core::Node &n)
void	removeConnection (const dtn::core::Node &n)
void	addConvergenceLayer (ConvergenceLayer *cl)
void	queue (const dtn::data::EID &eid, const dtn::data::BundleID &b)
void	raiseEvent (const dtn::core::Event *evt)
void	open (const dtn::core::Node &node)
void	queue (const ConvergenceLayer::Job &job)
const std::set< dtn::core::Node >	getNeighbors ()
bool	isNeighbor (const dtn::core::Node &)
const dtn::core::Node	getNeighbor (const dtn::data::EID &eid)
virtual const std::string	getName () const
Protected Member Functions
void	discovered (const dtn::core::Node &node)
virtual void	componentUp ()
virtual void	componentDown ()

Detailed Description

Definition at line 41 of file ConnectionManager.h.

Constructor & Destructor Documentation

dtn::net::ConnectionManager::ConnectionManager ( )

Definition at line 44 of file ConnectionManager.cpp.

dtn::net::ConnectionManager::~ConnectionManager ( ) [virtual]

Definition at line 49 of file ConnectionManager.cpp.

Member Function Documentation

void dtn::net::ConnectionManager::addConnection ( const dtn::core::Node & n )

Definition at line 165 of file ConnectionManager.cpp.

References dtn::core::Node::getEID(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::core::NODE_AVAILABLE, and dtn::core::NodeEvent::raise().

Referenced by dtn::core::BundleCore::addConnection().

Here is the call graph for this function:

void dtn::net::ConnectionManager::addConvergenceLayer ( ConvergenceLayer * cl )

Definition at line 198 of file ConnectionManager.cpp.

Referenced by dtn::core::BundleCore::addConvergenceLayer().

void dtn::net::ConnectionManager::componentDown ( ) [protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 67 of file ConnectionManager.cpp.

References dtn::net::ConnectionEvent::className, and dtn::core::EventReceiver::unbindEvent().

Here is the call graph for this function:

void dtn::net::ConnectionManager::componentUp ( ) [protected, virtual]

Implements dtn::daemon::IntegratedComponent.

Definition at line 53 of file ConnectionManager.cpp.

References dtn::core::EventReceiver::bindEvent(), dtn::net::ConnectionEvent::className, dtn::daemon::Configuration::Network::getAutoConnect(), dtn::daemon::Configuration::getInstance(), dtn::daemon::Configuration::getNetwork(), and dtn::utils::Clock::getTime().

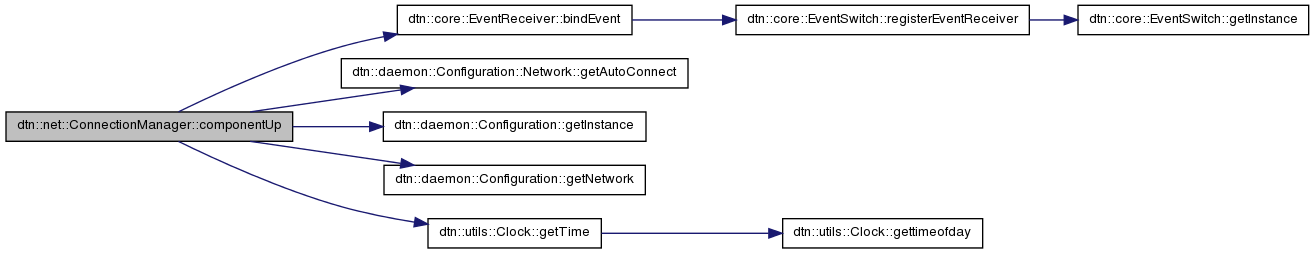

Here is the call graph for this function:

void dtn::net::ConnectionManager::discovered ( const dtn::core::Node & node ) [protected]

trigger for periodical discovery of nodes

Parameters:

node

Definition at line 204 of file ConnectionManager.cpp.

References dtn::core::Node::getEID(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleCore::local, dtn::core::NODE_AVAILABLE, and dtn::core::NodeEvent::raise().

Referenced by raiseEvent().

Here is the call graph for this function:

const std::string dtn::net::ConnectionManager::getName ( ) const [virtual]

See also:: Component::getName()

Implements dtn::daemon::Component.

Definition at line 404 of file ConnectionManager.cpp.

const dtn::core::Node dtn::net::ConnectionManager::getNeighbor ( const dtn::data::EID & eid )

Get the neighbor with the given EID.

Exceptions:

dtn::net::NeighborNotAvailableException if the neighbor is not available.

Parameters:

eid	The EID of the neighbor.

Returns:: A node object with all neighbor data.

Definition at line 376 of file ConnectionManager.cpp.

References dtn::core::Node::getEID(), and dtn::core::Node::isAvailable().

Referenced by dtn::core::BundleCore::getNeighbor().

Here is the call graph for this function:

const std::set< dtn::core::Node > dtn::net::ConnectionManager::getNeighbors ( )

get a set with all neighbors

Returns:

Definition at line 361 of file ConnectionManager.cpp.

References dtn::core::Node::isAvailable().

Referenced by dtn::core::BundleCore::getNeighbors().

Here is the call graph for this function:

bool dtn::net::ConnectionManager::isNeighbor ( const dtn::core::Node & node )

Checks if a node is already known as neighbor.

Parameters:

@return

Definition at line 390 of file ConnectionManager.cpp.

References dtn::core::Node::isAvailable().

Referenced by dtn::core::BundleCore::isNeighbor().

Here is the call graph for this function:

void dtn::net::ConnectionManager::open ( const dtn::core::Node & node )

Definition at line 285 of file ConnectionManager.cpp.

References dtn::net::ConvergenceLayer::getDiscoveryProtocol(), dtn::core::Node::has(), and dtn::net::ConvergenceLayer::open().

Referenced by raiseEvent().

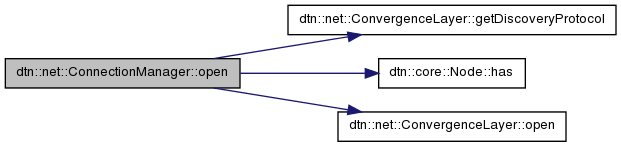

Here is the call graph for this function:

void dtn::net::ConnectionManager::queue	(	const dtn::data::EID &	eid,
		const dtn::data::BundleID &	b
	)

Definition at line 356 of file ConnectionManager.cpp.

Referenced by queue(), and dtn::core::BundleCore::transferTo().

void dtn::net::ConnectionManager::queue ( const ConvergenceLayer::Job & job )

Definition at line 325 of file ConnectionManager.cpp.

References dtn::net::ConvergenceLayer::Job::_destination, dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, IBRCOMMON_LOGGER_LEVEL, and queue().

Here is the call graph for this function:

void dtn::net::ConnectionManager::raiseEvent ( const dtn::core::Event * evt ) [virtual]

method to receive new events from the EventSwitch

Implements dtn::core::EventReceiver.

Definition at line 80 of file ConnectionManager.cpp.

References dtn::net::ConnectionEvent::CONNECTION_DOWN, dtn::net::ConnectionEvent::CONNECTION_UP, discovered(), dtn::core::Node::doConnectImmediately(), dtn::core::TimeEvent::getAction(), dtn::core::NodeEvent::getAction(), dtn::core::NodeEvent::getNode(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::net::ConnectionEvent::node, dtn::core::NODE_AVAILABLE, dtn::core::NODE_INFO_UPDATED, open(), dtn::net::ConnectionEvent::peer, dtn::core::NodeEvent::raise(), dtn::net::ConnectionEvent::state, and dtn::core::TIME_SECOND_TICK.

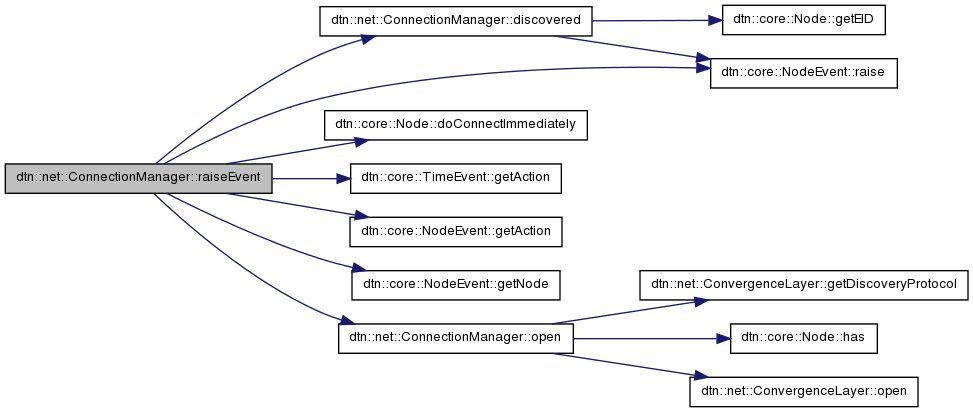

Here is the call graph for this function:

void dtn::net::ConnectionManager::removeConnection ( const dtn::core::Node & n )

Definition at line 185 of file ConnectionManager.cpp.

References dtn::core::Node::getEID(), IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

Referenced by dtn::core::BundleCore::removeConnection().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

daemon/src/net/ConnectionManager.h
daemon/src/net/ConnectionManager.cpp
