dtn::api::ApiServer Class Reference

#include <ApiServer.h>

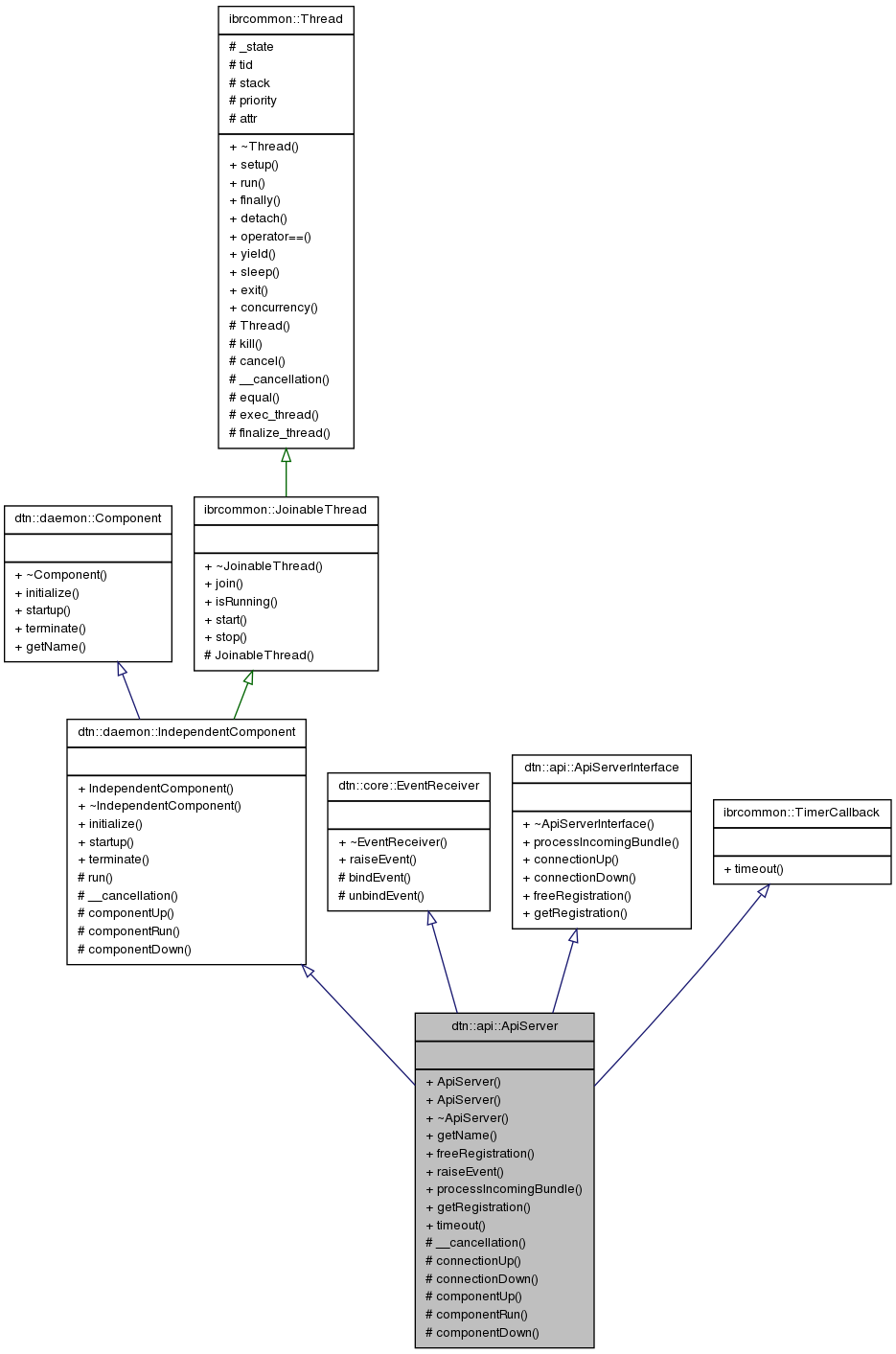

Inheritance diagram for dtn::api::ApiServer:

Collaboration diagram for dtn::api::ApiServer:

List of all members.

Public Member Functions
	ApiServer (const ibrcommon::File &socket)
	ApiServer (const ibrcommon::vinterface &net, int port=4550)
virtual	~ApiServer ()
virtual const std::string	getName () const
void	freeRegistration (Registration &reg)
void	raiseEvent (const dtn::core::Event *evt)
void	processIncomingBundle (const dtn::data::EID &source, dtn::data::Bundle &bundle)
Registration &	getRegistration (const std::string &handle)
virtual size_t	timeout (ibrcommon::Timer *)
Protected Member Functions
void	__cancellation ()
virtual void	connectionUp (ClientHandler *conn)
virtual void	connectionDown (ClientHandler *conn)
void	componentUp ()
void	componentRun ()
void	componentDown ()

---

Detailed Description

Definition at line 27 of file ApiServer.h.

---

Constructor & Destructor Documentation

dtn::api::ApiServer::ApiServer

(

const ibrcommon::File &

socket

)

Definition at line 33 of file ApiServer.cpp.

dtn::api::ApiServer::ApiServer	(	const ibrcommon::vinterface &	net,
		int	port = 4550
	)

Definition at line 38 of file ApiServer.cpp.

References ibrcommon::tcpserver::bind().

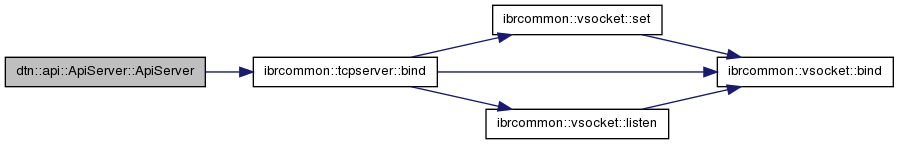

Here is the call graph for this function:

dtn::api::ApiServer::~ApiServer

(

)

[virtual]

Definition at line 44 of file ApiServer.cpp.

References ibrcommon::JoinableThread::join(), and ibrcommon::JoinableThread::stop().

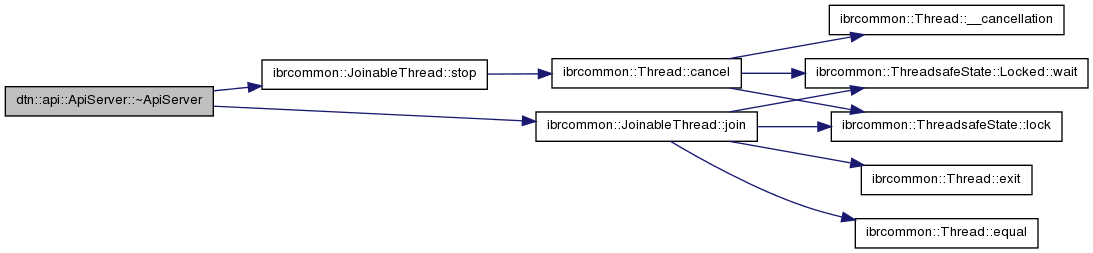

Here is the call graph for this function:

---

Member Function Documentation

void dtn::api::ApiServer::__cancellation

(

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 51 of file ApiServer.cpp.

References ibrcommon::tcpserver::shutdown().

Here is the call graph for this function:

void dtn::api::ApiServer::componentDown

(

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 111 of file ApiServer.cpp.

References dtn::routing::QueueBundleEvent::className, dtn::core::NodeEvent::className, ibrcommon::tcpserver::close(), ibrcommon::Timer::pause(), ibrcommon::Thread::sleep(), and dtn::core::EventReceiver::unbindEvent().

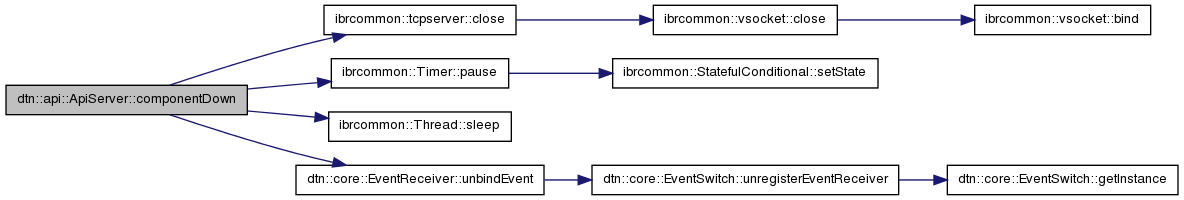

Here is the call graph for this function:

void dtn::api::ApiServer::componentRun

(

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 64 of file ApiServer.cpp.

References ibrcommon::tcpserver::accept(), ibrcommon::tcpstream::close(), dtn::api::Registration::getHandle(), dtn::daemon::Configuration::getInstance(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, ibrcommon::DetachedThread::start(), dtn::daemon::Configuration::version(), and ibrcommon::Thread::yield().

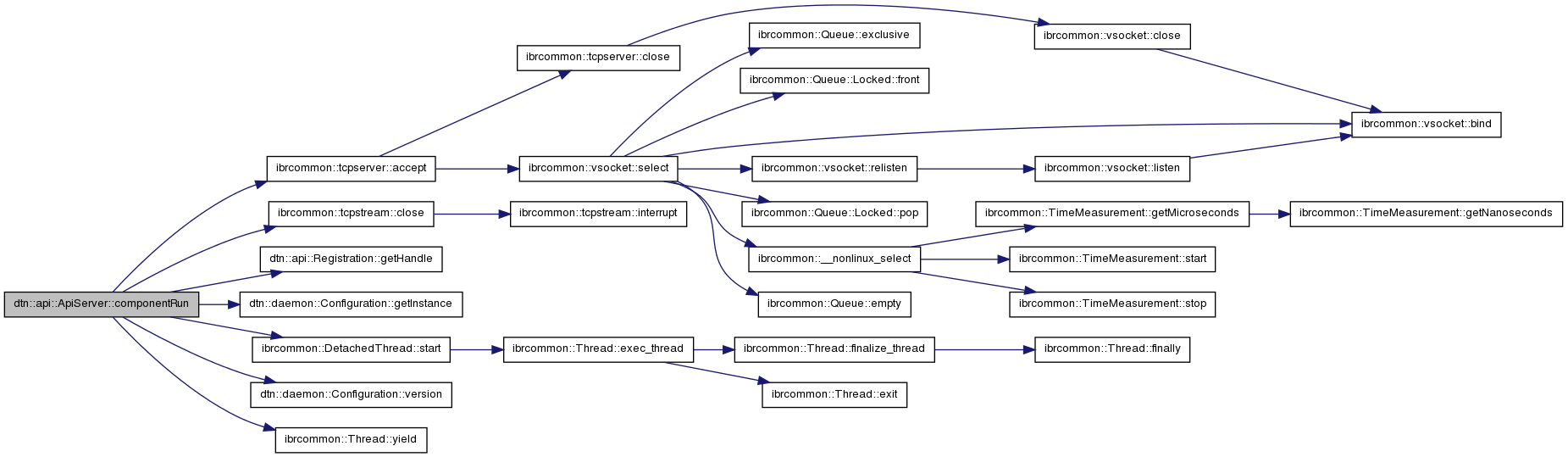

Here is the call graph for this function:

void dtn::api::ApiServer::componentUp

(

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 56 of file ApiServer.cpp.

References dtn::core::EventReceiver::bindEvent(), dtn::routing::QueueBundleEvent::className, dtn::core::NodeEvent::className, and ibrcommon::tcpserver::listen().

Here is the call graph for this function:

void dtn::api::ApiServer::connectionDown

(

ClientHandler *

conn

)

[protected, virtual]

Implements dtn::api::ApiServerInterface.

Definition at line 266 of file ApiServer.cpp.

References IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

void dtn::api::ApiServer::connectionUp

(

ClientHandler *

conn

)

[protected, virtual]

Implements dtn::api::ApiServerInterface.

Definition at line 260 of file ApiServer.cpp.

References IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

void dtn::api::ApiServer::freeRegistration

(

Registration &

reg

)

[virtual]

Implements dtn::api::ApiServerInterface.

Definition at line 284 of file ApiServer.cpp.

References dtn::api::Registration::detach(), dtn::api::Registration::getHandle(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, and dtn::api::Registration::isPersistent().

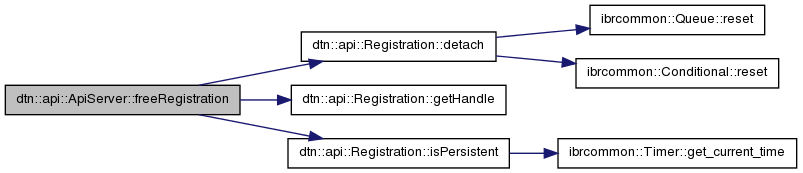

Here is the call graph for this function:

const std::string dtn::api::ApiServer::getName

(

)

const [virtual]

See also:

Component::getName()

Implements dtn::daemon::Component.

Definition at line 255 of file ApiServer.cpp.

Registration & dtn::api::ApiServer::getRegistration

(

const std::string &

handle

)

[virtual]

retrieve a registration for a given handle from the ApiServers registration list the registration is automatically set into the attached state

Parameters:

handle

the handle of the registration to return

Exceptions:

Registration::AlreadyAttachedException	the registration is already attached to a different client
Registration::NotFoundException	no registration was found for the given handle

Returns:

the registration with the given handle

Implements dtn::api::ApiServerInterface.

Definition at line 206 of file ApiServer.cpp.

void dtn::api::ApiServer::processIncomingBundle	(	const dtn::data::EID &	source,
		dtn::data::Bundle &	bundle
	)		[virtual]

Implements dtn::api::ApiServerInterface.

Definition at line 136 of file ApiServer.cpp.

References dtn::data::PrimaryBlock::_custodian, dtn::data::PrimaryBlock::_destination, dtn::data::PrimaryBlock::_reportto, dtn::data::PrimaryBlock::_source, dtn::data::PrimaryBlock::_timestamp, dtn::data::CompressedPayloadBlock::compress(), dtn::data::CompressedPayloadBlock::COMPRESSION_ZLIB, dtn::data::PrimaryBlock::DTNSEC_REQUEST_ENCRYPT, dtn::data::PrimaryBlock::DTNSEC_REQUEST_SIGN, dtn::security::SecurityManager::encrypt(), dtn::data::PrimaryBlock::get(), dtn::data::Bundle::getBlock(), dtn::security::SecurityManager::getInstance(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, dtn::data::PrimaryBlock::IBRDTN_REQUEST_COMPRESSION, dtn::data::Bundle::push_front(), dtn::net::BundleReceivedEvent::raise(), dtn::data::PrimaryBlock::set(), dtn::security::SecurityManager::sign(), and ibrcommon::Exception::what().

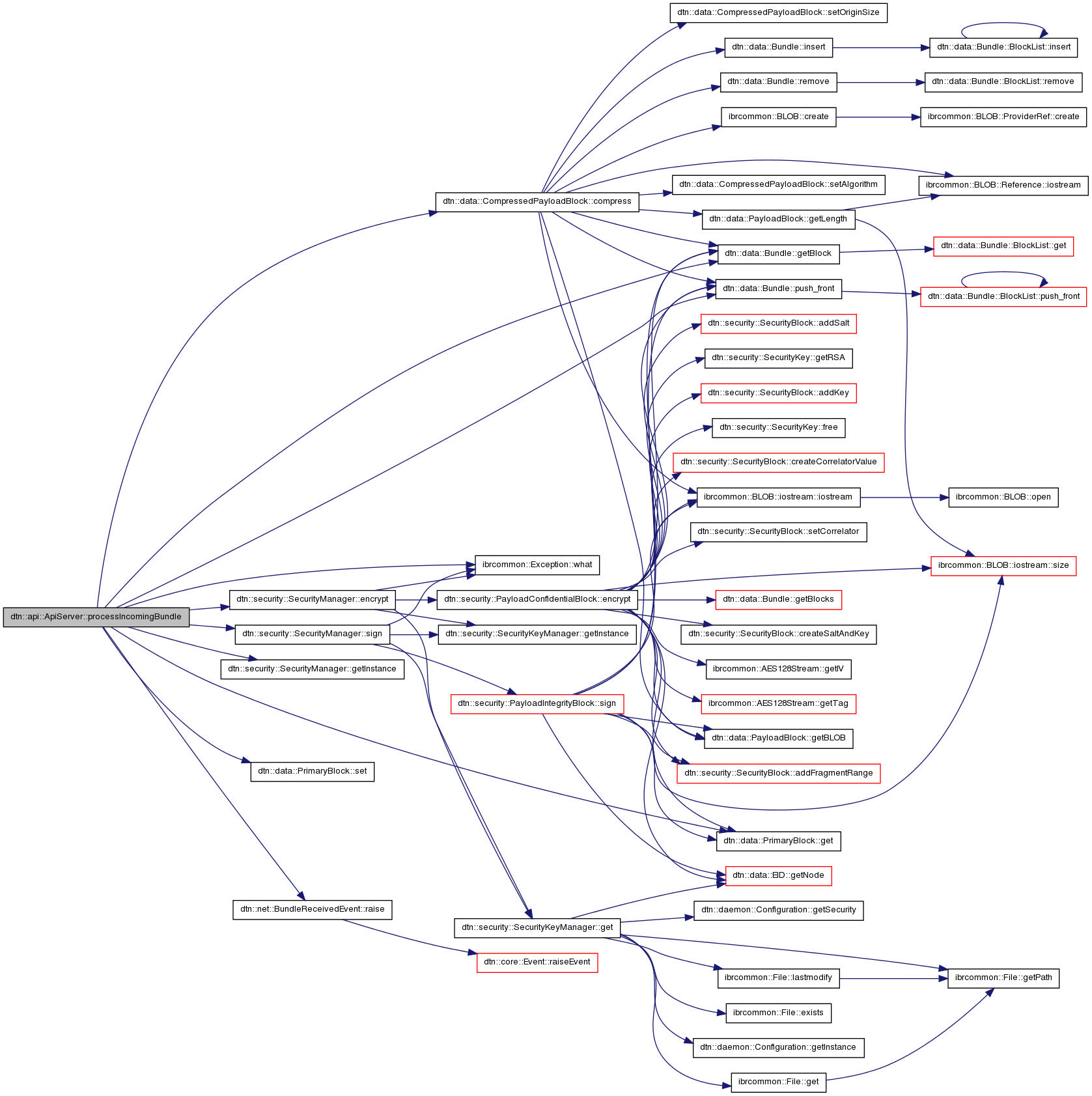

Here is the call graph for this function:

void dtn::api::ApiServer::raiseEvent

(

const dtn::core::Event *

evt

)

[virtual]

Implements dtn::core::EventReceiver.

Definition at line 307 of file ApiServer.cpp.

References dtn::routing::QueueBundleEvent::bundle, dtn::data::MetaBundle::destination, dtn::api::ClientHandler::eventNodeAvailable(), dtn::api::ClientHandler::eventNodeUnavailable(), dtn::data::BundleID::fragment, dtn::core::NodeEvent::getAction(), dtn::core::NodeEvent::getNode(), dtn::api::ClientHandler::getRegistration(), dtn::api::Registration::hasSubscribed(), dtn::core::NODE_AVAILABLE, dtn::core::NODE_UNAVAILABLE, dtn::api::Registration::notify(), and dtn::api::Registration::NOTIFY_BUNDLE_AVAILABLE.

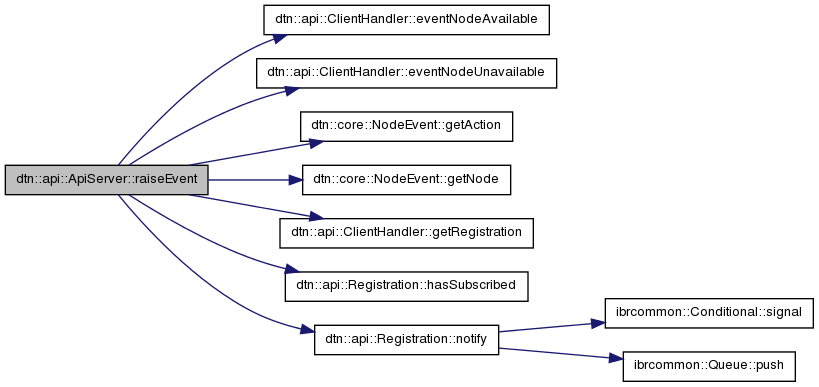

Here is the call graph for this function:

size_t dtn::api::ApiServer::timeout

(

ibrcommon::Timer *

)

[virtual]

Removes expired registrations.

Exceptions:

ibrcommon::Timer::StopTimerException

thrown, if the GarbageCollector should be stopped

See also:

ibrcommon::TimerCallback::timeout(Timer*)

Returns:

the seconds till the GarbageCollector should be triggered next

Implements ibrcommon::TimerCallback.

Definition at line 224 of file ApiServer.cpp.

References IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

---

The documentation for this class was generated from the following files:

• daemon/src/api/ApiServer.h
• daemon/src/api/ApiServer.cpp
