#include <BinaryStreamClient.h>

Inheritance diagram for dtn::api::BinaryStreamClient:

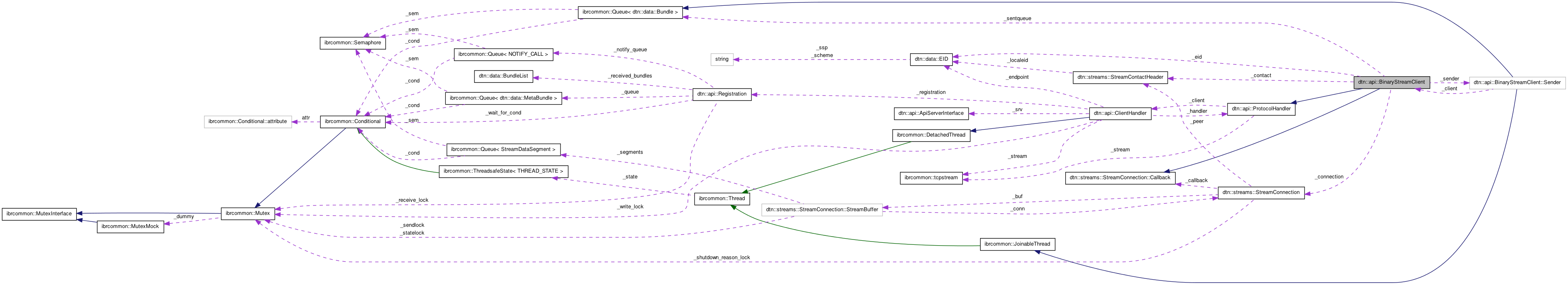

Collaboration diagram for dtn::api::BinaryStreamClient:

Classes
class	Sender
Public Member Functions
	BinaryStreamClient (ClientHandler &client, ibrcommon::tcpstream &stream)
virtual	~BinaryStreamClient ()
virtual void	eventShutdown (dtn::streams::StreamConnection::ConnectionShutdownCases csc)
virtual void	eventTimeout ()
virtual void	eventError ()
virtual void	eventConnectionDown ()
virtual void	eventConnectionUp (const dtn::streams::StreamContactHeader &header)
virtual void	eventBundleRefused ()
virtual void	eventBundleForwarded ()
virtual void	eventBundleAck (size_t ack)
const dtn::data::EID &	getPeer () const
void	queue (const dtn::data::Bundle &bundle)
void	received (const dtn::streams::StreamContactHeader &h)
void	run ()
void	finally ()
bool	__cancellation ()
bool	good () const
Friends
class	Sender

Detailed Description

Definition at line 19 of file BinaryStreamClient.h.

Constructor & Destructor Documentation

dtn::api::BinaryStreamClient::BinaryStreamClient	(	ClientHandler &	client,
		ibrcommon::tcpstream &	stream
	)

Definition at line 24 of file BinaryStreamClient.cpp.

dtn::api::BinaryStreamClient::~BinaryStreamClient ( ) [virtual]

Definition at line 29 of file BinaryStreamClient.cpp.

Member Function Documentation

bool dtn::api::BinaryStreamClient::__cancellation ( ) [virtual]

Implements dtn::api::ProtocolHandler.

Definition at line 117 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_stream, ibrcommon::tcpstream::close(), dtn::streams::StreamConnection::CONNECTION_SHUTDOWN_ERROR, and dtn::streams::StreamConnection::shutdown().

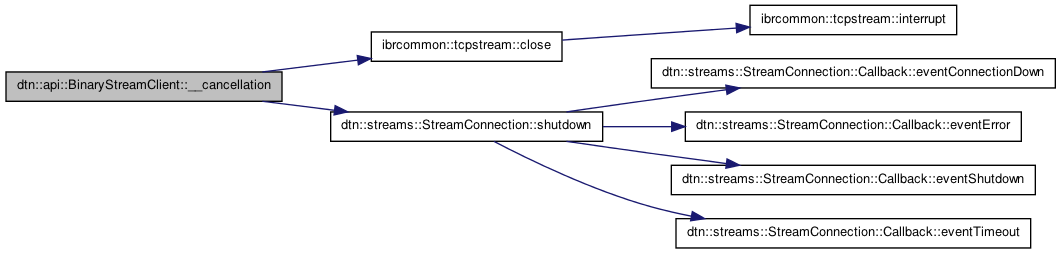

Here is the call graph for this function:

void dtn::api::BinaryStreamClient::eventBundleAck ( size_t ack ) [virtual]

This method is called if a ACK is received.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 112 of file BinaryStreamClient.cpp.

void dtn::api::BinaryStreamClient::eventBundleForwarded ( ) [virtual]

This method is called if a bundle is refused by the peer.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 97 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_client, dtn::api::Registration::delivered(), ibrcommon::Queue< T >::getnpop(), and dtn::api::ClientHandler::getRegistration().

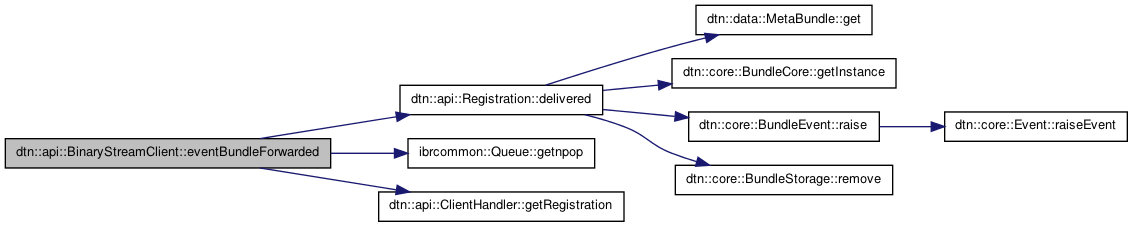

Here is the call graph for this function:

void dtn::api::BinaryStreamClient::eventBundleRefused ( ) [virtual]

This method is called if a bundle is refused by the peer.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 84 of file BinaryStreamClient.cpp.

References ibrcommon::Queue< T >::getnpop().

Here is the call graph for this function:

void dtn::api::BinaryStreamClient::eventConnectionDown ( ) [virtual]

This method is called if a connection went down.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 70 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_client, dtn::api::ClientHandler::getRegistration(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::api::Registration::unsubscribe(), and ibrcommon::Exception::what().

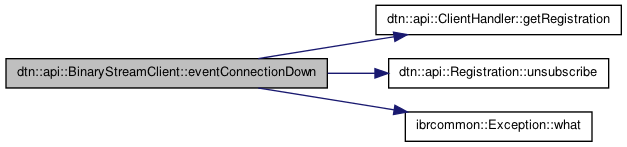

Here is the call graph for this function:

void dtn::api::BinaryStreamClient::eventConnectionUp ( const dtn::streams::StreamContactHeader & header ) [virtual]

This method is called if a handshake was successful.

Parameters:

header

Implements dtn::streams::StreamConnection::Callback.

Definition at line 51 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_client, dtn::streams::StreamContactHeader::_localeid, dtn::data::EID::CBHE_SCHEME, dtn::api::ClientHandler::getRegistration(), dtn::data::EID::getString(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, and dtn::api::Registration::subscribe().

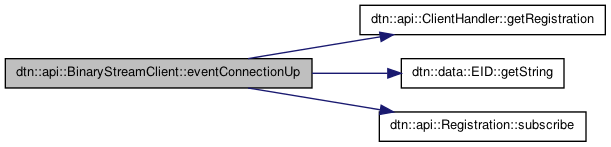

Here is the call graph for this function:

void dtn::api::BinaryStreamClient::eventError ( ) [virtual]

This method is called if a error occured in the stream.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 47 of file BinaryStreamClient.cpp.

void dtn::api::BinaryStreamClient::eventShutdown ( dtn::streams::StreamConnection::ConnectionShutdownCases csc ) [virtual]

This method is called if a SHUTDOWN message is received.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 39 of file BinaryStreamClient.cpp.

void dtn::api::BinaryStreamClient::eventTimeout ( ) [virtual]

This method is called if the stream is closed by a TIMEOUT.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 43 of file BinaryStreamClient.cpp.

void dtn::api::BinaryStreamClient::finally ( void ) [virtual]

Implements dtn::api::ProtocolHandler.

Definition at line 130 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_stream, ibrcommon::tcpstream::close(), IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

Here is the call graph for this function:

const dtn::data::EID & dtn::api::BinaryStreamClient::getPeer ( ) const

Definition at line 34 of file BinaryStreamClient.cpp.

bool dtn::api::BinaryStreamClient::good ( ) const

Definition at line 188 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_stream.

void dtn::api::BinaryStreamClient::queue ( const dtn::data::Bundle & bundle )

Definition at line 253 of file BinaryStreamClient.cpp.

void dtn::api::BinaryStreamClient::received ( const dtn::streams::StreamContactHeader & h )

void dtn::api::BinaryStreamClient::run ( void ) [virtual]

Implements dtn::api::ProtocolHandler.

Definition at line 145 of file BinaryStreamClient.cpp.

References dtn::api::ProtocolHandler::_client, dtn::streams::StreamConnection::CONNECTION_SHUTDOWN_ERROR, dtn::api::ClientHandler::getAPIServer(), dtn::streams::StreamConnection::handshake(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleCore::local, dtn::api::ApiServerInterface::processIncomingBundle(), dtn::data::PrimaryBlock::relabel(), dtn::streams::StreamContactHeader::REQUEST_ACKNOWLEDGMENTS, dtn::streams::StreamConnection::shutdown(), and ibrcommon::Exception::what().

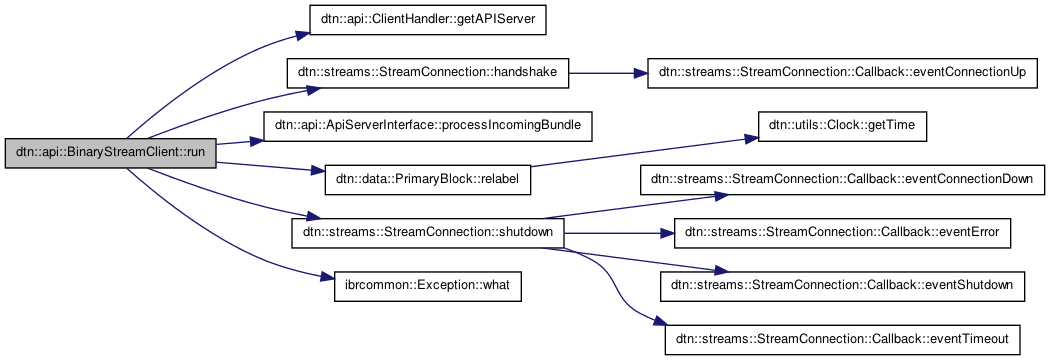

Here is the call graph for this function:

Friends And Related Function Documentation

friend class Sender [friend]

Definition at line 63 of file BinaryStreamClient.h.

The documentation for this class was generated from the following files:

daemon/src/api/BinaryStreamClient.h
daemon/src/api/BinaryStreamClient.cpp
