#include <APIClient.h>

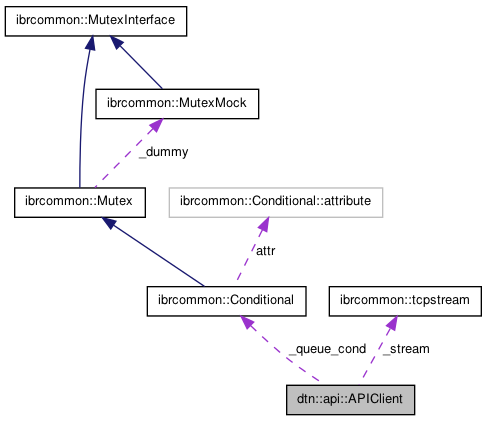

Collaboration diagram for dtn::api::APIClient:

Classes
class	Message
Public Types
enum	STATUS_CODES { API_STATUS_CONTINUE = 100, API_STATUS_OK = 200, API_STATUS_CREATED = 201, API_STATUS_ACCEPTED = 202, API_STATUS_FOUND = 302, API_STATUS_BAD_REQUEST = 400, API_STATUS_UNAUTHORIZED = 401, API_STATUS_FORBIDDEN = 403, API_STATUS_NOT_FOUND = 404, API_STATUS_NOT_ALLOWED = 405, API_STATUS_NOT_ACCEPTABLE = 406, API_STATUS_CONFLICT = 409, API_STATUS_INTERNAL_ERROR = 500, API_STATUS_NOT_IMPLEMENTED = 501, API_STATUS_SERVICE_UNAVAILABLE = 503, API_STATUS_VERSION_NOT_SUPPORTED = 505, API_STATUS_NOTIFY_COMMON = 600, API_STATUS_NOTIFY_NEIGHBOR = 601, API_STATUS_NOTIFY_BUNDLE = 602 }
Public Member Functions
	APIClient (ibrcommon::tcpstream &stream)
virtual	~APIClient ()
void	connect ()
void	setEndpoint (const std::string &endpoint)
void	subscribe (const dtn::data::EID &eid)
void	unsubscribe (const dtn::data::EID &eid)
std::list< dtn::data::EID >	getSubscriptions ()
virtual dtn::api::Bundle	get (dtn::data::BundleID &id)
virtual dtn::api::Bundle	get ()
virtual void	send (const dtn::api::Bundle &bundle)
Message	wait ()
void	unblock_wait ()
void	notify_delivered (const dtn::api::Bundle &b)
void	notify_delivered (const dtn::data::BundleID &id)
Protected Member Functions
virtual void	register_put (const dtn::data::Bundle &bundle)
virtual void	register_clear ()
virtual void	register_free ()
virtual void	register_store ()
virtual void	register_send ()
virtual dtn::data::Bundle	register_get ()
virtual int	__get_return ()
Message	__get_message ()
Static Protected Member Functions
static dtn::data::BundleID	readBundleID (const std::string &data)
Protected Attributes
ibrcommon::tcpstream &	_stream
ibrcommon::Conditional	_queue_cond
bool	_get_busy
std::queue< Message >	_notify_queue
std::queue< Message >	_status_queue

Detailed Description

This is an abstract class is the base for any API connection to a IBR-DTN daemon. It uses an existing I/O stream to communicate bidirectional with the daemon.

For asynchronous reception of bundle this class contains a thread which deals the receiving part of the communication and calls the received() methods which should be overwritten.

Definition at line 29 of file APIClient.h.

Member Enumeration Documentation

enum dtn::api::APIClient::STATUS_CODES

Enumerator:

API_STATUS_CONTINUE
API_STATUS_OK
API_STATUS_CREATED
API_STATUS_ACCEPTED
API_STATUS_FOUND
API_STATUS_BAD_REQUEST
API_STATUS_UNAUTHORIZED
API_STATUS_FORBIDDEN
API_STATUS_NOT_FOUND
API_STATUS_NOT_ALLOWED
API_STATUS_NOT_ACCEPTABLE
API_STATUS_CONFLICT
API_STATUS_INTERNAL_ERROR
API_STATUS_NOT_IMPLEMENTED
API_STATUS_SERVICE_UNAVAILABLE
API_STATUS_VERSION_NOT_SUPPORTED
API_STATUS_NOTIFY_COMMON
API_STATUS_NOTIFY_NEIGHBOR
API_STATUS_NOTIFY_BUNDLE

Definition at line 32 of file APIClient.h.

Constructor & Destructor Documentation

dtn::api::APIClient::APIClient ( ibrcommon::tcpstream & stream )

Definition at line 28 of file APIClient.cpp.

dtn::api::APIClient::~APIClient ( ) [virtual]

Virtual destructor for this class.

Definition at line 33 of file APIClient.cpp.

Member Function Documentation

APIClient::Message dtn::api::APIClient::__get_message ( ) [protected]

Definition at line 44 of file APIClient.cpp.

References _stream.

Referenced by __get_return(), and wait().

int dtn::api::APIClient::__get_return ( ) [protected, virtual]

Definition at line 60 of file APIClient.cpp.

References __get_message(), _get_busy, _notify_queue, _queue_cond, _status_queue, dtn::api::APIClient::Message::code, ibrcommon::Conditional::signal(), and ibrcommon::Conditional::wait().

Referenced by get(), getSubscriptions(), notify_delivered(), register_clear(), register_free(), register_get(), register_put(), register_send(), register_store(), setEndpoint(), subscribe(), and unsubscribe().

Here is the call graph for this function:

void dtn::api::APIClient::connect ( )

Definition at line 37 of file APIClient.cpp.

References _stream.

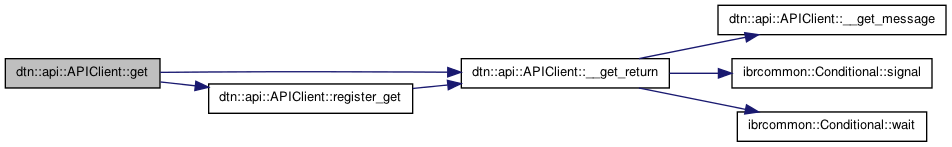

dtn::api::Bundle dtn::api::APIClient::get ( dtn::data::BundleID & id ) [virtual]

get a specific bundle

Parameters:

bundle

Definition at line 163 of file APIClient.cpp.

References __get_return(), _stream, API_STATUS_NOT_FOUND, API_STATUS_OK, and register_get().

Here is the call graph for this function:

dtn::api::Bundle dtn::api::APIClient::get ( ) [virtual]

Get the next bundle in the queue

Returns:

Definition at line 189 of file APIClient.cpp.

References __get_return(), _stream, API_STATUS_NOT_FOUND, API_STATUS_OK, and register_get().

Here is the call graph for this function:

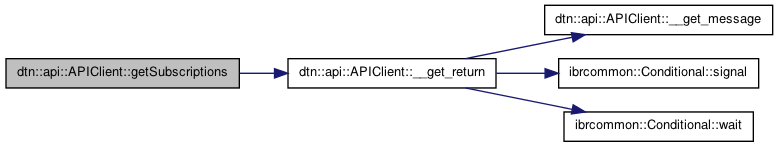

std::list< dtn::data::EID > dtn::api::APIClient::getSubscriptions ( )

Returns:: a list of subscriptions

Definition at line 134 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_OK.

Here is the call graph for this function:

void dtn::api::APIClient::notify_delivered ( const dtn::api::Bundle & b )

notify the daemon about a delivered bundle

Parameters:

id

Definition at line 214 of file APIClient.cpp.

References dtn::api::Bundle::_b.

void dtn::api::APIClient::notify_delivered ( const dtn::data::BundleID & id )

Definition at line 220 of file APIClient.cpp.

References __get_return(), _stream, API_STATUS_NOT_FOUND, and API_STATUS_OK.

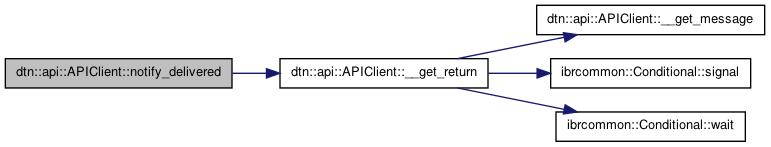

Here is the call graph for this function:

dtn::data::BundleID dtn::api::APIClient::readBundleID ( const std::string & data ) [static, protected]

Definition at line 399 of file APIClient.cpp.

References dtn::utils::Utils::tokenize().

Here is the call graph for this function:

void dtn::api::APIClient::register_clear ( ) [protected, virtual]

Definition at line 325 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_OK.

Here is the call graph for this function:

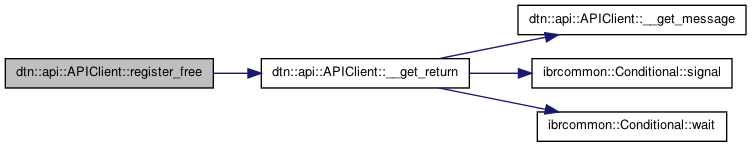

void dtn::api::APIClient::register_free ( ) [protected, virtual]

Definition at line 339 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_OK.

Here is the call graph for this function:

dtn::data::Bundle dtn::api::APIClient::register_get ( ) [protected, virtual]

Definition at line 381 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_OK.

Referenced by get().

Here is the call graph for this function:

void dtn::api::APIClient::register_put ( const dtn::data::Bundle & bundle ) [protected, virtual]

upload a bundle into the register

Parameters:

bundle

Definition at line 294 of file APIClient.cpp.

References __get_return(), _stream, API_STATUS_CONTINUE, API_STATUS_NOT_ACCEPTABLE, and API_STATUS_OK.

Referenced by send().

Here is the call graph for this function:

void dtn::api::APIClient::register_send ( ) [protected, virtual]

Definition at line 367 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_OK.

Referenced by send().

Here is the call graph for this function:

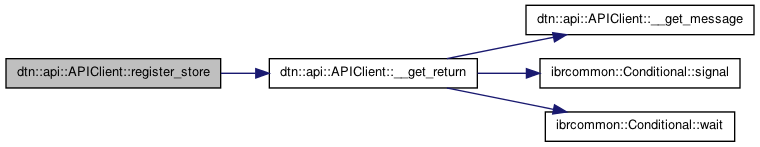

void dtn::api::APIClient::register_store ( ) [protected, virtual]

Definition at line 353 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_OK.

Here is the call graph for this function:

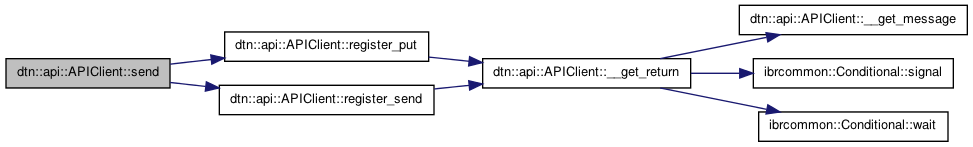

void dtn::api::APIClient::send ( const dtn::api::Bundle & bundle ) [virtual]

Send a bundle to the daemon

Parameters:

bundle

Definition at line 208 of file APIClient.cpp.

References dtn::api::Bundle::_b, register_put(), and register_send().

Here is the call graph for this function:

void dtn::api::APIClient::setEndpoint ( const std::string & endpoint )

set an application endpoint identifier

Parameters:

endpoint

Definition at line 104 of file APIClient.cpp.

References __get_return(), _stream, and API_STATUS_ACCEPTED.

Here is the call graph for this function:

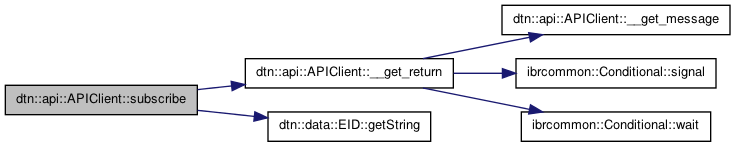

void dtn::api::APIClient::subscribe ( const dtn::data::EID & eid )

add subscription of a group EID

Parameters:

eid

Definition at line 114 of file APIClient.cpp.

References __get_return(), _stream, API_STATUS_ACCEPTED, and dtn::data::EID::getString().

Here is the call graph for this function:

void dtn::api::APIClient::unblock_wait ( )

abort all wait() calls

Definition at line 288 of file APIClient.cpp.

References _queue_cond, and ibrcommon::Conditional::abort().

Here is the call graph for this function:

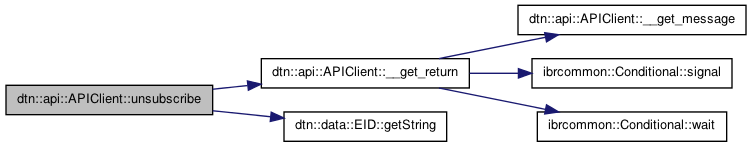

void dtn::api::APIClient::unsubscribe ( const dtn::data::EID & eid )

remove subscription of a group EID

Parameters:

eid

Definition at line 124 of file APIClient.cpp.

References __get_return(), _stream, API_STATUS_ACCEPTED, and dtn::data::EID::getString().

Here is the call graph for this function:

APIClient::Message dtn::api::APIClient::wait ( )

wait for a notify

Definition at line 244 of file APIClient.cpp.

References __get_message(), _get_busy, _notify_queue, _queue_cond, _status_queue, dtn::api::APIClient::Message::code, ibrcommon::Conditional::signal(), and ibrcommon::Conditional::wait().

Here is the call graph for this function:

Member Data Documentation

bool dtn::api::APIClient::_get_busy [protected]

Definition at line 162 of file APIClient.h.

Referenced by __get_return(), and wait().

std::queue<Message> dtn::api::APIClient::_notify_queue [protected]

Definition at line 163 of file APIClient.h.

Referenced by __get_return(), and wait().

ibrcommon::Conditional dtn::api::APIClient::_queue_cond [protected]

Definition at line 161 of file APIClient.h.

Referenced by __get_return(), unblock_wait(), and wait().

std::queue<Message> dtn::api::APIClient::_status_queue [protected]

Definition at line 164 of file APIClient.h.

Referenced by __get_return(), and wait().

ibrcommon::tcpstream& dtn::api::APIClient::_stream [protected]

Definition at line 158 of file APIClient.h.

Referenced by __get_message(), connect(), get(), getSubscriptions(), notify_delivered(), register_clear(), register_free(), register_get(), register_put(), register_send(), register_store(), setEndpoint(), subscribe(), and unsubscribe().

The documentation for this class was generated from the following files:

ibrdtn/ibrdtn/api/APIClient.h
ibrdtn/ibrdtn/api/APIClient.cpp
