ibrcommon::MulticastSocket Class Reference

#include <MulticastSocket.h>

List of all members.

Public Member Functions
	MulticastSocket (const int fd)
virtual	~MulticastSocket ()
void	setInterface (const vinterface &iface)
void	joinGroup (const vaddress &group)
void	joinGroup (const vaddress &group, const vinterface &iface)
void	leaveGroup (const vaddress &group)
void	leaveGroup (const vaddress &group, const vinterface &iface)

---

Detailed Description

A MulticastSocket is derived from udpsocket and provides operations for sending and receiving multicast messages over UDP.

Definition at line 21 of file MulticastSocket.h.

---

Constructor & Destructor Documentation

ibrcommon::MulticastSocket::MulticastSocket

(

const int

fd

)

Definition at line 21 of file MulticastSocket.cpp.

ibrcommon::MulticastSocket::~MulticastSocket

(

)

[virtual]

Definition at line 26 of file MulticastSocket.cpp.

---

Member Function Documentation

void ibrcommon::MulticastSocket::joinGroup

(

const vaddress &

group

)

Join a multicast group.

Parameters:

group

The multicast group to join.

Definition at line 60 of file MulticastSocket.cpp.

References ibrcommon::vaddress::get(), ibrcommon::vaddress::getFamily(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, and ibrcommon::vaddress::toString().

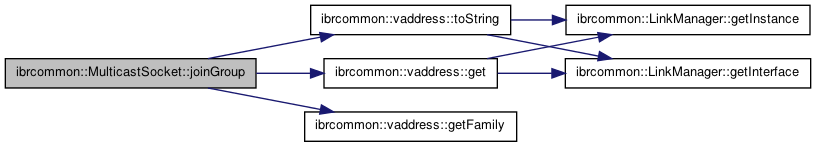

Here is the call graph for this function:

void ibrcommon::MulticastSocket::joinGroup	(	const vaddress &	group,
		const vinterface &	iface
	)

Join a multicast group.

Parameters:

group	The multicast group to join.
iface	The interface to use for this multicast group.

Definition at line 79 of file MulticastSocket.cpp.

References ibrcommon::vaddress::get(), ibrcommon::vinterface::getAddresses(), ibrcommon::vaddress::getFamily(), IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, ibrcommon::vaddress::toString(), and ibrcommon::vaddress::VADDRESS_INET.

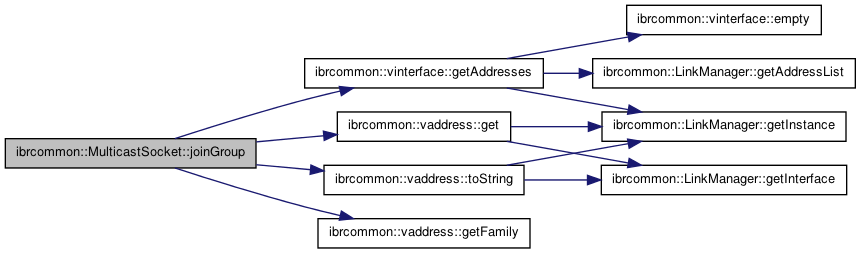

Here is the call graph for this function:

void ibrcommon::MulticastSocket::leaveGroup

(

const vaddress &

group

)

Leave a multicast group.

Parameters:

group

Definition at line 129 of file MulticastSocket.cpp.

References ibrcommon::vaddress::get(), and ibrcommon::vaddress::getFamily().

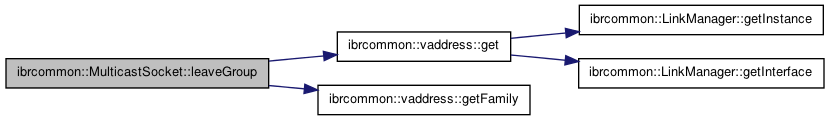

Here is the call graph for this function:

void ibrcommon::MulticastSocket::leaveGroup	(	const vaddress &	group,
		const vinterface &	iface
	)

Leave a multicast group.

Parameters:

group	The multicast group to leave.
iface	The interface used for this multicast group.

Definition at line 145 of file MulticastSocket.cpp.

References ibrcommon::vaddress::get(), and ibrcommon::vaddress::getFamily().

Here is the call graph for this function:

void ibrcommon::MulticastSocket::setInterface

(

const vinterface &

iface

)

Set the default interface for outgoing datagrams

Parameters:

iface

Definition at line 30 of file MulticastSocket.cpp.

References ibrcommon::vaddress::get(), ibrcommon::vinterface::getAddresses(), ibrcommon::vaddress::getFamily(), and ibrcommon::vaddress::VADDRESS_INET.

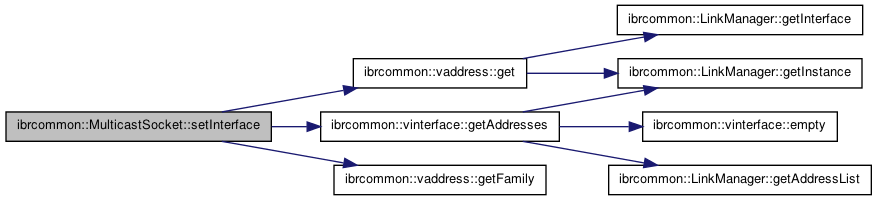

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ibrcommon/ibrcommon/net/MulticastSocket.h
• ibrcommon/ibrcommon/net/MulticastSocket.cpp
