dtn::streams::StreamConnection Class Reference

#include <StreamConnection.h>

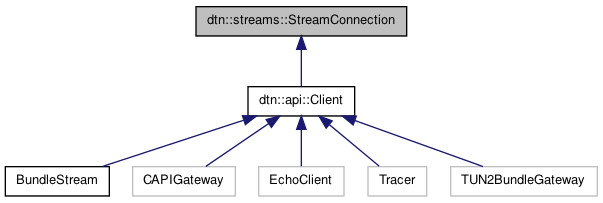

Inheritance diagram for dtn::streams::StreamConnection:

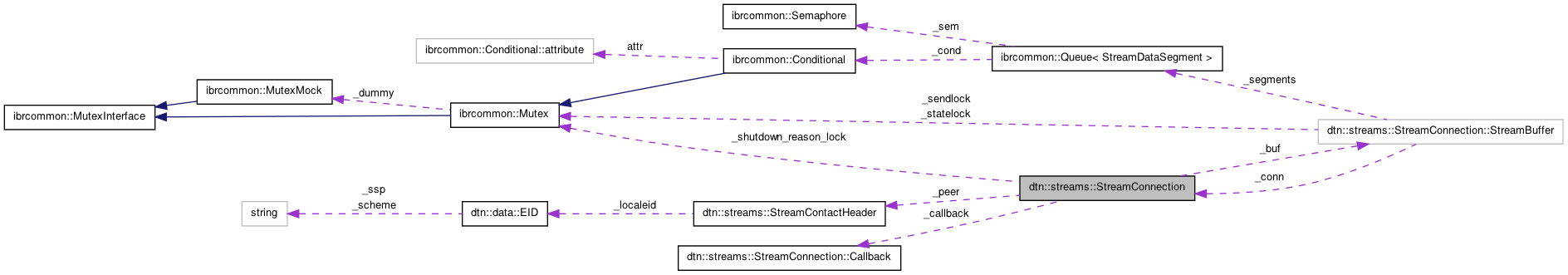

Collaboration diagram for dtn::streams::StreamConnection:

List of all members.

Classes
class	Callback
class	StreamBuffer
class	StreamClosedException
class	StreamErrorException
class	StreamShutdownException
class	TransmissionInterruptedException
Public Types
enum	ConnectionShutdownCases {   CONNECTION_SHUTDOWN_NOTSET = 0, CONNECTION_SHUTDOWN_IDLE = 1, CONNECTION_SHUTDOWN_ERROR = 2, CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN = 3,   CONNECTION_SHUTDOWN_NODE_TIMEOUT = 4, CONNECTION_SHUTDOWN_PEER_SHUTDOWN = 5 }
Public Member Functions
	StreamConnection (StreamConnection::Callback &cb, iostream &stream, const size_t buffer_size=4096)
virtual	~StreamConnection ()
void	handshake (const dtn::data::EID &eid, const size_t timeout=10, const char flags=0)
void	shutdown (ConnectionShutdownCases csc=CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN)
void	reject ()
void	keepalive ()

---

Detailed Description

Definition at line 28 of file StreamConnection.h.

---

Member Enumeration Documentation

enum dtn::streams::StreamConnection::ConnectionShutdownCases

Enumerator:

CONNECTION_SHUTDOWN_NOTSET
CONNECTION_SHUTDOWN_IDLE
CONNECTION_SHUTDOWN_ERROR
CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN
CONNECTION_SHUTDOWN_NODE_TIMEOUT
CONNECTION_SHUTDOWN_PEER_SHUTDOWN

Definition at line 31 of file StreamConnection.h.

---

Constructor & Destructor Documentation

dtn::streams::StreamConnection::StreamConnection	(	StreamConnection::Callback &	cb,
		iostream &	stream,
		const size_t	buffer_size = 4096
	)

Constructor of the StreamConnection class

Parameters:

cb	Callback object for events of this stream
stream	The underlying stream object

Definition at line 22 of file StreamConnection.cpp.

dtn::streams::StreamConnection::~StreamConnection

(

)

[virtual]

Destructor of the StreamConnection class

Returns:

Definition at line 27 of file StreamConnection.cpp.

---

Member Function Documentation

void dtn::streams::StreamConnection::handshake	(	const dtn::data::EID &	eid,
		const size_t	timeout = 10,
		const char	flags = 0
	)

Do a handshake with the other peer. This operation is needed to communicate.

Parameters:

eid	The local address of this node.
timeout	The desired timeout for this connection.

Definition at line 31 of file StreamConnection.cpp.

References dtn::streams::StreamContactHeader::_flags, dtn::streams::StreamContactHeader::_keepalive, and dtn::streams::StreamConnection::Callback::eventConnectionUp().

Referenced by dtn::api::Client::connect(), and dtn::api::ClientHandler::run().

Here is the call graph for this function:

void dtn::streams::StreamConnection::keepalive

(

)

send a keepalive

Definition at line 54 of file StreamConnection.cpp.

void dtn::streams::StreamConnection::reject

(

)

This method rejects the currently transmitted bundle

Definition at line 49 of file StreamConnection.cpp.

void dtn::streams::StreamConnection::shutdown

(

ConnectionShutdownCases

csc = CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN

)

This method shutdown the whole connection handling process. To differ between the expected cases of disconnection a connection shutdown case is needed.

CONNECTION_SHUTDOWN_IDLE The connection was idle and should go down now.

CONNECTION_SHUTDOWN_ERROR A critical tcp error occured and the connection is closed.

CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN The connection is ok, but a shutdown is requested from anywhere.

CONNECTION_SHUTDOWN_NODE_TIMEOUT The node of this connection is gone. So shutdown this connection.

CONNECTION_SHUTDOWN_PEER_SHUTDOWN The peer has shutdown this connection by a shutdown message.

Parameters:

csc	The case of the requested shutdown.

Definition at line 59 of file StreamConnection.cpp.

References CONNECTION_SHUTDOWN_ERROR, CONNECTION_SHUTDOWN_IDLE, CONNECTION_SHUTDOWN_NODE_TIMEOUT, CONNECTION_SHUTDOWN_NOTSET, CONNECTION_SHUTDOWN_PEER_SHUTDOWN, CONNECTION_SHUTDOWN_SIMPLE_SHUTDOWN, dtn::streams::StreamConnection::Callback::eventConnectionDown(), dtn::streams::StreamConnection::Callback::eventError(), dtn::streams::StreamConnection::Callback::eventShutdown(), dtn::streams::StreamConnection::Callback::eventTimeout(), dtn::streams::StreamDataSegment::MSG_SHUTDOWN_IDLE_TIMEOUT, and dtn::streams::StreamDataSegment::MSG_SHUTDOWN_NONE.

Referenced by dtn::api::Client::close(), dtn::api::ClientHandler::run(), and dtn::api::ClientHandler::shutdown().

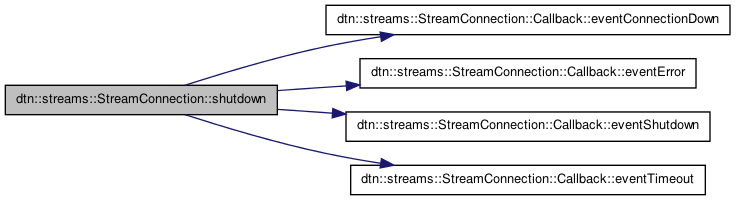

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ibrdtn/ibrdtn/streams/StreamConnection.h
• ibrdtn/ibrdtn/streams/StreamConnection.cpp
