IBR-DTNSuite 0.6
Public Types | Public Member Functions | Protected Member Functions | Friends

dtn::routing::BaseRouter::Extension Class Reference

#include <BaseRouter.h>

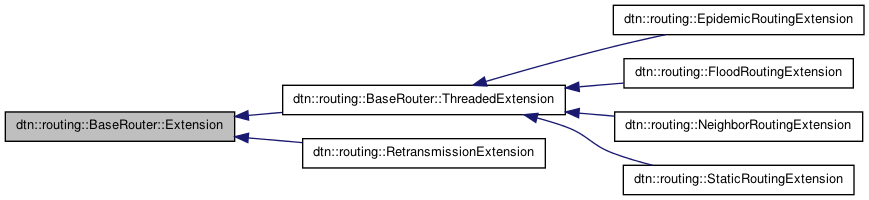

Inheritance diagram for dtn::routing::BaseRouter::Extension:
Inheritance graph
[legend]

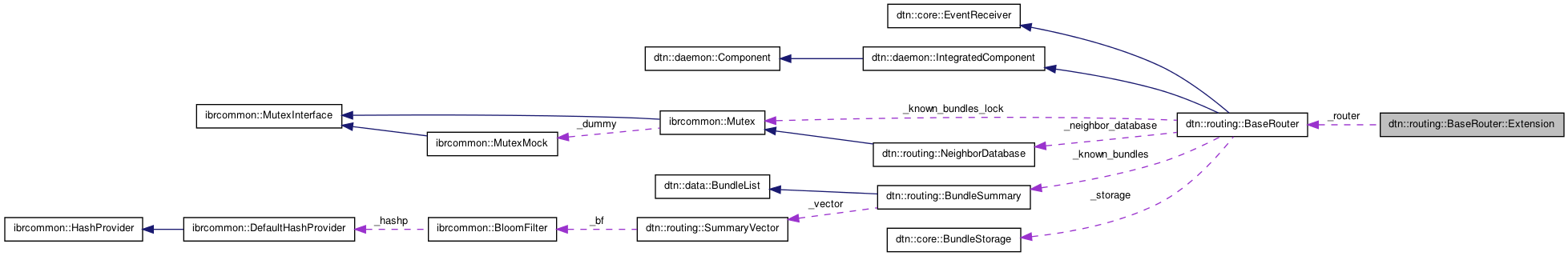

Collaboration diagram for dtn::routing::BaseRouter::Extension:
Collaboration graph
[legend]

List of all members.

Public Types

enum  CALLBACK_ACTION { ROUTE_CALLBACK_FORWARDED = 0, ROUTE_CALLBACK_ABORTED = 1, ROUTE_CALLBACK_REJECTED = 2, ROUTE_CALLBACK_DELETED = 3 }

Public Member Functions

 Extension ()
virtual ~Extension ()=0
virtual void notify (const dtn::core::Event *evt)=0
void transferTo (const dtn::data::EID &destination, const dtn::data::BundleID &id)
void transferTo (NeighborDatabase::NeighborEntry &entry, const dtn::data::BundleID &id)

Protected Member Functions

BaseRouter & operator* ()

Friends

class BaseRouter

Detailed Description

Definition at line 62 of file BaseRouter.h.

Member Enumeration Documentation

enum dtn::routing::BaseRouter::Extension::CALLBACK_ACTION
Enumerator:
ROUTE_CALLBACK_FORWARDED
ROUTE_CALLBACK_ABORTED
ROUTE_CALLBACK_REJECTED
ROUTE_CALLBACK_DELETED

Definition at line 70 of file BaseRouter.h.

Constructor & Destructor Documentation

dtn::routing::BaseRouter::Extension::Extension ( )

base implementation of the Extension class

Definition at line 51 of file BaseRouter.cpp.

dtn::routing::BaseRouter::Extension::~Extension ( ) [pure virtual]

Definition at line 54 of file BaseRouter.cpp.

Member Function Documentation

virtual void dtn::routing::BaseRouter::Extension::notify ( const dtn::core::Event *  evt) [pure virtual]

Implemented in dtn::routing::BaseRouter::ThreadedExtension, dtn::routing::EpidemicRoutingExtension, dtn::routing::FloodRoutingExtension, dtn::routing::NeighborRoutingExtension, dtn::routing::RetransmissionExtension, and dtn::routing::StaticRoutingExtension.

BaseRouter & dtn::routing::BaseRouter::Extension::operator* ( ) [protected]

Definition at line 57 of file BaseRouter.cpp.

void dtn::routing::BaseRouter::Extension::transferTo ( NeighborDatabase::NeighborEntry &  entry,
const dtn::data::BundleID &  id
)

Definition at line 80 of file BaseRouter.cpp.

References dtn::routing::NeighborDatabase::NeighborEntry::acquireTransfer(), dtn::routing::NeighborDatabase::NeighborEntry::eid, and dtn::core::BundleCore::getInstance().

Here is the call graph for this function:

void dtn::routing::BaseRouter::Extension::transferTo ( const dtn::data::EID &  destination,
const dtn::data::BundleID &  id
)

Transfer one bundle to another node.

Exceptions:
BundleNotFoundExceptionif the bundle do not exist.
Parameters:
destinationThe EID of the other node.
idThe ID of the bundle to transfer. This bundle must be stored in the storage.

Definition at line 68 of file BaseRouter.cpp.

Referenced by dtn::routing::StaticRoutingExtension::run(), dtn::routing::NeighborRoutingExtension::run(), dtn::routing::FloodRoutingExtension::run(), and dtn::routing::EpidemicRoutingExtension::run().

Friends And Related Function Documentation

friend class BaseRouter [friend]

Definition at line 91 of file BaseRouter.h.

The documentation for this class was generated from the following files:
