#include <TCPConvergenceLayer.h>

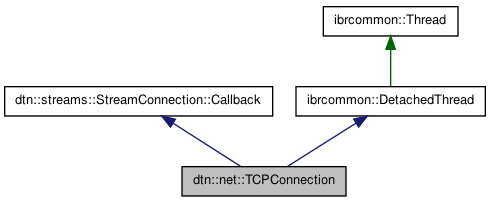

Inheritance diagram for dtn::net::TCPConnection:

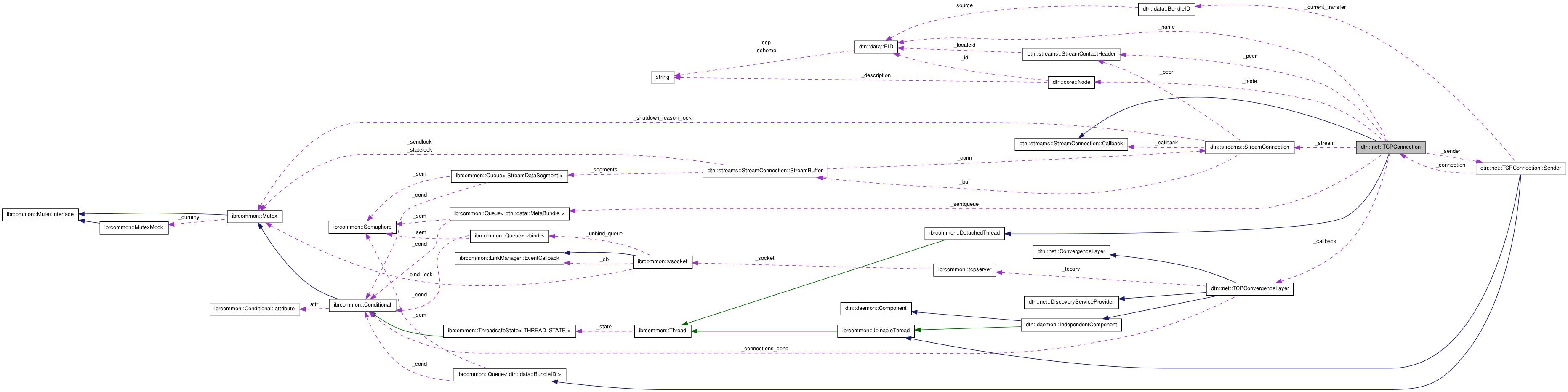

Collaboration diagram for dtn::net::TCPConnection:

Classes
class	Sender
Public Member Functions
	TCPConnection (TCPConvergenceLayer &tcpsrv, ibrcommon::tcpstream *stream, const dtn::data::EID &name, const size_t timeout=10)
	TCPConnection (TCPConvergenceLayer &tcpsrv, const dtn::core::Node &node, const dtn::data::EID &name, const size_t timeout=10)
virtual	~TCPConnection ()
virtual void	initialize ()
void	shutdown ()
const StreamContactHeader &	getHeader () const
const dtn::core::Node &	getNode () const
virtual void	eventShutdown (StreamConnection::ConnectionShutdownCases csc)
virtual void	eventTimeout ()
virtual void	eventError ()
virtual void	eventConnectionUp (const StreamContactHeader &header)
virtual void	eventConnectionDown ()
virtual void	eventBundleRefused ()
virtual void	eventBundleForwarded ()
virtual void	eventBundleAck (size_t ack)
dtn::core::Node::Protocol	getDiscoveryProtocol () const
void	queue (const dtn::data::BundleID &bundle)
bool	match (const dtn::core::Node &n) const
bool	match (const dtn::data::EID &destination) const
bool	match (const dtn::core::NodeEvent &evt) const
Protected Member Functions
void	rejectTransmission ()
void	setup ()
void	run ()
void	finally ()
bool	__cancellation ()
void	clearQueue ()
void	keepalive ()
bool	good () const
Friends
TCPConnection &	operator>> (TCPConnection &conn, dtn::data::Bundle &bundle)
TCPConnection &	operator<< (TCPConnection &conn, const dtn::data::Bundle &bundle)

Detailed Description

Definition at line 41 of file TCPConvergenceLayer.h.

Constructor & Destructor Documentation

dtn::net::TCPConnection::TCPConnection	(	TCPConvergenceLayer &	tcpsrv,
		ibrcommon::tcpstream *	stream,
		const dtn::data::EID &	name,
		const size_t	timeout = `10`
	)

Constructor for a new TCPConnection object.

Parameters:

tcpsrv
stream	TCP stream to talk to the other peer.
name
timeout

Returns:

Definition at line 40 of file TCPConnection.cpp.

References dtn::core::Node::add(), ibrcommon::tcpstream::enableKeepalive(), ibrcommon::tcpstream::enableLinger(), ibrcommon::tcpstream::enableNoDelay(), and dtn::daemon::Configuration::getInstance().

Here is the call graph for this function:

dtn::net::TCPConnection::TCPConnection	(	TCPConvergenceLayer &	tcpsrv,
		const dtn::core::Node &	node,
		const dtn::data::EID &	name,
		const size_t	timeout = `10`
	)

Constructor for a new TCPConnection object.

Parameters:

tcpsrv
node	The node to talk to.
name
timeout

Returns:

Definition at line 58 of file TCPConnection.cpp.

dtn::net::TCPConnection::~TCPConnection ( ) [virtual]

Destructor

Returns:

Definition at line 65 of file TCPConnection.cpp.

Member Function Documentation

bool dtn::net::TCPConnection::__cancellation ( ) [protected, virtual]

Reimplemented from ibrcommon::Thread.

Definition at line 207 of file TCPConnection.cpp.

void dtn::net::TCPConnection::clearQueue ( ) [protected]

Definition at line 475 of file TCPConnection.cpp.

References dtn::routing::RequeueBundleEvent::raise().

Referenced by finally().

Here is the call graph for this function:

void dtn::net::TCPConnection::eventBundleAck ( size_t ack ) [virtual]

This method is called if a ACK is received.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 179 of file TCPConnection.cpp.

void dtn::net::TCPConnection::eventBundleForwarded ( ) [virtual]

This method is called if a bundle is refused by the peer.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 160 of file TCPConnection.cpp.

References dtn::core::BUNDLE_FORWARDED, dtn::core::Node::getEID(), ibrcommon::Queue< T >::getnpop(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, dtn::core::BundleEvent::raise(), and dtn::net::TransferCompletedEvent::raise().

Here is the call graph for this function:

void dtn::net::TCPConnection::eventBundleRefused ( ) [virtual]

This method is called if a bundle is refused by the peer.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 143 of file TCPConnection.cpp.

References dtn::core::Node::getEID(), ibrcommon::Queue< T >::getnpop(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, dtn::net::TransferAbortedEvent::raise(), and dtn::net::TransferAbortedEvent::REASON_REFUSED.

Here is the call graph for this function:

void dtn::net::TCPConnection::eventConnectionDown ( ) [virtual]

This method is called if a connection went down.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 125 of file TCPConnection.cpp.

References dtn::net::ConnectionEvent::CONNECTION_DOWN, IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::net::ConnectionEvent::raise(), and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::net::TCPConnection::eventConnectionUp ( const StreamContactHeader & header ) [virtual]

This method is called if a handshake was successful.

Parameters:

header

Implements dtn::streams::StreamConnection::Callback.

Definition at line 108 of file TCPConnection.cpp.

References dtn::net::ConnectionEvent::CONNECTION_UP, dtn::net::ConnectionEvent::raise(), and dtn::core::Node::setEID().

Here is the call graph for this function:

void dtn::net::TCPConnection::eventError ( ) [virtual]

This method is called if a error occured in the stream.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 104 of file TCPConnection.cpp.

void dtn::net::TCPConnection::eventShutdown ( StreamConnection::ConnectionShutdownCases csc ) [virtual]

callback methods for tcpstream

Implements dtn::streams::StreamConnection::Callback.

Definition at line 91 of file TCPConnection.cpp.

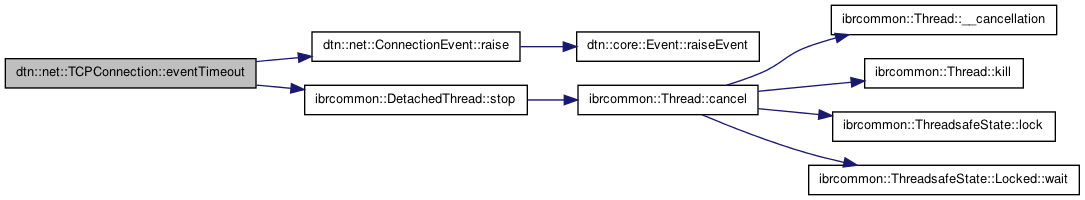

void dtn::net::TCPConnection::eventTimeout ( ) [virtual]

This method is called if the stream is closed by a TIMEOUT.

Implements dtn::streams::StreamConnection::Callback.

Definition at line 95 of file TCPConnection.cpp.

References dtn::net::ConnectionEvent::CONNECTION_TIMEOUT, dtn::net::ConnectionEvent::raise(), and ibrcommon::DetachedThread::stop().

Here is the call graph for this function:

void dtn::net::TCPConnection::finally ( void ) [protected, virtual]

This method is called when the run() method finishes.

Reimplemented from ibrcommon::Thread.

Definition at line 217 of file TCPConnection.cpp.

References clearQueue(), IBRCOMMON_LOGGER_DEBUG, and IBRCOMMON_LOGGER_ENDL.

Here is the call graph for this function:

dtn::core::Node::Protocol dtn::net::TCPConnection::getDiscoveryProtocol ( ) const

const StreamContactHeader & dtn::net::TCPConnection::getHeader ( ) const

Get the header of this connection

Returns:

Definition at line 76 of file TCPConnection.cpp.

const dtn::core::Node & dtn::net::TCPConnection::getNode ( ) const

Get the associated Node object

Returns:

Definition at line 81 of file TCPConnection.cpp.

Referenced by dtn::net::TCPConvergenceLayer::queue().

bool dtn::net::TCPConnection::good ( ) const [protected]

Definition at line 521 of file TCPConnection.cpp.

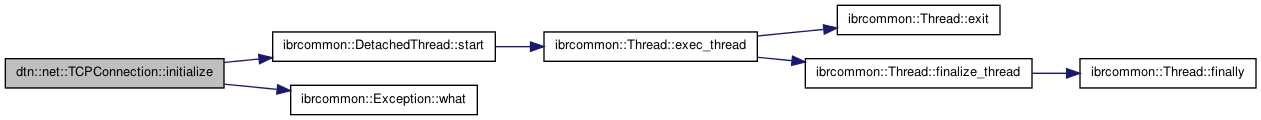

void dtn::net::TCPConnection::initialize ( ) [virtual]

This method is called after accept()

Definition at line 184 of file TCPConnection.cpp.

References IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, ibrcommon::DetachedThread::start(), and ibrcommon::Exception::what().

Referenced by dtn::net::TCPConvergenceLayer::componentRun(), dtn::net::TCPConvergenceLayer::open(), and dtn::net::TCPConvergenceLayer::queue().

Here is the call graph for this function:

void dtn::net::TCPConnection::keepalive ( ) [protected]

Definition at line 516 of file TCPConnection.cpp.

bool dtn::net::TCPConnection::match ( const dtn::data::EID & destination ) const

Definition at line 540 of file TCPConnection.cpp.

References dtn::data::EID::getNode().

Here is the call graph for this function:

bool dtn::net::TCPConnection::match ( const dtn::core::NodeEvent & evt ) const

bool dtn::net::TCPConnection::match ( const dtn::core::Node & n ) const

Definition at line 535 of file TCPConnection.cpp.

Referenced by dtn::net::TCPConvergenceLayer::open(), and dtn::net::TCPConvergenceLayer::queue().

void dtn::net::TCPConnection::queue ( const dtn::data::BundleID & bundle )

queue a bundle for this connection

Parameters:

bundle

Definition at line 71 of file TCPConnection.cpp.

Referenced by dtn::net::TCPConvergenceLayer::queue().

void dtn::net::TCPConnection::rejectTransmission ( ) [protected]

Definition at line 86 of file TCPConnection.cpp.

Referenced by run().

void dtn::net::TCPConnection::run ( ) [protected, virtual]

Abstract interface for thread context run method.

Implements ibrcommon::Thread.

Definition at line 272 of file TCPConnection.cpp.

References IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, dtn::net::BundleReceivedEvent::raise(), rejectTransmission(), dtn::streams::StreamContactHeader::REQUEST_ACKNOWLEDGMENTS, dtn::streams::StreamContactHeader::REQUEST_NEGATIVE_ACKNOWLEDGMENTS, ibrcommon::Exception::what(), and ibrcommon::Thread::yield().

Here is the call graph for this function:

void dtn::net::TCPConnection::setup ( void ) [protected, virtual]

This method is called before the run.

Reimplemented from ibrcommon::Thread.

Definition at line 239 of file TCPConnection.cpp.

References dtn::core::Node::CONN_TCPIP, dtn::core::Node::URI::decode(), dtn::core::Node::get(), dtn::daemon::Configuration::getInstance(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, ibrcommon::tcpclient::open(), and dtn::core::Node::toString().

Here is the call graph for this function:

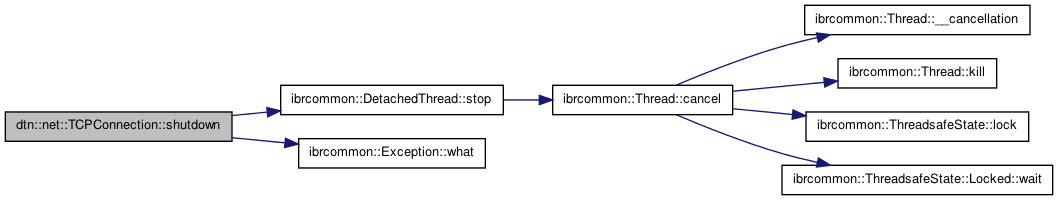

void dtn::net::TCPConnection::shutdown ( )

shutdown the whole tcp connection

Definition at line 194 of file TCPConnection.cpp.

References IBRCOMMON_LOGGER_DEBUG, IBRCOMMON_LOGGER_ENDL, ibrcommon::DetachedThread::stop(), and ibrcommon::Exception::what().

Here is the call graph for this function:

Friends And Related Function Documentation

TCPConnection& operator<<	(	TCPConnection &	conn,
		const dtn::data::Bundle &	bundle
	)		`[friend]`

Definition at line 346 of file TCPConnection.cpp.

TCPConnection& operator>>	(	TCPConnection &	conn,
		dtn::data::Bundle &	bundle
	)		`[friend]`

Definition at line 335 of file TCPConnection.cpp.

The documentation for this class was generated from the following files:

daemon/src/net/TCPConvergenceLayer.h
daemon/src/net/TCPConnection.cpp
