dtn::daemon::IndependentComponent Class Reference

#include <Component.h>

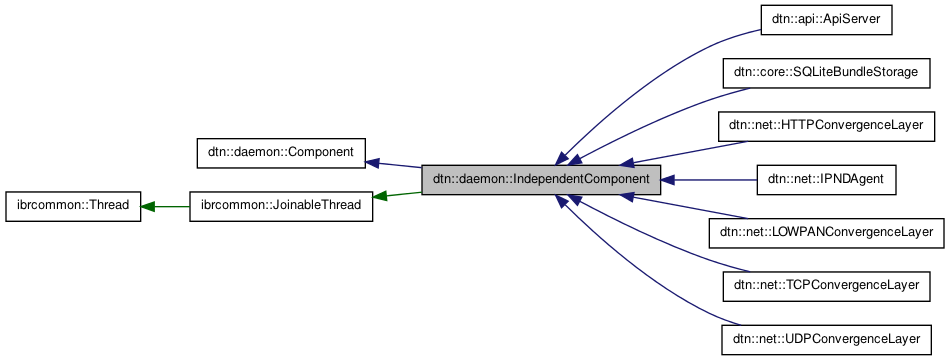

Inheritance diagram for dtn::daemon::IndependentComponent:

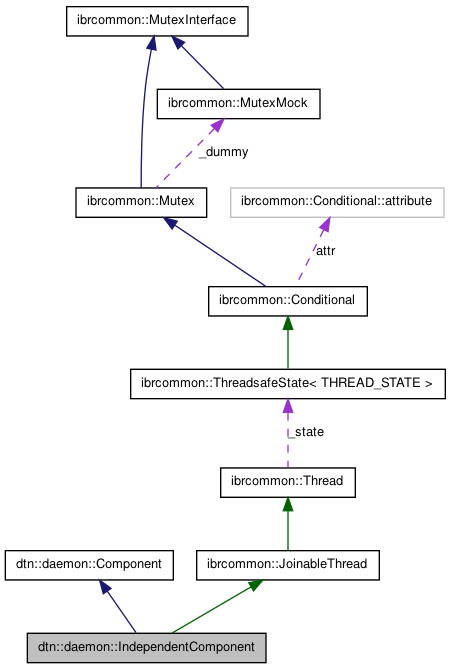

Collaboration diagram for dtn::daemon::IndependentComponent:

List of all members.

Public Member Functions
	IndependentComponent ()
virtual	~IndependentComponent ()
virtual void	initialize ()
virtual void	startup ()
virtual void	terminate ()
Protected Member Functions
void	run ()
virtual bool	__cancellation ()=0
virtual void	componentUp ()=0
virtual void	componentRun ()=0
virtual void	componentDown ()=0

---

Detailed Description

Independent components are working in an own thread.

Definition at line 56 of file Component.h.

---

Constructor & Destructor Documentation

dtn::daemon::IndependentComponent::IndependentComponent

(

)

Definition at line 21 of file Component.cpp.

dtn::daemon::IndependentComponent::~IndependentComponent

(

)

[virtual]

Definition at line 25 of file Component.cpp.

References ibrcommon::JoinableThread::join().

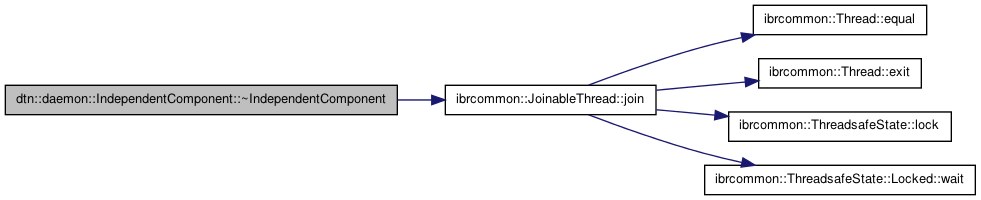

Here is the call graph for this function:

---

Member Function Documentation

virtual bool dtn::daemon::IndependentComponent::__cancellation

(

)

[protected, pure virtual]

Reimplemented from ibrcommon::Thread.

Implemented in dtn::api::ApiServer, dtn::core::SQLiteBundleStorage, dtn::net::HTTPConvergenceLayer, dtn::net::IPNDAgent, dtn::net::LOWPANConvergenceLayer, dtn::net::TCPConvergenceLayer, and dtn::net::UDPConvergenceLayer.

virtual void dtn::daemon::IndependentComponent::componentDown

(

)

[protected, pure virtual]

Implemented in dtn::api::ApiServer, dtn::core::SQLiteBundleStorage, dtn::net::HTTPConvergenceLayer, dtn::net::IPNDAgent, dtn::net::LOWPANConvergenceLayer, dtn::net::TCPConvergenceLayer, and dtn::net::UDPConvergenceLayer.

Referenced by terminate().

virtual void dtn::daemon::IndependentComponent::componentRun

(

)

[protected, pure virtual]

Implemented in dtn::api::ApiServer, dtn::core::SQLiteBundleStorage, dtn::net::HTTPConvergenceLayer, dtn::net::IPNDAgent, dtn::net::LOWPANConvergenceLayer, dtn::net::TCPConvergenceLayer, and dtn::net::UDPConvergenceLayer.

Referenced by run().

virtual void dtn::daemon::IndependentComponent::componentUp

(

)

[protected, pure virtual]

Implemented in dtn::api::ApiServer, dtn::core::SQLiteBundleStorage, dtn::net::HTTPConvergenceLayer, dtn::net::IPNDAgent, dtn::net::LOWPANConvergenceLayer, dtn::net::TCPConvergenceLayer, and dtn::net::UDPConvergenceLayer.

Referenced by initialize().

void dtn::daemon::IndependentComponent::initialize

(

)

[virtual]

Set up the component. At this stage no other components should be used.

Implements dtn::daemon::Component.

Definition at line 30 of file Component.cpp.

References componentUp().

Here is the call graph for this function:

void dtn::daemon::IndependentComponent::run

(

)

[protected, virtual]

Abstract interface for thread context run method.

Implements ibrcommon::Thread.

Definition at line 50 of file Component.cpp.

References componentRun().

Here is the call graph for this function:

void dtn::daemon::IndependentComponent::startup

(

)

[virtual]

Start up the component. At this stage all other components are ready.

Implements dtn::daemon::Component.

Definition at line 35 of file Component.cpp.

References IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, ibrcommon::JoinableThread::start(), and ibrcommon::Exception::what().

Here is the call graph for this function:

void dtn::daemon::IndependentComponent::terminate

(

)

[virtual]

Terminate the component and do some cleanup stuff. All other components still exists, but may not serve signals.

Implements dtn::daemon::Component.

Definition at line 44 of file Component.cpp.

References componentDown(), and ibrcommon::JoinableThread::stop().

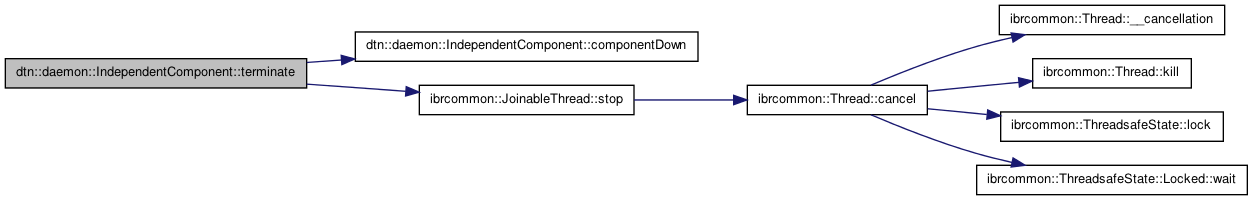

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• daemon/src/Component.h
• daemon/src/Component.cpp
