dtn::net::DiscoveryAgent Class Reference

#include <DiscoveryAgent.h>

Inherits dtn::daemon::IndependentComponent, and ibrcommon::SimpleTimerCallback.

Inherited by dtn::net::IPNDAgent.

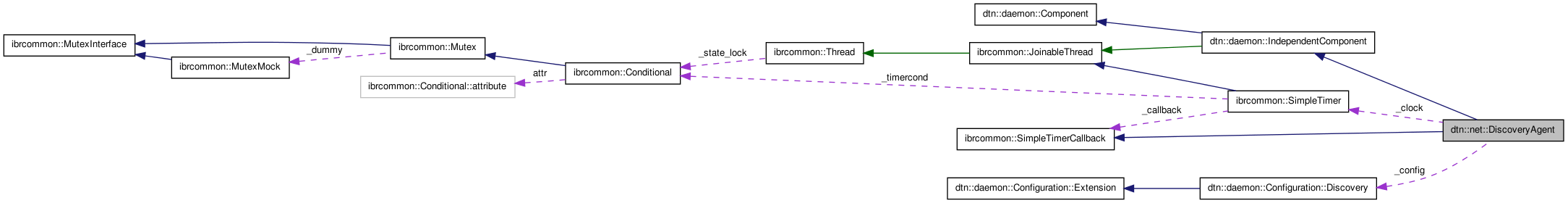

Collaboration diagram for dtn::net::DiscoveryAgent:

List of all members.

Public Member Functions
	DiscoveryAgent (const dtn::daemon::Configuration::Discovery &config)
virtual	~DiscoveryAgent ()=0
void	received (const DiscoveryAnnouncement &announcement)
void	addService (string name, string parameters)
void	addService (DiscoveryServiceProvider *provider)
virtual size_t	timeout (size_t identifier)
Protected Member Functions
virtual void	componentUp ()
virtual void	componentDown ()
virtual void	componentRun ()=0
virtual void	sendAnnoucement (const u_int16_t &sn, std::list< DiscoveryService > &services)=0
Protected Attributes
const dtn::daemon::Configuration::Discovery &	_config

---

Detailed Description

Definition at line 30 of file DiscoveryAgent.h.

---

Constructor & Destructor Documentation

dtn::net::DiscoveryAgent::DiscoveryAgent

(

const dtn::daemon::Configuration::Discovery &

config

)

Definition at line 23 of file DiscoveryAgent.cpp.

dtn::net::DiscoveryAgent::~DiscoveryAgent

(

)

[pure virtual]

Definition at line 28 of file DiscoveryAgent.cpp.

---

Member Function Documentation

void dtn::net::DiscoveryAgent::addService	(	string	name,
		string	parameters
	)

Definition at line 46 of file DiscoveryAgent.cpp.

Referenced by createConvergenceLayers().

void dtn::net::DiscoveryAgent::addService

(

DiscoveryServiceProvider *

provider

)

Definition at line 52 of file DiscoveryAgent.cpp.

void dtn::net::DiscoveryAgent::componentDown

(

)

[protected, virtual]

Definition at line 38 of file DiscoveryAgent.cpp.

References ibrcommon::JoinableThread::join(), ibrcommon::SimpleTimer::remove(), and ibrcommon::JoinableThread::stop().

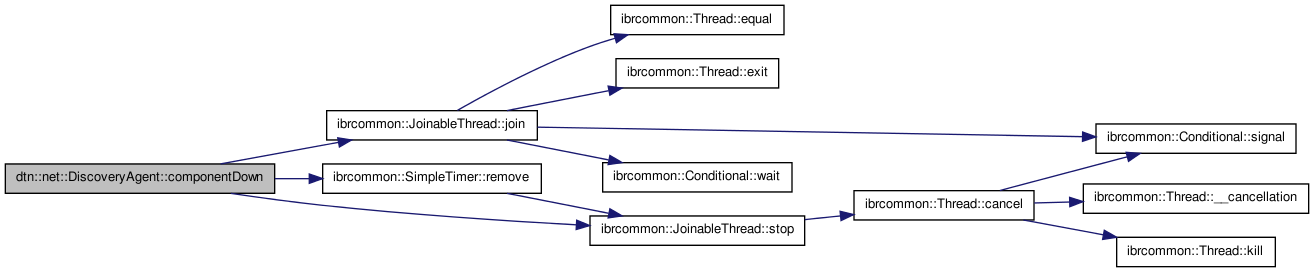

Here is the call graph for this function:

virtual void dtn::net::DiscoveryAgent::componentRun

(

)

[protected, pure virtual]

void dtn::net::DiscoveryAgent::componentUp

(

)

[protected, virtual]

Definition at line 32 of file DiscoveryAgent.cpp.

References ibrcommon::SimpleTimer::set(), and ibrcommon::JoinableThread::start().

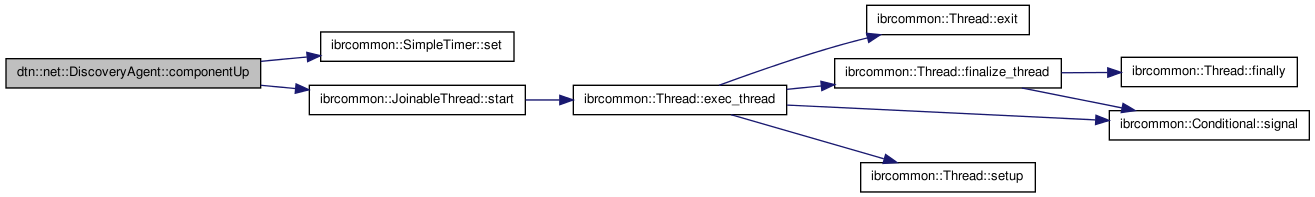

Here is the call graph for this function:

void dtn::net::DiscoveryAgent::received

(

const DiscoveryAnnouncement &

announcement

)

Definition at line 58 of file DiscoveryAgent.cpp.

References _config, dtn::net::DiscoveryAnnouncement::getEID(), dtn::net::DiscoveryService::getName(), dtn::net::DiscoveryService::getParameters(), dtn::net::DiscoveryAnnouncement::getServices(), dtn::data::EID::getString(), dtn::core::NODE_INFO_UPDATED, dtn::core::NodeEvent::raise(), dtn::core::Node::setAddress(), dtn::core::Node::setPort(), dtn::core::Node::setProtocol(), dtn::core::Node::setTimeout(), dtn::core::Node::setURI(), dtn::daemon::Configuration::Discovery::timeout(), and dtn::utils::Utils::tokenize().

Referenced by dtn::net::IPNDAgent::componentRun().

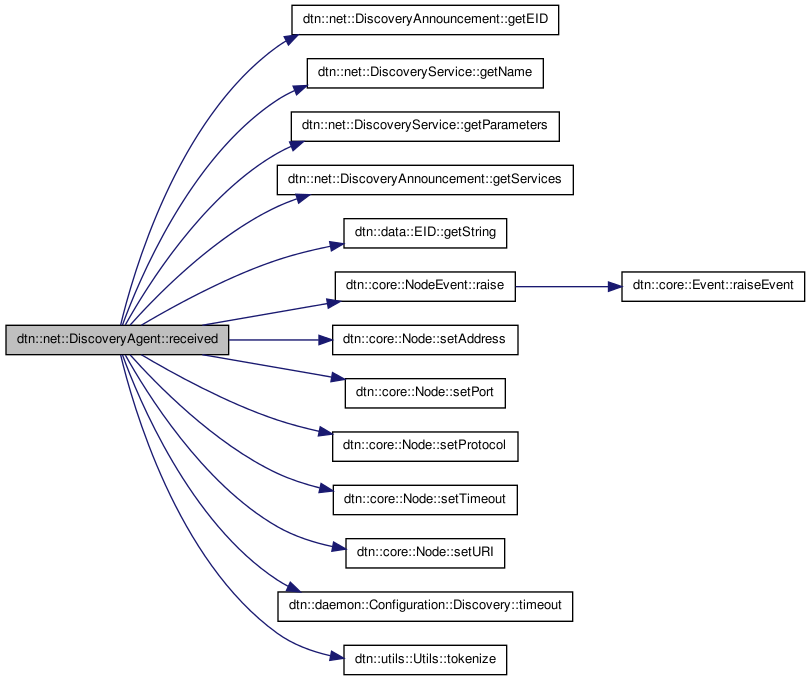

Here is the call graph for this function:

virtual void dtn::net::DiscoveryAgent::sendAnnoucement	(	const u_int16_t &	sn,
		std::list< DiscoveryService > &	services
	)			[protected, pure virtual]

Referenced by timeout().

size_t dtn::net::DiscoveryAgent::timeout

(

size_t

identifier

)

[virtual]

This method will be called if the timer timed out.

Parameters:

timer

The reference to the timer which timed out.

Returns:

The new countdown value.

Implements ibrcommon::SimpleTimerCallback.

Definition at line 120 of file DiscoveryAgent.cpp.

References _config, dtn::daemon::Configuration::Discovery::announce(), and sendAnnoucement().

Here is the call graph for this function:

---

Member Data Documentation

const dtn::daemon::Configuration::Discovery& dtn::net::DiscoveryAgent::_config [protected]

Definition at line 49 of file DiscoveryAgent.h.

Referenced by dtn::net::IPNDAgent::IPNDAgent(), received(), dtn::net::IPNDAgent::sendAnnoucement(), and timeout().

---

The documentation for this class was generated from the following files:

• daemon/src/net/DiscoveryAgent.h
• daemon/src/net/DiscoveryAgent.cpp
