IBR-DTNSuite: ibrcommon::vsocket Class Reference

#include <vsocket.h>

Inherits ibrcommon::LinkManager::EventCallback.

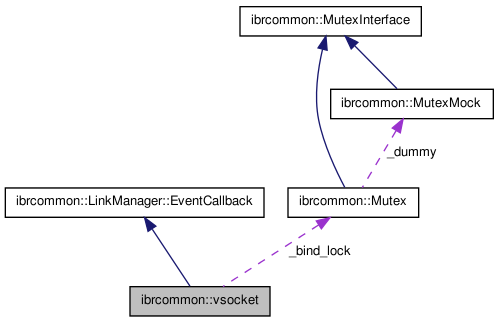

Collaboration diagram for ibrcommon::vsocket:

Collaboration graph

List of all members.

Classes
class	vbind
Public Types
enum	Option { VSOCKET_REUSEADDR = 1 << 0, VSOCKET_LINGER = 1 << 1, VSOCKET_NODELAY = 1 << 2, VSOCKET_BROADCAST = 1 << 3, VSOCKET_NONBLOCKING = 1 << 4, VSOCKET_MULTICAST = 1 << 5, VSOCKET_MULTICAST_V6 = 1 << 6 }
Public Member Functions
	vsocket ()
virtual	~vsocket ()
int	bind (const vaddress &address, const int port, unsigned int socktype=SOCK_STREAM)
void	bind (const vinterface &iface, const int port, unsigned int socktype=SOCK_STREAM)
int	bind (const int port, unsigned int socktype=SOCK_STREAM)
int	bind (const ibrcommon::File &file, unsigned int socktype=SOCK_STREAM)
void	unbind (const vaddress &address, const int port)
void	unbind (const vinterface &iface, const int port)
void	unbind (const int port)
void	unbind (const ibrcommon::File &file)
void	add (const int fd)
const std::list< int >	get (const ibrcommon::vinterface &iface, const ibrcommon::vaddress::Family f=vaddress::VADDRESS_UNSPEC)
const std::list< int >	get (const ibrcommon::vaddress::Family f=vaddress::VADDRESS_UNSPEC)
void	listen (int connections)
void	set (const Option &o)
void	unset (const Option &o)
void	close ()
void	shutdown ()
int	fd ()
void	eventInterfaceChanged (const vinterface &iface)
Friends
void	interrupt (ibrcommon::vsocket &sock, ibrcommon::Thread &th)
void	select (ibrcommon::vsocket &sock, std::list< int > &fds, struct timespec *tv)
int	sendto (ibrcommon::vsocket &sock, const void *buf, size_t n, const ibrcommon::vaddress &address, const unsigned int port)

Detailed Description

Definition at line 44 of file vsocket.h.

Member Enumeration Documentation

enum ibrcommon::vsocket::Option

Enumerator:

VSOCKET_REUSEADDR
VSOCKET_LINGER
VSOCKET_NODELAY
VSOCKET_BROADCAST
VSOCKET_NONBLOCKING
VSOCKET_MULTICAST
VSOCKET_MULTICAST_V6

Definition at line 52 of file vsocket.h.

Constructor & Destructor Documentation

ibrcommon::vsocket::vsocket ( )

Definition at line 27 of file vsocket.cpp.

ibrcommon::vsocket::~vsocket ( ) [virtual]

Definition at line 31 of file vsocket.cpp.

References ibrcommon::LinkManager::getInstance(), and ibrcommon::LinkManager::unregisterAllEvents().

Here is the call graph for this function:

Member Function Documentation

void ibrcommon::vsocket::add ( const int fd )

Definition at line 150 of file vsocket.cpp.

References bind().

Referenced by ibrcommon::NetLinkManager::run().

Here is the call graph for this function:

int ibrcommon::vsocket::bind	(	const vaddress &	address,
		const int	port,
		unsigned int	socktype = `SOCK_STREAM`
	)

Definition at line 126 of file vsocket.cpp.

Referenced by add(), bind(), ibrcommon::UnicastSocket::bind(), ibrcommon::tcpserver::bind(), close(), dtn::net::IPNDAgent::componentUp(), get(), listen(), set(), shutdown(), ibrcommon::tcpserver::tcpserver(), and unset().

void ibrcommon::vsocket::bind	(	const vinterface &	iface,
		const int	port,
		unsigned int	socktype = `SOCK_STREAM`
	)

Definition at line 69 of file vsocket.cpp.

References bind(), ibrcommon::vinterface::empty(), ibrcommon::vinterface::getAddresses(), ibrcommon::LinkManager::getInstance(), and ibrcommon::LinkManager::registerInterfaceEvent().

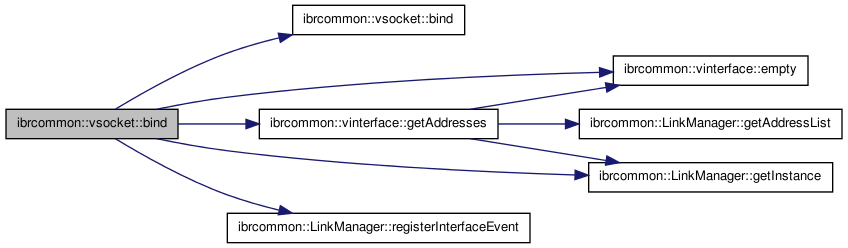

Here is the call graph for this function:

int ibrcommon::vsocket::bind	(	const ibrcommon::File &	file,
		unsigned int	socktype = `SOCK_STREAM`
	)

Definition at line 132 of file vsocket.cpp.

References bind().

Here is the call graph for this function:

int ibrcommon::vsocket::bind	(	const int	port,
		unsigned int	socktype = `SOCK_STREAM`
	)

Definition at line 114 of file vsocket.cpp.

References bind().

Here is the call graph for this function:

void ibrcommon::vsocket::close ( )

Definition at line 195 of file vsocket.cpp.

References bind().

Referenced by ibrcommon::tcpserver::close(), ibrcommon::udpsocket::shutdown(), and ibrcommon::udpsocket::~udpsocket().

Here is the call graph for this function:

void ibrcommon::vsocket::eventInterfaceChanged ( const vinterface & iface ) [virtual]

Implements ibrcommon::LinkManager::EventCallback.

Definition at line 226 of file vsocket.cpp.

References IBRCOMMON_LOGGER_DEBUG, and ibrcommon::vinterface::toString().

Here is the call graph for this function:

int ibrcommon::vsocket::fd ( )

Definition at line 220 of file vsocket.cpp.

const std::list< int > ibrcommon::vsocket::get	(	const ibrcommon::vinterface &	iface,
		const ibrcommon::vaddress::Family	f = `vaddress::VADDRESS_UNSPEC`
	)

Definition at line 231 of file vsocket.cpp.

References bind(), and ibrcommon::vaddress::VADDRESS_UNSPEC.

Referenced by dtn::net::IPNDAgent::componentUp(), and ibrcommon::udpsocket::send().

Here is the call graph for this function:

const std::list< int > ibrcommon::vsocket::get ( const ibrcommon::vaddress::Family f = vaddress::VADDRESS_UNSPEC )

Definition at line 249 of file vsocket.cpp.

References bind(), and ibrcommon::vaddress::VADDRESS_UNSPEC.

Here is the call graph for this function:

void ibrcommon::vsocket::listen ( int connections )

Definition at line 156 of file vsocket.cpp.

References bind().

Referenced by ibrcommon::tcpserver::bind(), and ibrcommon::tcpserver::listen().

Here is the call graph for this function:

void ibrcommon::vsocket::set ( const Option & o )

Definition at line 167 of file vsocket.cpp.

References bind().

Referenced by ibrcommon::tcpserver::bind(), and dtn::net::IPNDAgent::IPNDAgent().

Here is the call graph for this function:

void ibrcommon::vsocket::shutdown ( )

Definition at line 207 of file vsocket.cpp.

References bind().

Referenced by dtn::net::IPNDAgent::componentDown(), and ibrcommon::tcpserver::shutdown().

Here is the call graph for this function:

void ibrcommon::vsocket::unbind ( const int port )

Definition at line 120 of file vsocket.cpp.

References unbind().

Here is the call graph for this function:

void ibrcommon::vsocket::unbind	(	const vinterface &	iface,
		const int	port
	)

Definition at line 97 of file vsocket.cpp.

References ibrcommon::vinterface::getAddresses(), ibrcommon::LinkManager::getInstance(), unbind(), and ibrcommon::LinkManager::unregisterInterfaceEvent().

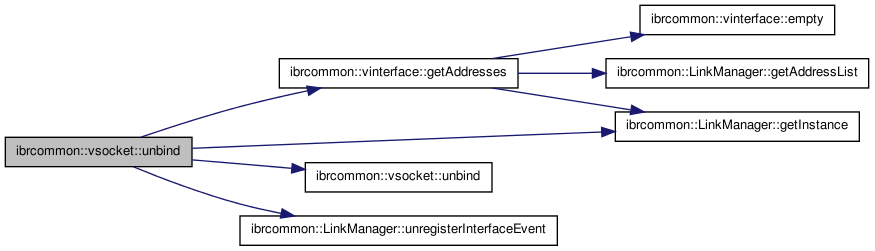

Here is the call graph for this function:

void ibrcommon::vsocket::unbind	(	const vaddress &	address,
		const int	port
	)

Definition at line 138 of file vsocket.cpp.

Referenced by unbind().

void ibrcommon::vsocket::unbind ( const ibrcommon::File & file )

Definition at line 144 of file vsocket.cpp.

References unbind().

Here is the call graph for this function:

void ibrcommon::vsocket::unset ( const Option & o )

Definition at line 181 of file vsocket.cpp.

References bind().

Here is the call graph for this function:

Friends And Related Function Documentation

void interrupt	(	ibrcommon::vsocket &	sock,
		ibrcommon::Thread &	th
	)			`[friend]`

void select	(	ibrcommon::vsocket &	sock,
		std::list< int > &	fds,
		struct timespec *	tv
	)			`[friend]`

Accept an incoming connection on a vsocket.

Parameters:

	sock
	timeout

Returns:: A socket file descriptor.

int sendto	(	ibrcommon::vsocket &	sock,
		const void *	buf,
		size_t	n,
		const ibrcommon::vaddress &	address,
		const unsigned int	port
	)			`[friend]`

The documentation for this class was generated from the following files:

ibrcommon/ibrcommon/net/vsocket.h
ibrcommon/ibrcommon/net/vsocket.cpp
