IBR-DTNSuite: ibrcommon::AES128Stream Class Reference

#include <AES128Stream.h>

Inherits ibrcommon::CipherStream.

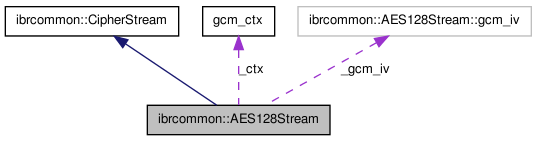

Collaboration diagram for ibrcommon::AES128Stream:

Collaboration graph

List of all members.

Classes
struct	gcm_iv
Public Member Functions
	AES128Stream (const CipherMode mode, std::ostream &output, const unsigned char key[key_size_in_bytes], const u_int32_t salt)
	AES128Stream (const CipherMode mode, std::ostream &output, const unsigned char key[key_size_in_bytes], const u_int32_t salt, const unsigned char iv[iv_len])
virtual	~AES128Stream ()
void	getIV (unsigned char(&to_iv)[iv_len]) const
void	getTag (unsigned char(&to_tag)[tag_len])
bool	verify (const unsigned char(&verify_tag)[tag_len])
Static Public Attributes
static const size_t	key_size_in_bytes = 16
static const size_t	salt_len = sizeof(u_int32_t)
static const size_t	iv_len = 8
static const size_t	tag_len = 16
static const size_t	BUFF_SIZE = 2048
Protected Member Functions
virtual void	encrypt (char *buf, const size_t size)
virtual void	decrypt (char *buf, const size_t size)

Detailed Description

Encrypts or decrypts an input stream using AES with a 128bit key using galois counter mode. In encryption mode initialisation vector and tag will be created and can be read with getIV() and getTag(). In decryption mode initialisation vector and tag have to be set at construction or via the decrypt()-Method. TODO test the gcm_iv structure on be and le systems

Definition at line 20 of file AES128Stream.h.

Constructor & Destructor Documentation

ibrcommon::AES128Stream::AES128Stream	(	const CipherMode	mode,
		std::ostream &	output,
		const unsigned char	key[key_size_in_bytes],
		const u_int32_t	salt
	)

Creates a AES128Stream object, either for encrypting or decrypting, which is controlled by mode. If this object is used for decryption iv and tag have to be set.

Parameters:

	mode	tell the constructor wether this will be used for en- or decryption
	output	the stream in which will the cipher- or plaintext be serialized into
	key	the AES128 key to use. Its size is key_size_in_bytes.
	salt	the salt, which shall be the same for all data which belongs together
	iv	if used for decryption, this is the initialisation vector, which was created at encryption. The size of this array is iv_len.
	tag	if used for decryption, this is the authentication tag, which was created at encryption. The size of this array is tag_len.

Definition at line 9 of file AES128Stream.cpp.

References gcm_init_and_key(), gcm_init_message(), IBRCOMMON_LOGGER, and iv_len.

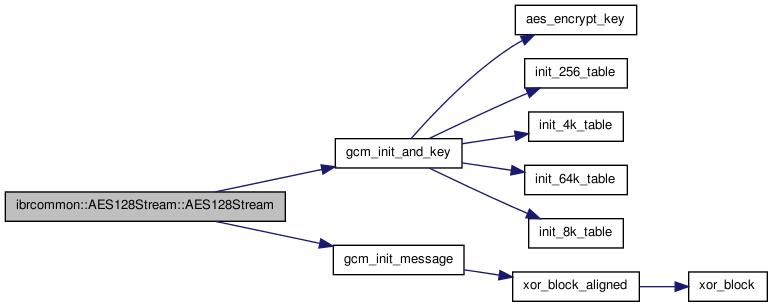

Here is the call graph for this function:

ibrcommon::AES128Stream::AES128Stream	(	const CipherMode	mode,
		std::ostream &	output,
		const unsigned char	key[key_size_in_bytes],
		const u_int32_t	salt,
		const unsigned char	iv[iv_len]
	)

Definition at line 31 of file AES128Stream.cpp.

References gcm_init_and_key(), gcm_init_message(), and IBRCOMMON_LOGGER.

Here is the call graph for this function:

ibrcommon::AES128Stream::~AES128Stream ( ) [virtual]

cleans the output buffer and the context

Definition at line 52 of file AES128Stream.cpp.

References gcm_end().

Here is the call graph for this function:

Member Function Documentation

void ibrcommon::AES128Stream::decrypt	(	char *	buf,
		const size_t	size
	)			`[protected, virtual]`

Implements ibrcommon::CipherStream.

Definition at line 90 of file AES128Stream.cpp.

References gcm_decrypt().

Here is the call graph for this function:

void ibrcommon::AES128Stream::encrypt	(	char *	buf,
		const size_t	size
	)			`[protected, virtual]`

Implements ibrcommon::CipherStream.

Definition at line 85 of file AES128Stream.cpp.

References gcm_encrypt().

Here is the call graph for this function:

void ibrcommon::AES128Stream::getIV ( unsigned char(&) to_iv[iv_len] ) const

Write the initialisation vector into an array, with length iv_len.

Parameters:

to_iv

the array in which the vector will be written into

Definition at line 58 of file AES128Stream.cpp.

Referenced by dtn::security::PayloadConfidentialBlock::encrypt(), and dtn::security::SecurityBlock::encryptBlock().

void ibrcommon::AES128Stream::getTag ( unsigned char(&) to_tag[tag_len] )

Write the authentication tag into an array, with length tag_len.

Parameters:

to_tag

the array in which the tag will be written into

Definition at line 64 of file AES128Stream.cpp.

References gcm_compute_tag(), and RETURN_OK.

Referenced by dtn::security::PayloadConfidentialBlock::encrypt(), dtn::security::SecurityBlock::encryptBlock(), and verify().

Here is the call graph for this function:

bool ibrcommon::AES128Stream::verify ( const unsigned char(&) verify_tag[tag_len] )

compares the given tag with the tag of the last en-/decryption

Definition at line 72 of file AES128Stream.cpp.

References getTag().

Referenced by dtn::security::SecurityBlock::decryptBlock(), and dtn::security::PayloadConfidentialBlock::decryptPayload().

Here is the call graph for this function:

Member Data Documentation

const size_t ibrcommon::AES128Stream::BUFF_SIZE = 2048 [static]

the size of the buffer in which the data will be streamed

Definition at line 32 of file AES128Stream.h.

const size_t ibrcommon::AES128Stream::iv_len = 8 [static]

the number of bytes of the initialisation vector

Definition at line 28 of file AES128Stream.h.

Referenced by AES128Stream(), dtn::security::SecurityBlock::decryptBlock(), dtn::security::PayloadConfidentialBlock::decryptPayload(), dtn::security::PayloadConfidentialBlock::encrypt(), and dtn::security::SecurityBlock::encryptBlock().

const size_t ibrcommon::AES128Stream::key_size_in_bytes = 16 [static]

the number of bytes of 128 bit

Definition at line 24 of file AES128Stream.h.

Referenced by dtn::security::PayloadConfidentialBlock::decrypt(), dtn::security::ExtensionSecurityBlock::decrypt(), dtn::security::PayloadConfidentialBlock::encrypt(), and dtn::security::ExtensionSecurityBlock::encrypt().

const size_t ibrcommon::AES128Stream::salt_len = sizeof(u_int32_t) [static]

the number of bytes of the salt

Definition at line 26 of file AES128Stream.h.

const size_t ibrcommon::AES128Stream::tag_len = 16 [static]

the number of bytes of the verification tag

Definition at line 30 of file AES128Stream.h.

Referenced by dtn::security::SecurityBlock::decryptBlock(), dtn::security::PayloadConfidentialBlock::decryptPayload(), dtn::security::PayloadConfidentialBlock::encrypt(), and dtn::security::SecurityBlock::encryptBlock().

The documentation for this class was generated from the following files:

ibrcommon/ibrcommon/ssl/AES128Stream.h
ibrcommon/ibrcommon/ssl/AES128Stream.cpp
