dtn::net::UDPConvergenceLayer Class Reference

#include <UDPConvergenceLayer.h>

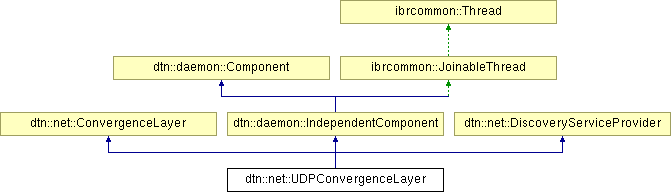

Inheritance diagram for dtn::net::UDPConvergenceLayer:

List of all members.

Public Member Functions
	UDPConvergenceLayer (ibrcommon::NetInterface net, int port, bool broadcast=false, unsigned int mtu=1280)
virtual	~UDPConvergenceLayer ()
virtual void	update (std::string &name, std::string &data)
virtual bool	onInterface (const ibrcommon::NetInterface &net) const
dtn::core::Node::Protocol	getDiscoveryProtocol () const
void	queue (const dtn::core::Node &n, const ConvergenceLayer::Job &job)
UDPConvergenceLayer &	operator>> (dtn::data::Bundle &)
Protected Member Functions
virtual void	componentUp ()
virtual void	componentRun ()
virtual void	componentDown ()

---

Detailed Description

This class implement a ConvergenceLayer for UDP/IP. Each bundle is sent in exact one UDP datagram.

Definition at line 22 of file UDPConvergenceLayer.h.

---

Constructor & Destructor Documentation

dtn::net::UDPConvergenceLayer::UDPConvergenceLayer	(	ibrcommon::NetInterface	net,
		int	port,
		bool	broadcast = false,
		unsigned int	mtu = 1280
	)

Constructor

Parameters:

[in]	bind_addr	The address to bind.
[in]	port	The udp port to use.
[in]	broadcast	If true, the broadcast feature for this socket is enabled.
[in]	mtu	The maximum bundle size.

Definition at line 42 of file UDPConvergenceLayer.cpp.

dtn::net::UDPConvergenceLayer::~UDPConvergenceLayer

(

)

[virtual]

Desktruktor

Definition at line 55 of file UDPConvergenceLayer.cpp.

References componentDown(), and dtn::daemon::IndependentComponent::isRunning().

---

Member Function Documentation

void dtn::net::UDPConvergenceLayer::componentDown

(

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 203 of file UDPConvergenceLayer.cpp.

References ibrcommon::JoinableThread::join(), and ibrcommon::udpsocket::shutdown().

Referenced by ~UDPConvergenceLayer().

void dtn::net::UDPConvergenceLayer::componentRun

(

void

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 210 of file UDPConvergenceLayer.cpp.

References IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, dtn::net::BundleReceivedEvent::raise(), ibrcommon::Exception::what(), and ibrcommon::Thread::yield().

void dtn::net::UDPConvergenceLayer::componentUp

(

)

[protected, virtual]

Implements dtn::daemon::IndependentComponent.

Definition at line 180 of file UDPConvergenceLayer.cpp.

References ibrcommon::BroadcastSocket::bind(), ibrcommon::UnicastSocket::bind(), ibrcommon::NetInterface::getAddress(), IBRCOMMON_LOGGER, IBRCOMMON_LOGGER_ENDL, and ibrcommon::Exception::what().

dtn::core::Node::Protocol dtn::net::UDPConvergenceLayer::getDiscoveryProtocol

(

)

const [virtual]

Implements dtn::net::ConvergenceLayer.

Definition at line 65 of file UDPConvergenceLayer.cpp.

References dtn::core::Node::CONN_UDPIP.

bool dtn::net::UDPConvergenceLayer::onInterface

(

const ibrcommon::NetInterface &

net

)

const [virtual]

Reimplemented from dtn::net::DiscoveryServiceProvider.

Definition at line 78 of file UDPConvergenceLayer.cpp.

References ibrcommon::NetInterface::getInterface().

UDPConvergenceLayer & dtn::net::UDPConvergenceLayer::operator>>

(

dtn::data::Bundle &

bundle

)

Definition at line 158 of file UDPConvergenceLayer.cpp.

References dtn::core::BundleCore::getInstance(), and ibrcommon::udpsocket::receive().

void dtn::net::UDPConvergenceLayer::queue	(	const dtn::core::Node &	n,
		const ConvergenceLayer::Job &	job
	)			[virtual]

Implements dtn::net::ConvergenceLayer.

Definition at line 84 of file UDPConvergenceLayer.cpp.

References dtn::net::ConvergenceLayer::Job::_bundle, dtn::net::ConvergenceLayer::Job::_destination, dtn::core::BUNDLE_FORWARDED, dtn::core::Node::getAddress(), dtn::data::DefaultSerializer::getLength(), ibrcommon::udpsocket::getPeer(), dtn::core::Node::getPort(), dtn::core::BundleEvent::raise(), dtn::net::TransferCompletedEvent::raise(), dtn::routing::RequeueBundleEvent::raise(), and ibrcommon::udpsocket::peer::send().

void dtn::net::UDPConvergenceLayer::update	(	std::string &	name,
		std::string &	data
	)			[virtual]

Updates an discovery service block with current values

Parameters:

	name
	data

Implements dtn::net::DiscoveryServiceProvider.

Definition at line 70 of file UDPConvergenceLayer.cpp.

References ibrcommon::NetInterface::getAddress().

---

The documentation for this class was generated from the following files:

• daemon/src/net/UDPConvergenceLayer.h
• daemon/src/net/UDPConvergenceLayer.cpp
