dtn::data::SecurityBlock Class Reference

#include <SecurityBlock.h>

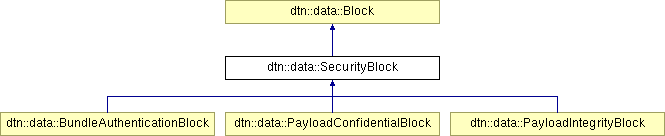

Inheritance diagram for dtn::data::SecurityBlock:

List of all members.

Public Types
enum	BLOCK_TYPES { BUNDLE_AUTHENTICATION_BLOCK = 0x02, PAYLOAD_INTEGRITY_BLOCK = 0x03, PAYLOAD_CONFIDENTIAL_BLOCK = 0x04, EXTENSION_SECURITY_BLOCK = 0x09 }
enum	CIPHERSUITE_FLAGS {   CONTAINS_SECURITY_RESULT = 1 << 0, CONTAINS_CORRELATOR = 1 << 1, CONTAINS_CIPHERSUITE_PARAMS = 1 << 2, CONTINAS_SECURITY_DESTINATION = 1 << 3,   CONTINAS_SECURITY_SOURCE = 1 << 4, BIT5_RESERVED = 1 << 5, BIT6_RESERVED = 1 << 6 }
Public Member Functions
virtual	~SecurityBlock ()=0
virtual std::list< dtn::data::EID >	getEIDList () const
Protected Member Functions
	SecurityBlock (SecurityBlock::BLOCK_TYPES type)
	SecurityBlock (SecurityBlock::BLOCK_TYPES type, ibrcommon::BLOB::Reference ref)
virtual void	read ()
virtual void	commit ()
Protected Attributes
dtn::data::EID	_security_source
dtn::data::EID	_security_destination
dtn::data::SDNV	_ciphersuite_id
dtn::data::SDNV	_ciphersuite_flags
dtn::data::SDNV	_correlator
dtn::data::BundleString	_ciphersuite_params
dtn::data::BundleString	_security_result

---

Detailed Description

Definition at line 22 of file SecurityBlock.h.

---

Member Enumeration Documentation

enum dtn::data::SecurityBlock::BLOCK_TYPES

Enumerator:

BUNDLE_AUTHENTICATION_BLOCK
PAYLOAD_INTEGRITY_BLOCK
PAYLOAD_CONFIDENTIAL_BLOCK
EXTENSION_SECURITY_BLOCK

Definition at line 25 of file SecurityBlock.h.

enum dtn::data::SecurityBlock::CIPHERSUITE_FLAGS

Enumerator:

CONTAINS_SECURITY_RESULT
CONTAINS_CORRELATOR
CONTAINS_CIPHERSUITE_PARAMS
CONTINAS_SECURITY_DESTINATION
CONTINAS_SECURITY_SOURCE
BIT5_RESERVED
BIT6_RESERVED

Definition at line 33 of file SecurityBlock.h.

---

Constructor & Destructor Documentation

dtn::data::SecurityBlock::~SecurityBlock

(

)

[pure virtual]

Definition at line 27 of file SecurityBlock.cpp.

dtn::data::SecurityBlock::SecurityBlock

(

SecurityBlock::BLOCK_TYPES

type

)

[protected]

Definition at line 15 of file SecurityBlock.cpp.

dtn::data::SecurityBlock::SecurityBlock	(	SecurityBlock::BLOCK_TYPES	type,
		ibrcommon::BLOB::Reference	ref
	)			[protected]

Definition at line 21 of file SecurityBlock.cpp.

---

Member Function Documentation

list< EID > dtn::data::SecurityBlock::getEIDList

(

)

const [virtual]

Reimplemented from dtn::data::Block.

Definition at line 31 of file SecurityBlock.cpp.

References _ciphersuite_flags, _security_destination, _security_source, CONTINAS_SECURITY_DESTINATION, and CONTINAS_SECURITY_SOURCE.

void dtn::data::SecurityBlock::read

(

)

[protected, virtual]

Definition at line 44 of file SecurityBlock.cpp.

void dtn::data::SecurityBlock::commit

(

)

[protected, virtual]

Definition at line 62 of file SecurityBlock.cpp.

---

Member Data Documentation

dtn::data::EID dtn::data::SecurityBlock::_security_source [protected]

Definition at line 55 of file SecurityBlock.h.

Referenced by getEIDList().

dtn::data::EID dtn::data::SecurityBlock::_security_destination [protected]

Definition at line 56 of file SecurityBlock.h.

Referenced by getEIDList().

dtn::data::SDNV dtn::data::SecurityBlock::_ciphersuite_id [protected]

Definition at line 58 of file SecurityBlock.h.

dtn::data::SDNV dtn::data::SecurityBlock::_ciphersuite_flags [protected]

Definition at line 59 of file SecurityBlock.h.

Referenced by getEIDList().

dtn::data::SDNV dtn::data::SecurityBlock::_correlator [protected]

Definition at line 60 of file SecurityBlock.h.

dtn::data::BundleString dtn::data::SecurityBlock::_ciphersuite_params [protected]

Definition at line 62 of file SecurityBlock.h.

dtn::data::BundleString dtn::data::SecurityBlock::_security_result [protected]

Definition at line 63 of file SecurityBlock.h.

---

The documentation for this class was generated from the following files:

• ibrdtn/ibrdtn/data/SecurityBlock.h
• ibrdtn/ibrdtn/data/SecurityBlock.cpp
