ibrcommon::lowpansocket Class Reference

#include <lowpansocket.h>

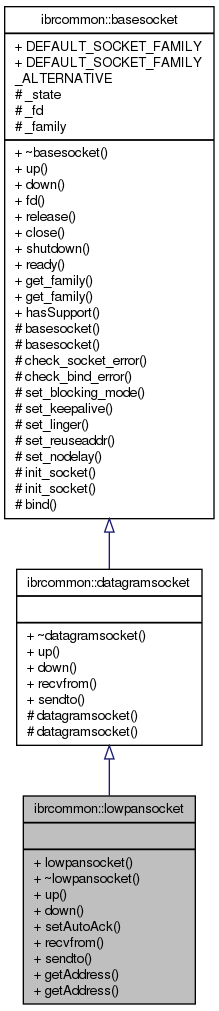

Inheritance diagram for ibrcommon::lowpansocket:
Inheritance graph
Collaboration diagram for ibrcommon::lowpansocket:
Collaboration graph

Public Member Functions

 lowpansocket (const uint16_t &panid, const vinterface &iface)

 ~lowpansocket ()

void up () throw (socket_exception)

void down () throw (socket_exception)

void setAutoAck (bool enable) throw (socket_exception)

virtual ssize_t recvfrom (char *buf, size_t buflen, int flags, ibrcommon::vaddress &addr) throw (socket_exception)

virtual void sendto (const char *buf, size_t buflen, int flags, const ibrcommon::vaddress &addr) throw (socket_exception)

- Public Member Functions inherited from ibrcommon::datagramsocket
virtual ~datagramsocket ()=0

- Public Member Functions inherited from ibrcommon::basesocket
virtual ~basesocket ()=0

virtual int fd () const throw (socket_exception)

virtual int release () throw (socket_exception)

void close () throw (socket_exception)

void shutdown (int how) throw (socket_exception)

bool ready () const

sa_family_t get_family () const throw (socket_exception)


Static Public Member Functions

static void getAddress (const vinterface &iface, const std::string &panid, ibrcommon::vaddress &addr)

static void getAddress (struct ieee802154_addr *ret, const vinterface &iface)


Additional Inherited Members

- Static Public Attributes inherited from ibrcommon::basesocket
static int DEFAULT_SOCKET_FAMILY = AF_INET6

static int DEFAULT_SOCKET_FAMILY_ALTERNATIVE = AF_INET

- Protected Types inherited from ibrcommon::basesocket
enum  socketstate { SOCKET_DOWN, SOCKET_UP, SOCKET_UNMANAGED, SOCKET_DESTROYED }

- Protected Member Functions inherited from ibrcommon::datagramsocket
 datagramsocket ()

 datagramsocket (int fd)

- Protected Attributes inherited from ibrcommon::basesocket
socketstate _state

int _fd

sa_family_t _family


Detailed Description

Definition at line 35 of file lowpansocket.h.

Constructor & Destructor Documentation

ibrcommon::lowpansocket::lowpansocket ( const uint16_t &  panid,
const vinterface &  iface
)

Definition at line 50 of file lowpansocket.cpp.

ibrcommon::lowpansocket::~lowpansocket ( )

Definition at line 55 of file lowpansocket.cpp.

Member Function Documentation

void ibrcommon::lowpansocket::down ( )
throw (socket_exception
)
virtual

Close and destroy the file descriptor of this socket assignment.

Exceptions
socket_exceptionif the action has failed

Implements ibrcommon::datagramsocket.

Definition at line 86 of file lowpansocket.cpp.

References ibrcommon::basesocket::_state, ibrcommon::basesocket::close(), ibrcommon::basesocket::SOCKET_DESTROYED, and ibrcommon::basesocket::SOCKET_DOWN.

Here is the call graph for this function:

void ibrcommon::lowpansocket::getAddress ( const vinterface &  iface,
const std::string &  panid,
ibrcommon::vaddress &  addr
)
static

Definition at line 150 of file lowpansocket.cpp.

References sockaddr_ieee802154::addr, ieee802154_addr::addr_type, sockaddr_ieee802154::family, IEEE802154_ADDR_SHORT, ieee802154_addr::pan_id, and ieee802154_addr::short_addr.

Referenced by dtn::net::LOWPANDatagramService::getServiceDescription(), dtn::net::LOWPANConvergenceLayer::onUpdateBeacon(), and up().

void ibrcommon::lowpansocket::getAddress ( struct ieee802154_addr *  ret,
const vinterface &  iface
)
static

Definition at line 163 of file lowpansocket.cpp.

References ieee802154_addr::addr_type, IEEE802154_ADDR_SHORT, IEEE802154_ATTR_DEV_NAME, IEEE802154_ATTR_MAX, IEEE802154_ATTR_PAN_ID, IEEE802154_ATTR_SHORT_ADDR, IEEE802154_LIST_IFACE, ieee802154_policy, ieee802154_addr::pan_id, ieee802154_addr::short_addr, and ibrcommon::vinterface::toString().

Here is the call graph for this function:

ssize_t ibrcommon::lowpansocket::recvfrom ( char *  buf,
size_t  buflen,
int  flags,
ibrcommon::vaddress &  addr
)
throw (socket_exception
)
virtual

Reimplemented from ibrcommon::datagramsocket.

Definition at line 102 of file lowpansocket.cpp.

References sockaddr_ieee802154::addr, ieee802154_addr::pan_id, and ieee802154_addr::short_addr.

Referenced by dtn::net::LOWPANConvergenceLayer::componentRun(), and dtn::net::LOWPANDatagramService::recvfrom().

void ibrcommon::lowpansocket::sendto ( const char *  buf,
size_t  buflen,
int  flags,
const ibrcommon::vaddress &  addr
)
throw (socket_exception
)
virtual

Reimplemented from ibrcommon::datagramsocket.

Definition at line 125 of file lowpansocket.cpp.

References sockaddr_ieee802154::addr, ieee802154_addr::addr_type, AF_IEEE802154, bzero, sockaddr_ieee802154::family, IEEE802154_ADDR_SHORT, ieee802154_addr::pan_id, and ieee802154_addr::short_addr.

Referenced by dtn::net::LOWPANDatagramService::send(), and dtn::net::LOWPANConvergenceLayer::send_cb().

void ibrcommon::lowpansocket::setAutoAck ( bool  enable)
throw (socket_exception
)

If set to true, the auto-ack request is set on each message

Definition at line 94 of file lowpansocket.cpp.

References SOL_IEEE802154, and WPAN_WANTACK.

Referenced by dtn::net::LOWPANDatagramService::send(), and dtn::net::LOWPANConvergenceLayer::send_cb().

void ibrcommon::lowpansocket::up ( )
throw (socket_exception
)
virtual

Create the file descriptor for this socket and bind to the interface if necessary.

Exceptions
socket_exceptionif the action has failed

Implements ibrcommon::datagramsocket.

Definition at line 60 of file lowpansocket.cpp.

References ibrcommon::basesocket::_fd, ibrcommon::basesocket::_state, sockaddr_ieee802154::addr, ieee802154_addr::addr_type, AF_IEEE802154, ibrcommon::basesocket::bind(), bzero, sockaddr_ieee802154::family, getAddress(), IEEE802154_ADDR_SHORT, ibrcommon::basesocket::init_socket(), ieee802154_addr::pan_id, PF_IEEE802154, ibrcommon::basesocket::SOCKET_DOWN, and ibrcommon::basesocket::SOCKET_UP.

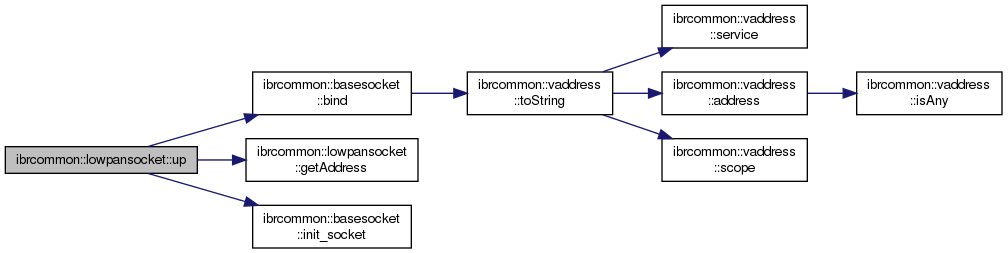

Here is the call graph for this function:

The documentation for this class was generated from the following files:
