dtn::routing::ProphetRoutingExtension::GTMX_Strategy Class Reference

The GTMX forwarding strategy. Using this strategy, packets are forwarding, if the neighbor has a higher predictability then the destination, but at most NF_max times. More...

#include <ProphetRoutingExtension.h>

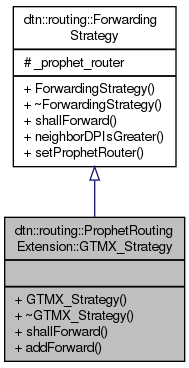

Inheritance diagram for dtn::routing::ProphetRoutingExtension::GTMX_Strategy:

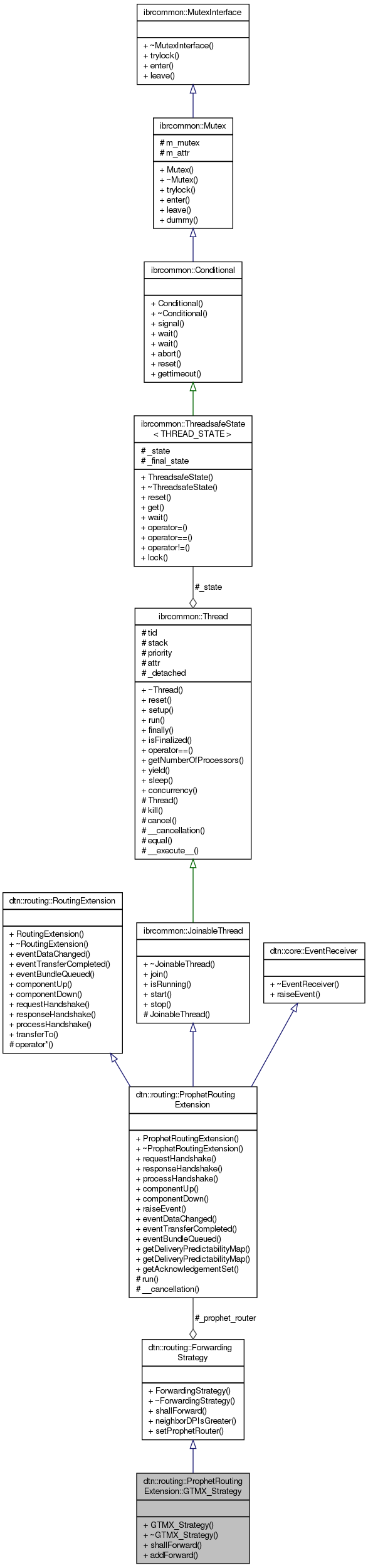

Collaboration diagram for dtn::routing::ProphetRoutingExtension::GTMX_Strategy:

Public Member Functions
	GTMX_Strategy (unsigned int NF_max)
virtual	~GTMX_Strategy ()
virtual bool	shallForward (const DeliveryPredictabilityMap &neighbor_dpm, const dtn::data::MetaBundle &bundle) const
void	addForward (const dtn::data::BundleID &id)
Public Member Functions inherited from dtn::routing::ForwardingStrategy
	ForwardingStrategy ()
virtual	~ForwardingStrategy ()=0
bool	neighborDPIsGreater (const DeliveryPredictabilityMap &neighbor_dpm, const dtn::data::EID &destination) const
void	setProphetRouter (ProphetRoutingExtension *router)

Additional Inherited Members
Protected Attributes inherited from dtn::routing::ForwardingStrategy
ProphetRoutingExtension *	_prophet_router

Detailed Description

The GTMX forwarding strategy. Using this strategy, packets are forwarding, if the neighbor has a higher predictability then the destination, but at most NF_max times.

Definition at line 185 of file ProphetRoutingExtension.h.

Constructor & Destructor Documentation

dtn::routing::ProphetRoutingExtension::GTMX_Strategy::GTMX_Strategy ( unsigned int  NF_max)

explicit

Definition at line 648 of file ProphetRoutingExtension.cpp.

dtn::routing::ProphetRoutingExtension::GTMX_Strategy::~GTMX_Strategy ( )

virtual

Definition at line 653 of file ProphetRoutingExtension.cpp.

Member Function Documentation

void dtn::routing::ProphetRoutingExtension::GTMX_Strategy::addForward

(

const dtn::data::BundleID &

id)

Definition at line 657 of file ProphetRoutingExtension.cpp.

Referenced by dtn::routing::ProphetRoutingExtension::eventTransferCompleted().

bool dtn::routing::ProphetRoutingExtension::GTMX_Strategy::shallForward ( const DeliveryPredictabilityMap &  neighbor_dpm, const dtn::data::MetaBundle &  bundle  ) const

virtual

The prophetRoutingExtension calls this function for every bundle that can be forwarded to a neighbor and forwards it depending on the return value.

Parameters

neighbor	the neighbor to forward to
bundle	the bundle that can be forwarded
prophet_router	Reference to the ProphetRoutingExtension to access its parameters

Returns

true if the bundle should be forwarded

Implements dtn::routing::ForwardingStrategy.

Definition at line 668 of file ProphetRoutingExtension.cpp.

References dtn::data::MetaBundle::destination.

---

The documentation for this class was generated from the following files:

• daemon/src/routing/prophet/ProphetRoutingExtension.h
• daemon/src/routing/prophet/ProphetRoutingExtension.cpp
