dtn::routing::NodeHandshakeEvent Class Reference

#include <NodeHandshakeEvent.h>

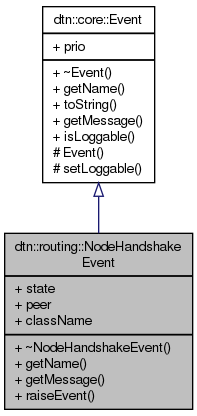

Inheritance diagram for dtn::routing::NodeHandshakeEvent:
Inheritance graph

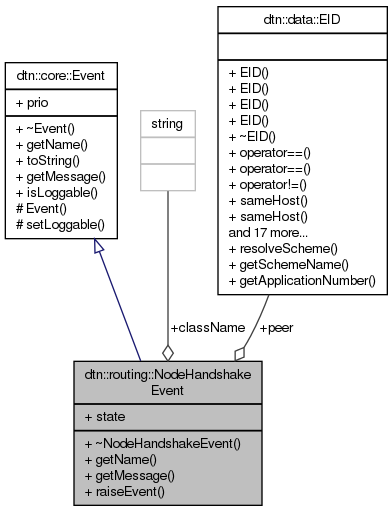

Collaboration diagram for dtn::routing::NodeHandshakeEvent:
Collaboration graph

Public Types

enum  HANDSHAKE_STATE { HANDSHAKE_REPLIED = 1, HANDSHAKE_COMPLETED = 2, HANDSHAKE_UPDATED = 3 }


Public Member Functions

virtual ~NodeHandshakeEvent ()

const std::string getName () const

std::string getMessage () const

- Public Member Functions inherited from dtn::core::Event
virtual ~Event ()=0

virtual std::string toString () const

bool isLoggable () const


Static Public Member Functions

static void raiseEvent (HANDSHAKE_STATE state, const dtn::data::EID &peer)


Public Attributes

HANDSHAKE_STATE state

dtn::data::EID peer

- Public Attributes inherited from dtn::core::Event
const int prio


Static Public Attributes

static const string className = "NodeHandshakeEvent"


Additional Inherited Members

- Protected Member Functions inherited from dtn::core::Event
 Event (int prio=0)

void setLoggable (bool val)


Detailed Description

Definition at line 32 of file NodeHandshakeEvent.h.

Member Enumeration Documentation

enum dtn::routing::NodeHandshakeEvent::HANDSHAKE_STATE
Enumerator
HANDSHAKE_REPLIED
HANDSHAKE_COMPLETED
HANDSHAKE_UPDATED

Definition at line 35 of file NodeHandshakeEvent.h.

Constructor & Destructor Documentation

dtn::routing::NodeHandshakeEvent::~NodeHandshakeEvent ( )
virtual

Definition at line 34 of file NodeHandshakeEvent.cpp.

Member Function Documentation

std::string dtn::routing::NodeHandshakeEvent::getMessage ( ) const
virtual

Get a describing message for this event

Implements dtn::core::Event.

Definition at line 43 of file NodeHandshakeEvent.cpp.

References dtn::data::EID::getString(), HANDSHAKE_COMPLETED, HANDSHAKE_REPLIED, HANDSHAKE_UPDATED, peer, and state.

Here is the call graph for this function:

const std::string dtn::routing::NodeHandshakeEvent::getName ( ) const
virtual

Get the name of this event.

Implements dtn::core::Event.

Definition at line 38 of file NodeHandshakeEvent.cpp.

References className.

void dtn::routing::NodeHandshakeEvent::raiseEvent ( HANDSHAKE_STATE  state,
const dtn::data::EID &  peer
)
static

Definition at line 61 of file NodeHandshakeEvent.cpp.

References dtn::core::EventDispatcher< E >::queue().

Referenced by dtn::routing::NodeHandshakeExtension::processHandshake().

Here is the call graph for this function:

Member Data Documentation

const string dtn::routing::NodeHandshakeEvent::className = "NodeHandshakeEvent"
static

Definition at line 53 of file NodeHandshakeEvent.h.

Referenced by getName().

dtn::data::EID dtn::routing::NodeHandshakeEvent::peer

Definition at line 51 of file NodeHandshakeEvent.h.

Referenced by getMessage(), dtn::routing::EpidemicRoutingExtension::raiseEvent(), and dtn::routing::ProphetRoutingExtension::raiseEvent().

HANDSHAKE_STATE dtn::routing::NodeHandshakeEvent::state

Definition at line 50 of file NodeHandshakeEvent.h.

Referenced by getMessage(), dtn::routing::EpidemicRoutingExtension::raiseEvent(), and dtn::routing::ProphetRoutingExtension::raiseEvent().

The documentation for this class was generated from the following files:
