#include <EMailConvergenceLayer.h>

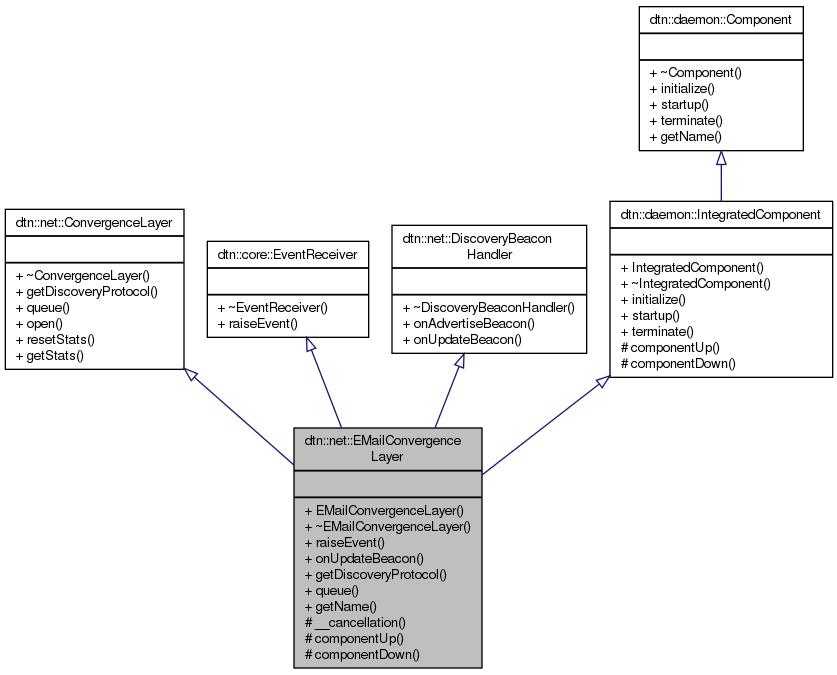

Inheritance diagram for dtn::net::EMailConvergenceLayer:

Collaboration diagram for dtn::net::EMailConvergenceLayer:

Public Member Functions
	EMailConvergenceLayer ()

virtual	~EMailConvergenceLayer ()

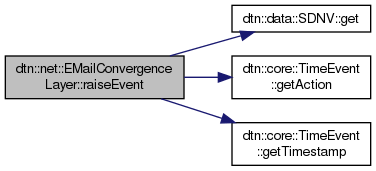

void	raiseEvent (const dtn::core::Event *event) throw ()

void	onUpdateBeacon (const ibrcommon::vinterface &iface, DiscoveryBeacon &beacon) throw (DiscoveryBeaconHandler::NoServiceHereException)

dtn::core::Node::Protocol	getDiscoveryProtocol () const

void	queue (const dtn::core::Node &node, const dtn::net::BundleTransfer &job)

virtual const std::string	getName () const

Public Member Functions inherited from dtn::net::ConvergenceLayer
virtual	~ConvergenceLayer ()=0

virtual void	open (const dtn::core::Node &)

virtual void	resetStats ()

virtual void	getStats (ConvergenceLayer::stats_data &data) const

Public Member Functions inherited from dtn::core::EventReceiver
virtual	~EventReceiver ()=0

Public Member Functions inherited from dtn::net::DiscoveryBeaconHandler
virtual	~DiscoveryBeaconHandler ()=0

virtual void	onAdvertiseBeacon (const ibrcommon::vinterface &iface, const DiscoveryBeacon &beacon) throw ()

Public Member Functions inherited from dtn::daemon::IntegratedComponent
	IntegratedComponent ()

virtual	~IntegratedComponent ()

virtual void	initialize () throw ()

virtual void	startup () throw ()

virtual void	terminate () throw ()

Public Member Functions inherited from dtn::daemon::Component
virtual	~Component ()=0

Protected Member Functions
void	__cancellation () throw ()

void	componentUp () throw ()

void	componentDown () throw ()

Additional Inherited Members
Public Types inherited from dtn::net::ConvergenceLayer
typedef std::pair< string, string >	stats_pair

typedef std::map< string, string >	stats_data

Detailed Description

Definition at line 38 of file EMailConvergenceLayer.h.

Constructor & Destructor Documentation

dtn::net::EMailConvergenceLayer::EMailConvergenceLayer ( )

Creates a new instance of the email convergence layer

Definition at line 36 of file EMailConvergenceLayer.cpp.

References dtn::core::EventDispatcher< E >::add().

Here is the call graph for this function:

dtn::net::EMailConvergenceLayer::~EMailConvergenceLayer ( )

virtual

Default destructor

Definition at line 46 of file EMailConvergenceLayer.cpp.

References dtn::core::EventDispatcher< E >::remove().

Here is the call graph for this function:

Member Function Documentation

void dtn::net::EMailConvergenceLayer::__cancellation	(	)
throw	(
	)

protected

Definition at line 121 of file EMailConvergenceLayer.cpp.

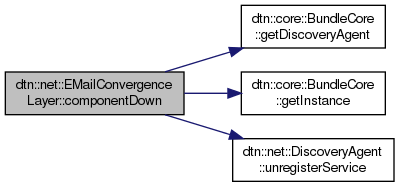

void dtn::net::EMailConvergenceLayer::componentDown	(	)
throw	(
	)

protectedvirtual

Implements dtn::daemon::IntegratedComponent.

Definition at line 129 of file EMailConvergenceLayer.cpp.

References dtn::core::BundleCore::getDiscoveryAgent(), dtn::core::BundleCore::getInstance(), and dtn::net::DiscoveryAgent::unregisterService().

Here is the call graph for this function:

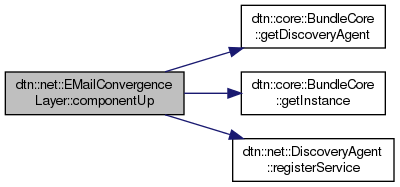

void dtn::net::EMailConvergenceLayer::componentUp	(	)
throw	(
	)

protectedvirtual

Implements dtn::daemon::IntegratedComponent.

Definition at line 123 of file EMailConvergenceLayer.cpp.

References dtn::core::BundleCore::getDiscoveryAgent(), dtn::core::BundleCore::getInstance(), and dtn::net::DiscoveryAgent::registerService().

Here is the call graph for this function:

dtn::core::Node::Protocol dtn::net::EMailConvergenceLayer::getDiscoveryProtocol ( ) const

virtual

Returns the discovery protocol type:

"dtn::core::Node::CONN_EMAIL"

Returns: Returns the protocol type

Implements dtn::net::ConvergenceLayer.

Definition at line 81 of file EMailConvergenceLayer.cpp.

References dtn::core::Node::CONN_EMAIL.

const std::string dtn::net::EMailConvergenceLayer::getName ( ) const

virtual

See Also: Component::getName()

Implements dtn::daemon::Component.

Definition at line 116 of file EMailConvergenceLayer.cpp.

void dtn::net::EMailConvergenceLayer::onUpdateBeacon	(	const ibrcommon::vinterface &	iface,
		DiscoveryBeacon &	beacon
	)
throw	(	DiscoveryBeaconHandler::NoServiceHereException
	)

virtual

This method updates the given values for discovery service. It publishes the email address of the EMail Convergence Layer

Reimplemented from dtn::net::DiscoveryBeaconHandler.

Definition at line 75 of file EMailConvergenceLayer.cpp.

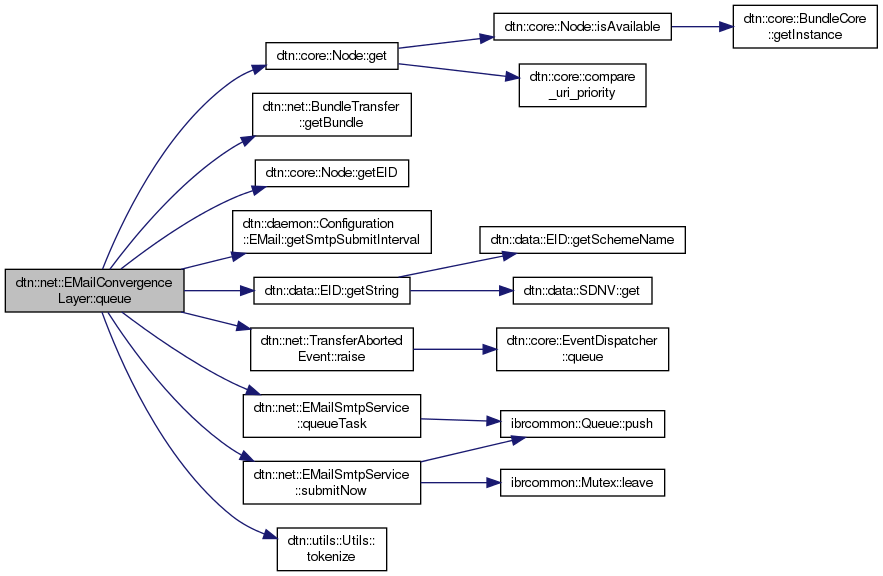

void dtn::net::EMailConvergenceLayer::queue	(	const dtn::core::Node &	node,
		const dtn::net::BundleTransfer &	job
	)

virtual

Function for sending a bundle to the given node. If submitting in intervals is enabled, the job will be stored in a queue and will be processed later. Otherwise the bundle will be send without delay. After a successful transmission the job will be stored in a second queue which will be used to map returning mails to the right job.

Parameters
