dtn::net::ConnectionEvent Class Reference

#include <ConnectionEvent.h>

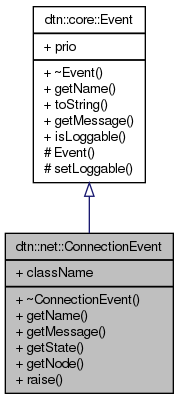

Inheritance diagram for dtn::net::ConnectionEvent:

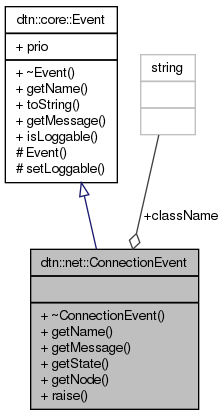

Collaboration diagram for dtn::net::ConnectionEvent:

Public Types
enum	State { CONNECTION_SETUP = 0, CONNECTION_UP = 1, CONNECTION_DOWN = 2, CONNECTION_TIMEOUT = 3 }

Public Member Functions
virtual	~ConnectionEvent ()
const string	getName () const
std::string	getMessage () const
State	getState () const
const dtn::core::Node &	getNode () const
Public Member Functions inherited from dtn::core::Event
virtual	~Event ()=0
virtual std::string	toString () const
bool	isLoggable () const

Static Public Member Functions
static void	raise (State, const dtn::core::Node &)

Static Public Attributes
static const string	className = "ConnectionEvent"

Additional Inherited Members
Public Attributes inherited from dtn::core::Event
const int	prio
Protected Member Functions inherited from dtn::core::Event
	Event (int prio=0)
void	setLoggable (bool val)

Detailed Description

Definition at line 33 of file ConnectionEvent.h.

Member Enumeration Documentation

enum dtn::net::ConnectionEvent::State

Enumerator
CONNECTION_SETUP
CONNECTION_UP
CONNECTION_DOWN
CONNECTION_TIMEOUT

Definition at line 36 of file ConnectionEvent.h.

Constructor & Destructor Documentation

dtn::net::ConnectionEvent::~ConnectionEvent ( )

virtual

Definition at line 35 of file ConnectionEvent.cpp.

Member Function Documentation

std::string dtn::net::ConnectionEvent::getMessage ( ) const

virtual

Get a describing message for this event

Implements dtn::core::Event.

Definition at line 52 of file ConnectionEvent.cpp.

References CONNECTION_DOWN, CONNECTION_SETUP, CONNECTION_TIMEOUT, CONNECTION_UP, dtn::core::Node::getEID(), and dtn::data::EID::getString().

Here is the call graph for this function:

const string dtn::net::ConnectionEvent::getName ( ) const

virtual

Get the name of this event.

Implements dtn::core::Event.

Definition at line 46 of file ConnectionEvent.cpp.

References className.

Referenced by dtn::api::EventConnection::raiseEvent().

const dtn::core::Node & dtn::net::ConnectionEvent::getNode

(

)

const

Definition at line 73 of file ConnectionEvent.cpp.

Referenced by dtn::api::EventConnection::raiseEvent(), dtn::net::ConnectionManager::raiseEvent(), and dtn::daemon::NativeDaemon::raiseEvent().

ConnectionEvent::State dtn::net::ConnectionEvent::getState

(

)

const

Definition at line 68 of file ConnectionEvent.cpp.

Referenced by dtn::api::EventConnection::raiseEvent(), dtn::net::ConnectionManager::raiseEvent(), and dtn::daemon::NativeDaemon::raiseEvent().

void dtn::net::ConnectionEvent::raise ( State  s, const dtn::core::Node &  n  )

static

Definition at line 40 of file ConnectionEvent.cpp.

References dtn::core::EventDispatcher< E >::queue().

Referenced by dtn::net::TCPConnection::eventConnectionDown(), dtn::net::TCPConnection::eventConnectionUp(), dtn::net::TCPConnection::eventTimeout(), dtn::net::TCPConvergenceLayer::open(), and dtn::net::TCPConvergenceLayer::queue().

Here is the call graph for this function:

Member Data Documentation

const string dtn::net::ConnectionEvent::className = "ConnectionEvent"

static

Definition at line 54 of file ConnectionEvent.h.

Referenced by getName().

---

The documentation for this class was generated from the following files:

• daemon/src/net/ConnectionEvent.h
• daemon/src/net/ConnectionEvent.cpp
